Specifications
leveler1.High flattening precise straightener
2.High efficiency Competitive price strightening line
3.Applied to CRS
2mm metal plates straightening machine
Main technical parameters of 2mm metal plates straightening machine :
a. applied to: cold rolled steels;
b. material quality: first class steel coils of the international standard;
c. width:1250mm(Max);
d. thickness: 0.2-2mm;
e. diameter of leveling rollers: φ55
f. distance of leveling rollers: 60mm,
g. material of leveling roller:GCr15,hardness:HRC58-60
Brife introducton of 2mm metal plates straightening machine:
2.It is composed of 19 leveling rollers, 2 groups of supporting rollers ,driving device and 2 pinch rollers and frame. Both sides of each rolling wheel is transmitted by needle pins all are the main force rollers. the total quantity of the rollers is 19, the diameter is φ55 and the distance between the rollers is 60mm, with supporting rollers. All the rollers are plating leather to protect the stainless steel plate surface is not wear.
3.The function of the supporting roller is to balance the leveling rollers force and reduce the friction to the rollers.
4.The working rollers can be adjusted the gap electrically which is controlled by 2 hand wheel to ensure the leveling quality.
5.Driving model: all the independent rollers and gear box are driven by 15Kw frequency control motor.

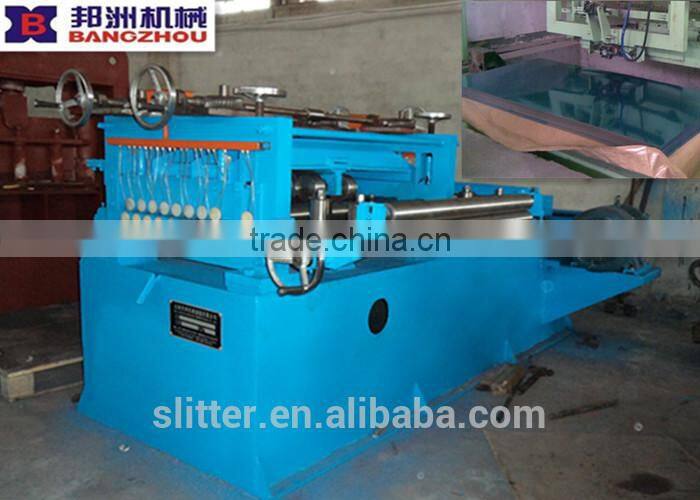

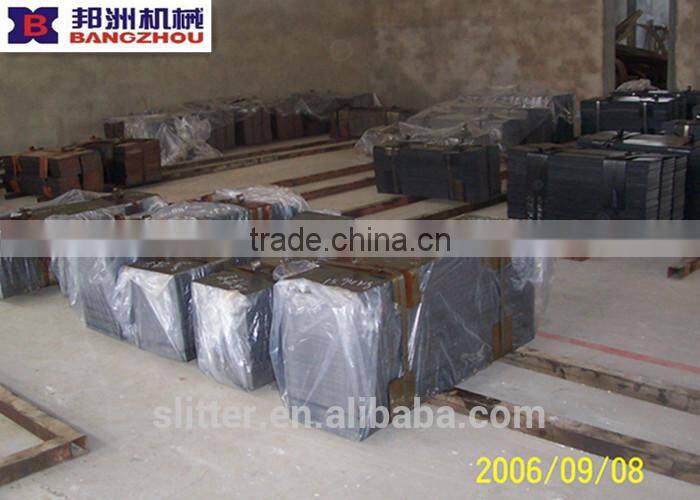

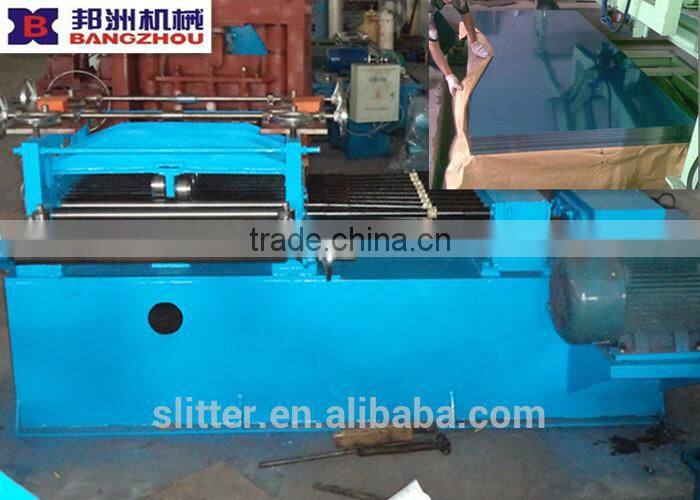

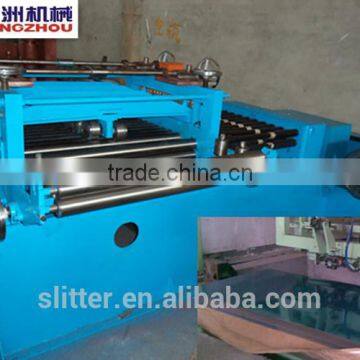

The pictures of 2mm metal plates straightening machine :
Our Advantages
1.we can do the designs according to the customers'requirement
2. We can give you the best suggestions to meet your machine requirements
3.we can offer you the high quality & reasionalble price
4.we can offer your a good after-sell service
5.we have strong professinal design and production team
6. promptly delivery. small order is welcome.
Welcome to our company like them
Why Wuxi Bangzhou ?
1), Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2), Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3), Q: How does your factory do regarding quality control?
A: Quality is priority. Wuxi Bangzhou People always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
4), Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name
components
5), Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. Wuxi Bangzhou is ALIBAB's Gold supplier with BV assessment. If you check with ALIBABA, you will see that we have never got any complaint from our customers.
Thank you for your visiting. Any questions, please feel free to contact us.
Our company is a manufacturer, welcome to our factory!!!
