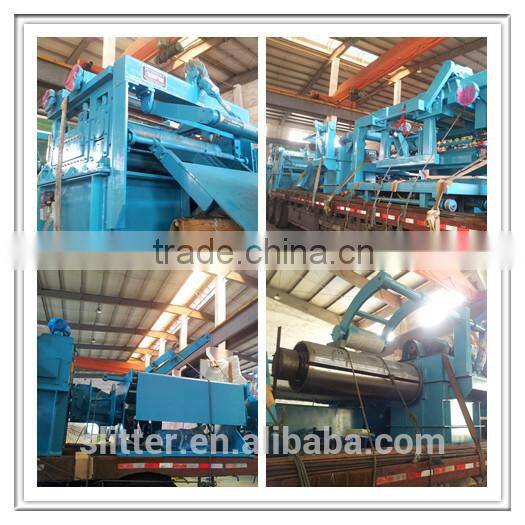

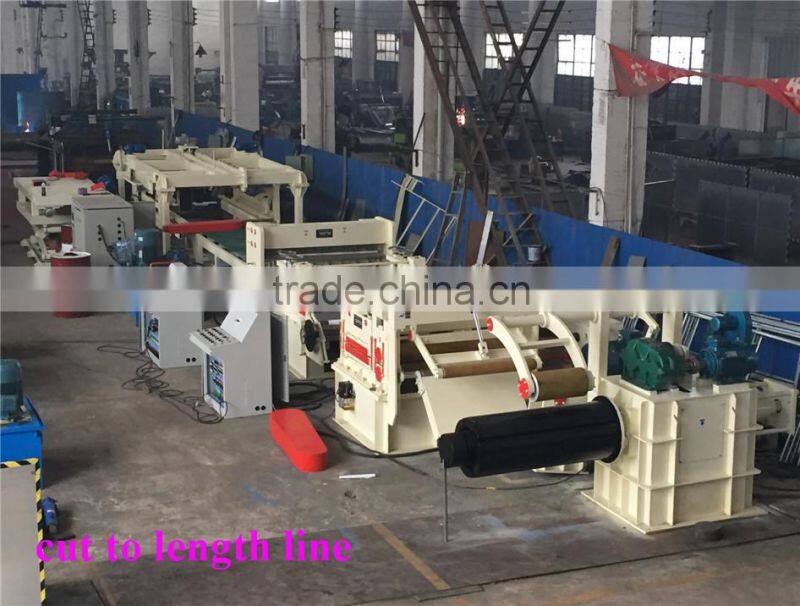

Aluminium Coil Leveling And Cutting Line
Technical parameters of Aluminium Coil Leveling And Cutting Line:
| 1. | application | Cold rolled steel coils, Aluminium coils |
| 2. | thickness of coiled steel | 0.3-3mm |
| 3. | with of coiled steel | 500-1600mm |
4. |
coil I.D. | 480-510mm |
| 5. | coil O.D. | ≤1800mm |
| 6. | diameter of leveling rollers | 65mm |
| 7. | the distance between leveling rollers | 70mm |
| 8. | material of leveling rollers | GCr15 |
| 9. | hardness of leveling rollers | HRC58°—60° |
| 10. | tolerance of diagonal error | ≤±0.2mm/1000mm |
| 11. | tolerance of length error | ≤±0.5mm/2000mm |
| 12. | line speed | 0-80m/min |
| 13. | loading capacity | 15tons |
| 14. | Power | 380V three-phase 50Hz |
| 15. | Size | 25mx6m |

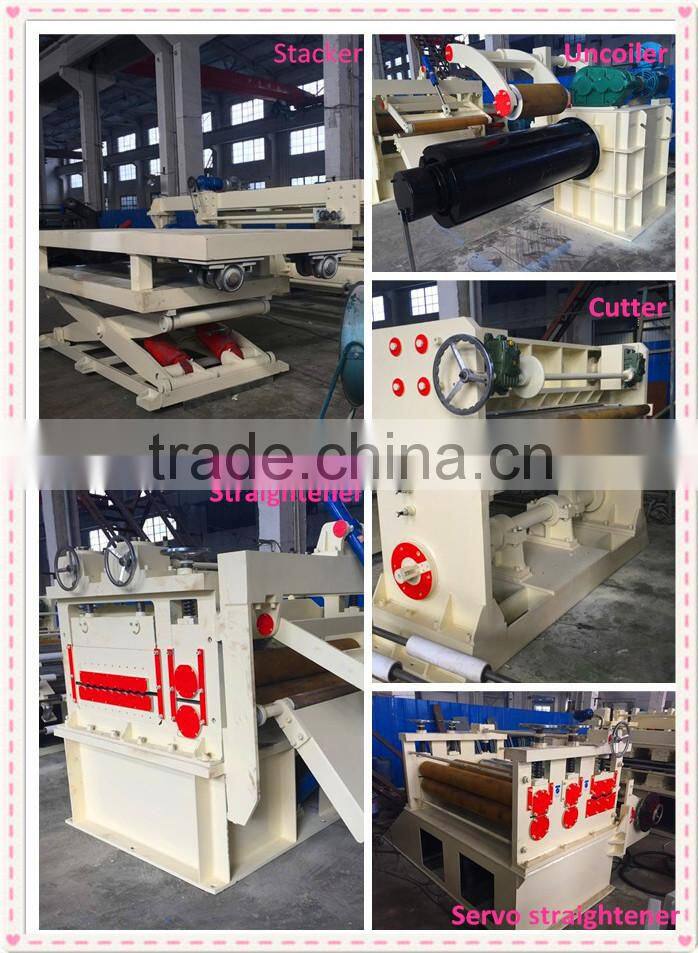

Composed device of Aluminium Coil Leveling And Cutting Line:
1. Hydraulic coil Car
2. Hydraulic de-coiler
3. Coil guide and pinch device
4. Straightener
5. Looper
6. Side guide device
7. Servo precise straightening machine
8. High speed shearing machine
9. Transportation table
10.Hydraulic lifting table
11. Pneumatic stacker device
12. Hydraulic unload car
13. Pneumatic system
14. Electrical control system
15. Hydraulic Control System

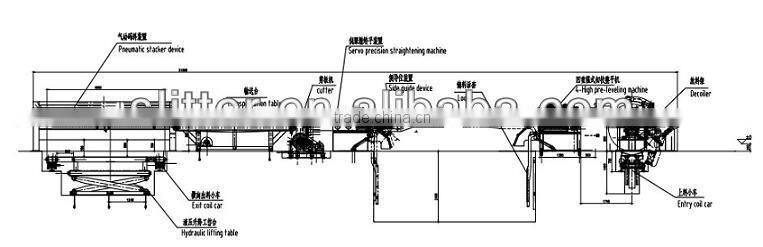

Sample layout of the Aluminium Coil Leveling And Cutting Line
Characteristics:
1. Automatic procedure which is very easy to operate
2. High speed can make the high output amount to maximize the cut to length line's function and value.
3. With the AC motors to make the whole line speed adjustable and easy to control.
1. Package: Machine devices will be Naked and all the roller parts will be antirust treatment to
protect the rollers. All the spare parts will be collected into the homemade steel boxes
2. Delivery: 100 days
3. Container: 1x40OT and 2x40GP
4. Shipping: All the parts in the containers will be strengthened with the container to prevent
the deveices from being slipped
*****Wuxi Bangzhou Machinery Manufacturing Co.,Ltd can design the machine as per your specific requirements.
*****We can help you to deliver the machiens to your country.
***** We can make the engineers available to install the machines for you and also teach your workers how to operate the machine and fix the problems with the machine.

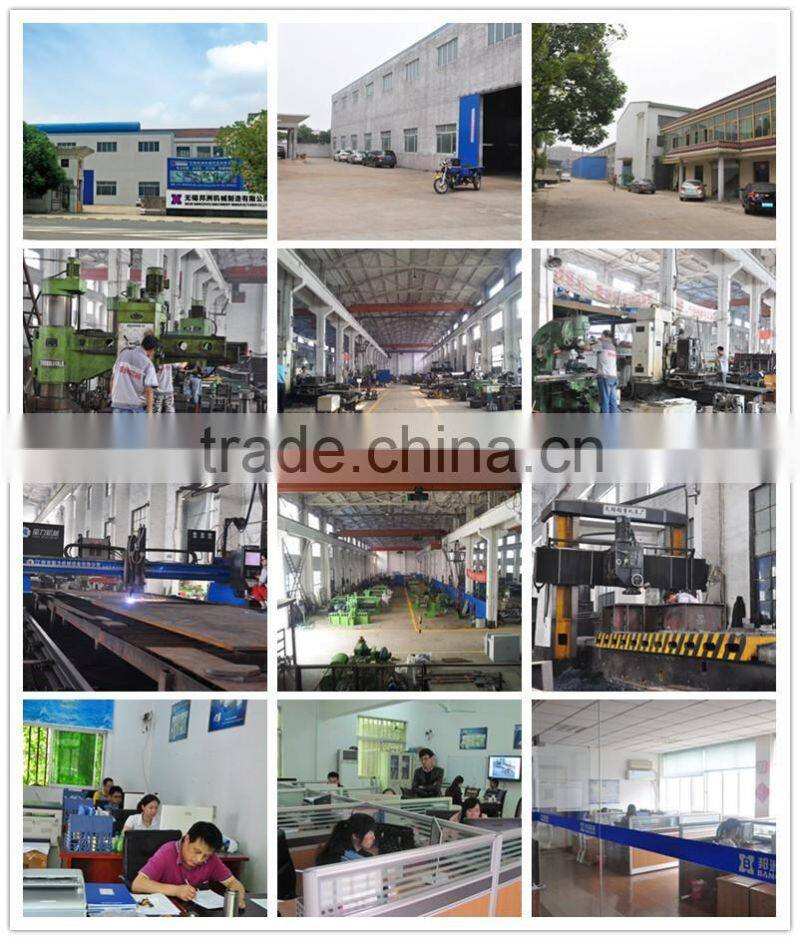

Wuxi Bangzhou Machinery Manufacturing Co., Ltd. is located in Changjing Industrial Park, Jiangyin, Wuxi with beautiful environment and very convenient transportation. We are one of the most professional machinery manufacturers in China, integrating design, production, sale and after-sales services.
Our main products are Steel coil slitting lines, cut to length lines, Straightening machines, Automatic crosscut units and Hydraulic shearing machines. Our products are supplied to cold rolling and pipe welding factories and our machine can be also applied to other industril field which connect to the metal material.
With our best service and machines' high quality,we have gained a great reputation in the field and our products are exported to many countries and regions, such as Southeast Asia, Europe, America and Africa.
We welcome all friends to visit us. We are sincerely looking forward to receive your guidance and business cooperation!
Welcome to our company, contact us, more details will send to you.
