SENTER ST800K-U Fiber Power Meter OPM Optical Power Meter Tester
ST800K-U Optical Power Meter
Brief introduction
With a wide range of functions, ST800K-U optical power meter is a powerful tool for use in fiber-optic installation and maintenance. Its rugged, durable construction makes it the perfect choice for a wide range of field applications.
ST800K-U Optical Power Meter can test optical power within the range of 800~1700nm wave length. There are 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, six kinds of wavelength calibration points. It can be used for linearity and non-linearity test and it can display both direct and relative test of optical power.
This meter can be widely used in the test of LAN, WAN, metropolitan network, CATV net or long-distance fiber net and other situations.
2. Functions
1) Multi-wavelength precise measurement
2) Absolute power measurement of dBm or μw
3) Relative power measurement of dB
4) Auto off function
5) 270, 330, 1K, 2KHz frequency light identification and indication
6) Low voltage indication
7) Automatic wavelength identification (with the help of light source)
8) Store 1000 groups of data
9) Upload test result by USB port
10) Real-time clock display
11) Output 650nm VFL

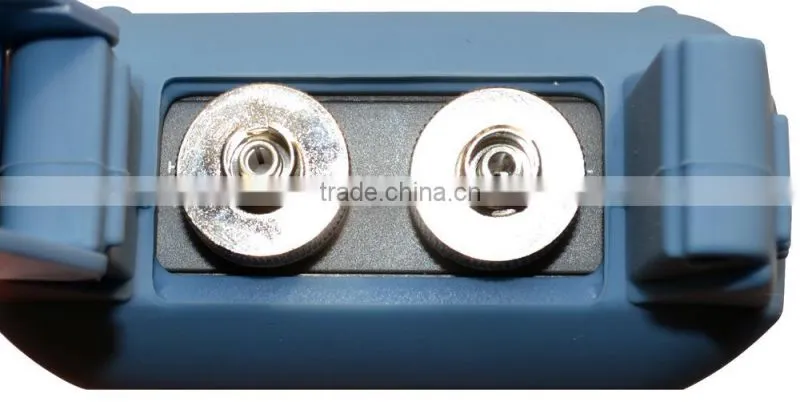

12) Applicable to versatile adapters (FC, ST, SC, LC)
13) Handheld, large LCD backlight display, easy-to-use
3. Specifications
Wavelength range (nm) |
800~1700 |
Detector type |
InGaAs |
Standard wavelength(nm) |
850, 1300, 1310, 1490, 1550, 1625 |
Power testing range (dBm) |
-50~+26 or -70~+10 |
Uncertainty |
±5% |
Resolution |
Linearity: 0.1%, Logarithm: 0.01dBm |
Storage Capacity |
1000 groups |
General specifications | |
Connectors |
FC, ST, SC, LC |
Working temperature (°C) |
-10~+50 |
Storage temperature (°C) |
-30~+60 |
Weight (g) |
430 (without batteries) |
Dimension (mm) |
200×90×43 |
Battery |
4 pcs AA batteries Or lithium battery |
Battery working duration(h) |
No less than 75 (according to battery volume) |
Auto power off time (min) |
10 |
Products of ST800K-U Optical Power Meter Series
Model No. |
Power test range(dBm) |
Adapter interface |
Battery |
Marks |
ST800K-UA |
-50~+26 |
FC,ST,SC |
Rechargeable Li-ion battery |
If you need Dry AA battery, inform us in advance. |
ST800K-UB |
-50~+26 |
FC,ST,SC,LC |
Rechargeable Li |
|
ST800K-UC |
-70~+10 |
FC,ST,SC |
Rechargeable Li |
|
ST800K-UD |
-70~+10 |
FC,ST,SC,LC |
Rechargeable Li |
Please tell us the model No. you need, and we can give you a proper price.
Contact us
We highly appreciate your any enquiry by email, or instant message ,
We will reply your email within 12 hours .
please feel free to call us at any time if there is any questions.
Transportation
All available shipping ways could be applied. by express,air .
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the items for you before the goods arrive
Certificates :
