Ftth Splicing Machine Fiber Optic fusion splicing machine for Cable splice
Summary:
ST3100 is new designed fiber splicing equipment. The powerful function and super low splicing loss make it be competent for construction of trunk line and FTTX: Because of the compact configuration and precise mechanism, it can adapt to execrable environment; the novel fiber imaging system make the image clearer and more exquisite; the real-time embedded OS provide friendly man-machine interface and abundant functions.
The built-in large capacity Li-Ion battery can support long-time fieldwork. The embedded sensors measured temperature, humidity and air pressure supply closed-loop feedback control, so the instrument can adopt all kinds of atrocious circumstance and the consistency of splicing loss was improved.
Main Features:
l5 inches high Resolution colorful LCD display
lAverage splice time: 10 second
lAverage tube-heat time: 30 second
lLithium battery: up to 180 times of continuous splice and heat
lSimultaneous X and Y views with 180 times magnification
lNew developed technology providing wind and dust resistance
lSplicing mode:Auto & Manual & Full-Automation
lUSB Port
lStoring 6,000 groups of splice results.
lMultipurpose optical fiber fixture (Such as: Rubber-insulated wire, fiber optic patch cord, bare fiber)
Specifications
Main Technical Parameter | |
Applicable Fiber |
SM, MM, NZ-DS, EDF ,Pigtail, Rubber-insulated wire Series |
Average Splicing Loss |
0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
Return Loss |
≥60dB |
Tension Test |
2.0N(200gf)(Standard) |
Splicing Program |
50 groups |
Protection Sleeve Length |
20mm, 40mm, 60mm |
Language |
Chinese, English |
Environmental Conditions |
-10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude) |
Power Supply |
AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) DC adaptor: 12V voltage 8AH |
Dimensions |
155(W)*165(D)*150(H) |
Weight |
2.5kg |

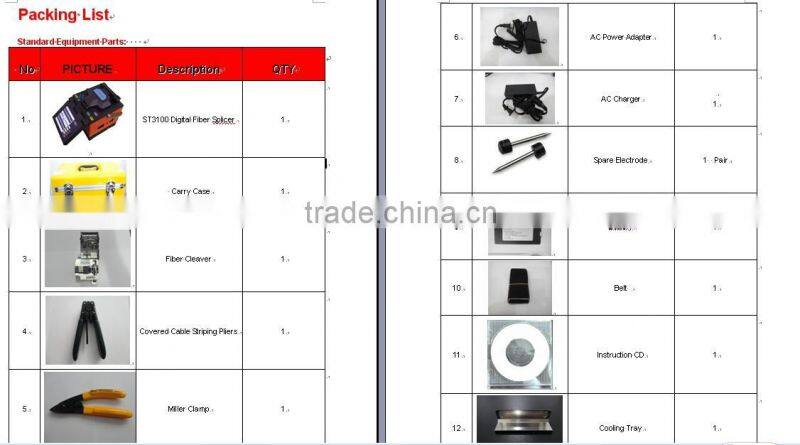

Packing List
Standard Equipment Parts:
No |
Description |
QTY |
1 |
ST3100B Digital Fiber Splicer |
1 |
2 |
Carry Case |
1 |
3 |
Fiber Cleaver |
1 |
4 |
Covered Cable Striping Pliers |
1 |
5 |
Miller Clamp |
1 |
6 |
AC Power Adapter |
1 |
7 |
AC Charger |
1 |
8 |
Spare Electrode |
1 Pair |
9 |
Battery |
1 |
10 |
Belt |
1 |
11 |
Instruction CD |
1 |
12 |
Cooling Tray |
1 |
