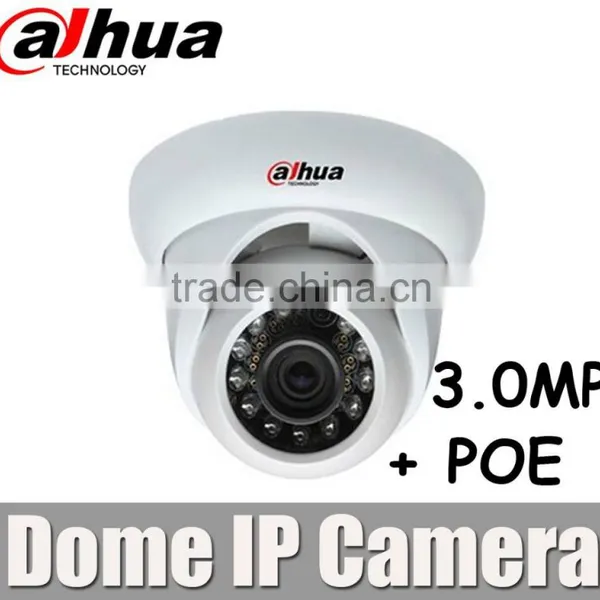

DAHUA 3MP IP IR Dome Camera 20M IR Distance IP66 IPC-HDW1320S,HDW1320S new model replace for HDW4300S
2 years warranty, as this is the new model instead of dahua IPC-HDW4300S,original dahua package and firmware upgrading.
Features:
1/3” 3Megapixel progressive scan Aptina CMOS
H.264 &MJPEG dual-stream encoding
Max 20fps/3.0M(2048×1536)&25/30fps/1080P(1920×1080)
DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC

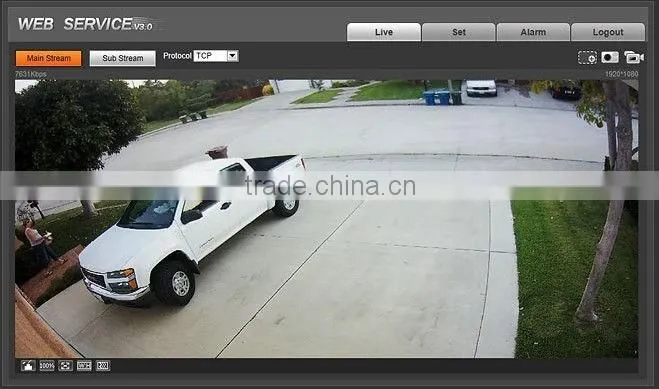

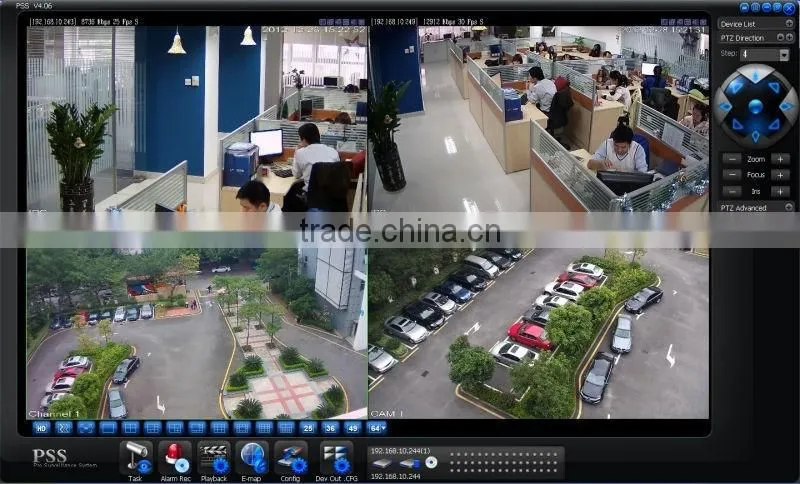

Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
3.6mm fixed lens (6mm optional)
Max. IR LEDs Length 20m
IP66, PoE
Specification
Model |
IPC-HDW1320SP |
IPC-HDW1320SN |
||
Camera | ||||
Image Sensor |
1/3” 3Megapixel Aptina CMOS |
|||
Effective Pixels |
2048(H)x1536(V) |
|||
Scanning System |
Progressive |
|||
Electronic Shutter Speed |
Auto/Manual, 1/3~1/10000s |
Auto/Manual, 1/4~1/10000s |
||
Min. Illumination |
0.01Lux/F1.2 (Color), 0.005Lux/F1.2(B/W); 0Lux/F1.2(IR on) |
|||
S/N Ratio |
More than 50dB |
|||
Video Output |
N/A |
|||
Camera Features | ||||
Max. IR LEDs Length |
20m |
|||
Day/Night |
Auto(ICR)/Color/B/W |
|||
Backlight Compensation |
BLC / HLC / DWDR |
|||
White Balance |
Auto/Manual |
|||
Gain Control |
Auto/Manual |
|||
Noise Reduction |
3D |
|||
Privacy Masking |
Up to 4 areas |
|||
Lens | ||||
Focal Length |
3.6mm (6mm) |
|||
Max Aperture |
F1.6 |
|||
Focus Control |
Manual |
|||
Angle of View |
H: 70°(46°) |
|||
Lens Type |
Fixed lens |
|||
Mount Type |
Board-in Type |
|||
Video | ||||
Compression |
H.264/ MJPEG |
|||
Resolution |
3.0M(2048×1536)/1080P(1920×1080) / 720P(1280×720) / |
3.0M(2048×1536)/1080P(1920 |
||
Frame Rate |
Main Stream |
3M(1~20fps)/1080P/720P(1 ~ 25/30fps) |
||
Sub Stream |
D1/CIF(1 ~ 25/30fps) |
|||
Bit Rate |
H.264: 32K ~ 8192Kbps |
|||
Audio | ||||
Compression |
N/A |
|||
Interface |
N/A |
|||
Network | ||||
Ethernet |
RJ-45 (10/100Base-T) |
|||
Wi-Fi |
N/A |
|||
Protocol |
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
|||
ONVIF |
ONVIF Profile S |
|||
Max. User Access |
20 users |
|||
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|||
Auxiliary Interface | ||||
Memory Slot |
N/A |
|||
RS485 |
N/A |
|||
Alarm |
N/A |
|||
PIR Sensor Range |
N/A |
|||
General | ||||
Power Supply |
DC12V, PoE (802.3af) |
|||
Power Consumption |
<5W |
|||
Working Environment |
-20°C~+60°C, Less than 95% RH |
|||
Ingress Protection |
IP66 |
|||
Vandal Resistance |
N/A |
|||
Dimensions |
Φ114mm×86mm |
|||
Weight |
0.4kg |
|||
Attention:
1. For retail DAHUA products, they will be without DAHUA logo by default. If you require DAHUA logo, please leave message to us when you place order. Please note that the delivery time of the products with DAHUA logo will take much longer(normally 20-30 working days) as the products we have in stock are all without DAHUA logo;
2. All the DAHUA products(except our own products) are with English version only; Most cameras on the market are Chinese not English.
3. Please leave message to let us know the format(PAL/NTSC) and the power standard of the DVRs or NVRs you buy in case any mistake;
4.All products are original DAHUA products, please feel free to buy it. Because this could help you escape the law risks in your country to selll them or install them.
5. We provide 1years warranty.
