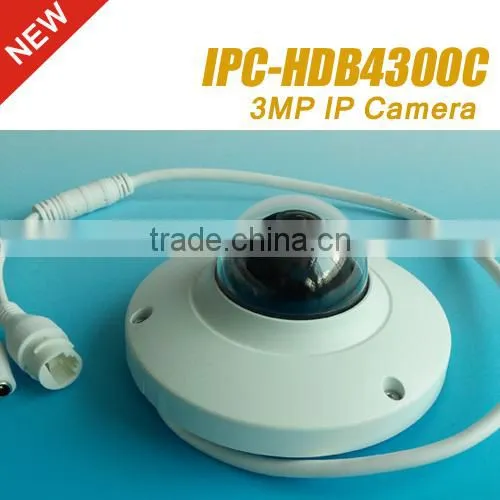

IPC-HDB4300C
Power supply:DC12V, PoE(802.3af)
• 1/3” 3Megapixel progressive scan Aptina CMOS
• H.264 & MJPEGdual-stream encoding
• Max 20fps3M(2048×1536), 25/30fps1080P
• Day/Night(Electronic), 3DNR, AWB,AGC,BLC
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
• 3.6mm fixed lens (2.8mm,6mm optional)
• IP66, IK10, PoE
Support Micro SD card up to 32GB
Specification:
Model |
DH-IPC-HDB4300CP |
|
|
Camera | |||
Image Sensor |
1/3” 3Megapixel Aptina CMOS |
||
Effective Pixels |
2048(H)x1536(V) |
||
Scanning System |
Progressive |
||
Electronic Shutter Speed |
Auto/Manual 1/3~1/10000 |
|
|
Min. Illumination |
0.01lux/F1.2(color) |
||
S/N Ratio |
>50db |
||
Camera Features | |||
Max. IR LEDs Length |
N/A |
||
Day/Night |
Auto(Electronic)/Color/B/W |
||
Backlight Compensation |
Off/BLC/HLC/DWDR |
||
White Balance |
Auto/Manual |
||
Gain Control |
Auto/Manual |
||
Noise Reduction |
3D |
||
Privacy Masking |
Up to 4 areas |
||
Lens | |||
Focal Length |
3.6mm (2.8mm,6mm optional) |
||
Max Aperture |
F1.8 |
||
Focus Control |
Fixed Lens |
||
Angle of View |
H:70°(97.24°/46°) |
||
Lens Type |
Fixed lens |
||
Mount Type |
Board-in Type |
||
Video | |||
Compression |
H.264/ MJPEG |
||
Resolution |
3.0M(2048×1536)/1080P(1920×1080) / 720P(1280×720) / |
|
|
Frame Rate |
Main Stream |
3M(1~20fps)/1080P/720P(1 ~ 25/30fps) |
|
Sub Stream |
D1/CIF(1 ~ 25/30fps) |
||
Bit Rate |
H.264: 32K ~ 8192Kbps |
||
Audio | |||
Compression |
N/A |
||
Interface |
N/A |
||
Network | |||
Ethernet |
RJ-45 (10/100Base-T) |
||
Wi-Fi |
N/A |
||
Protocol |
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
||
ONVIF |
ONVIF Profile S |
||
Max. User Access |
20 users |
||
Smart Phone |
iPhone, iPad, Android, Windows Phone |
||
Auxiliary Interface | |||
Memory Slot |
|
||
RS485 |
N/A |
||
Alarm |
N/A |
||
PIR Sensor Range |
N/A |
||
General | |||
Power Supply |
DC12V, PoE(802.3af) |
||
Power Consumption |
<3W |
||
Working Environment |
-20°C~+60°C, Less than 95% RH |
||
Ingress Protection |
IK10 |
||
Vandal Resistance |
IP66 |
||
Dimensions |
Φ110mm×54mm |
||
Weight |
0.25kg |
||

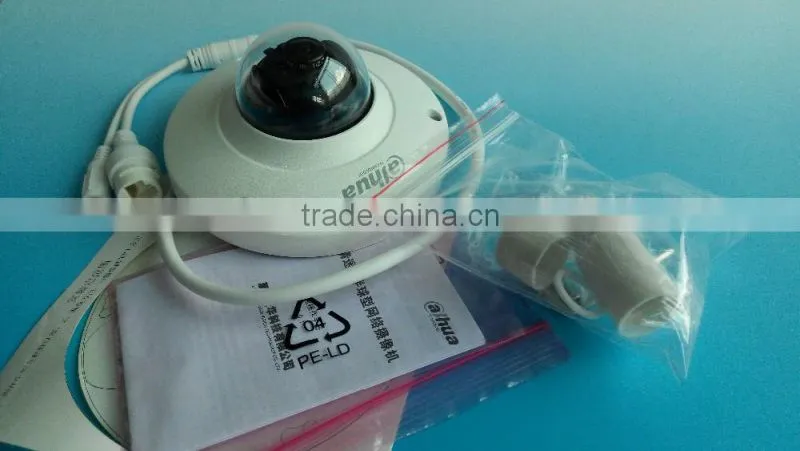

Package
IP CameraX1 (3.6mm lens or 2.8mm lens randomly sent if you don't have specific request)
CD X1
Power supply not included
