Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > Dahua IPC-HDW4300C Built-in MIC IR HD 1080p IP Camera 3MP IR Security Cctv Dome Camera Support POE HDW4300C

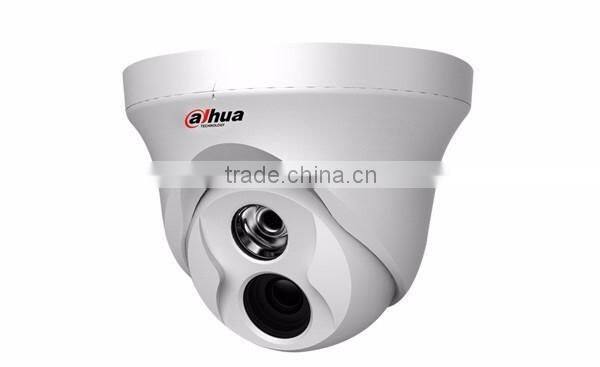

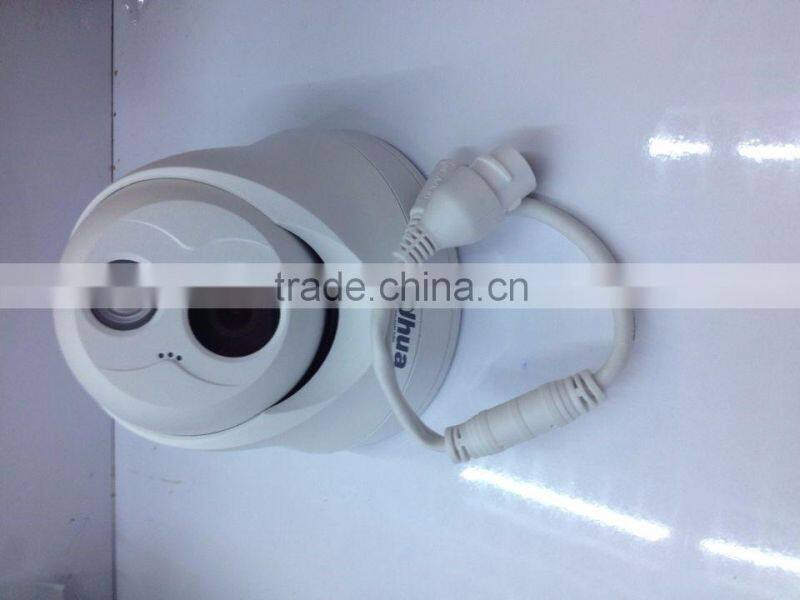

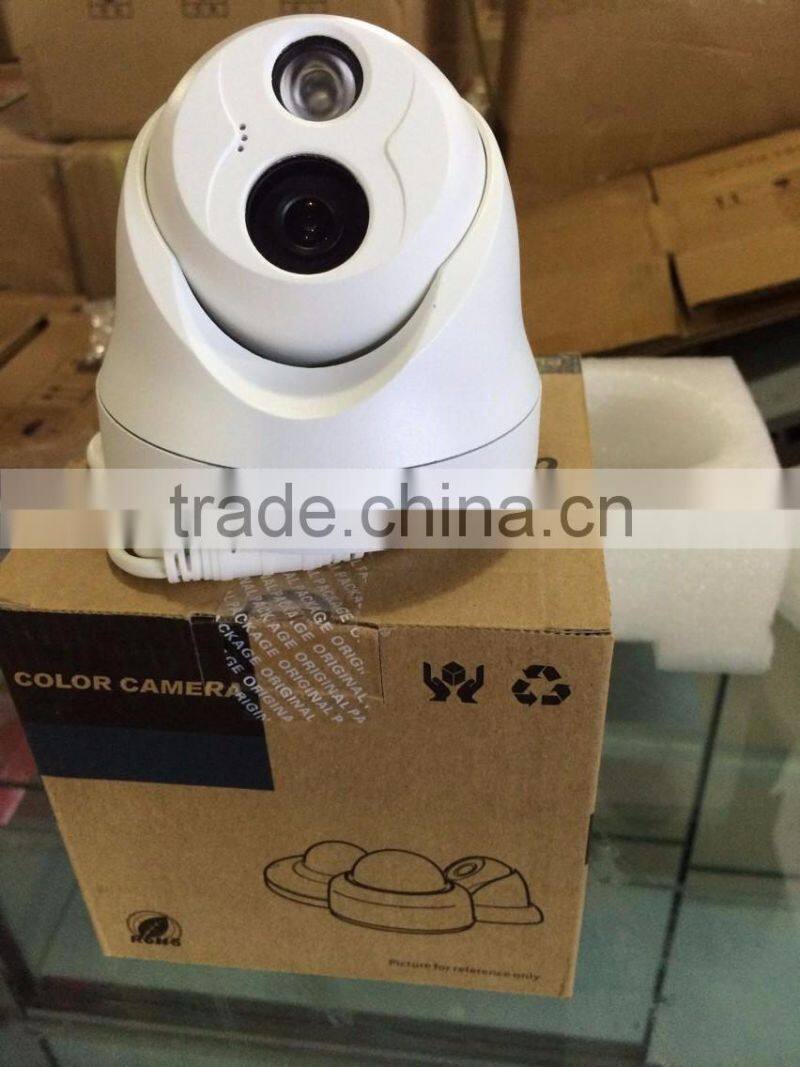

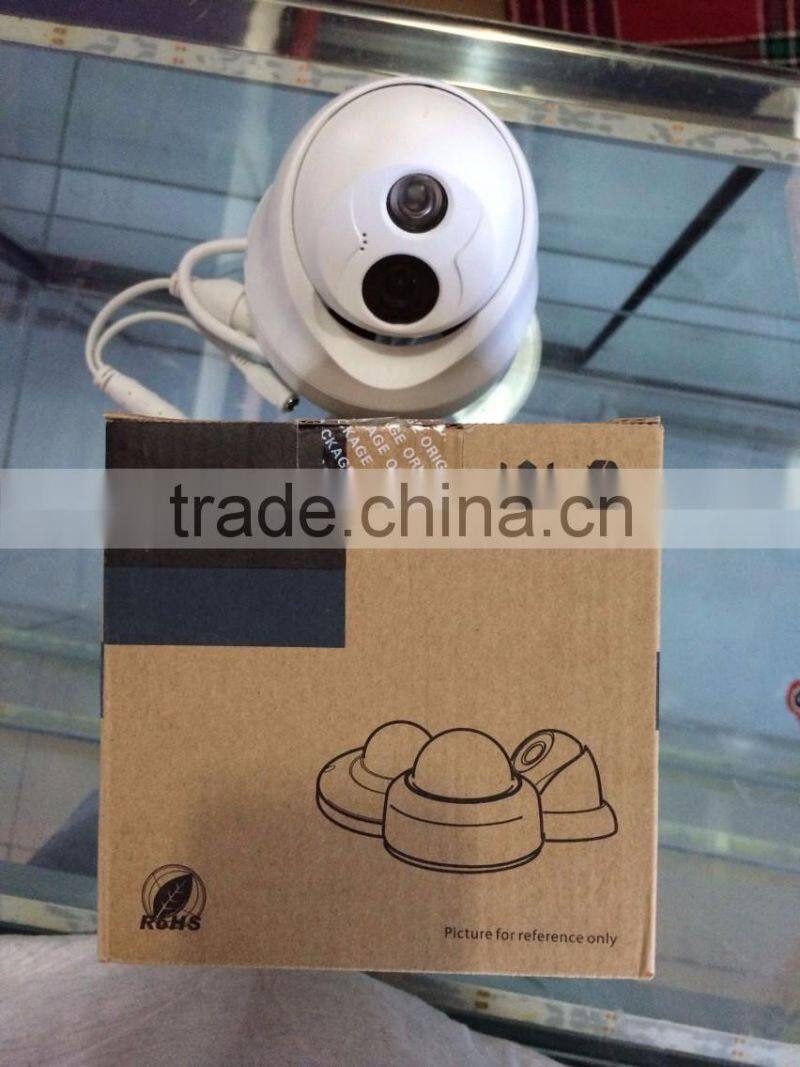

Dahua IPC-HDW4300C Built-in MIC IR HD 1080p IP Camera 3MP IR Security Cctv Dome Camera Support POE HDW4300C

Name: Dahua IPC-HDW4300C Built-in MIC IR HD 1080p IP Camera 3MP IR Security Cctv Dome Camera Support POE HDW4300C
Brand: Dahua
SKU: 126623071
Availability: InStock

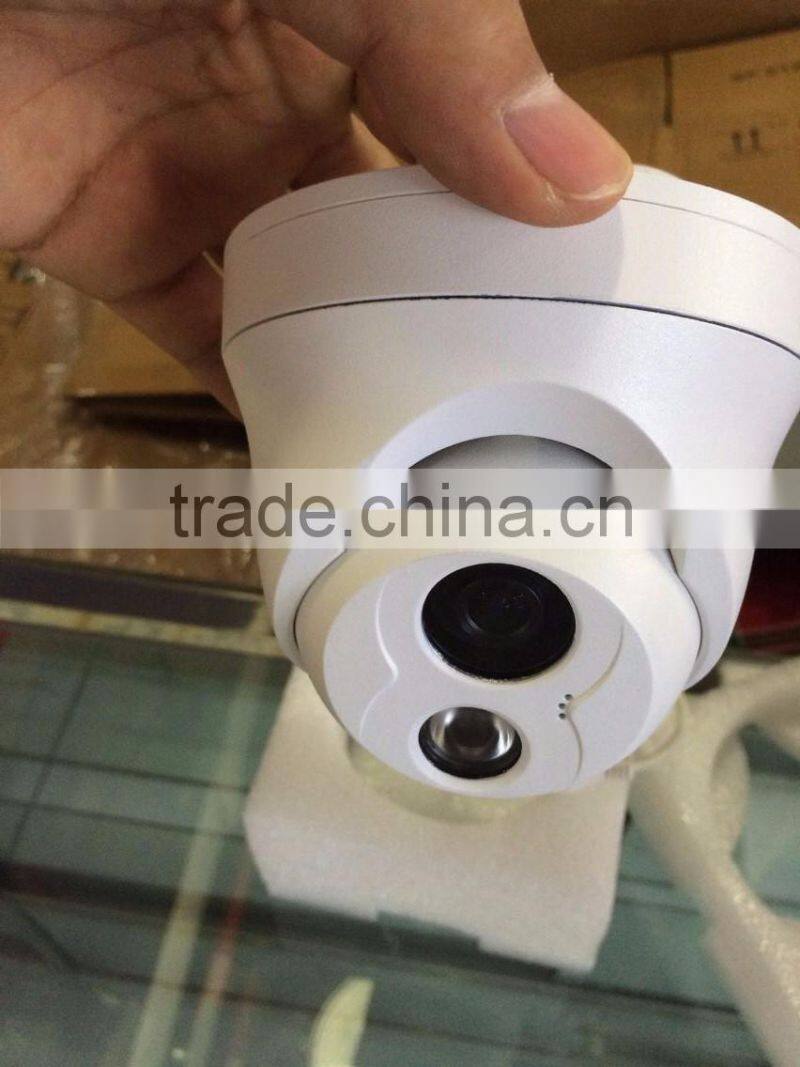

Dahua IPC-HDW4300C Built-in MIC IR HD 1080p IP Camera 3MP IR Security Cctv Dome Camera Support POE HDW4300C thumbnail-1

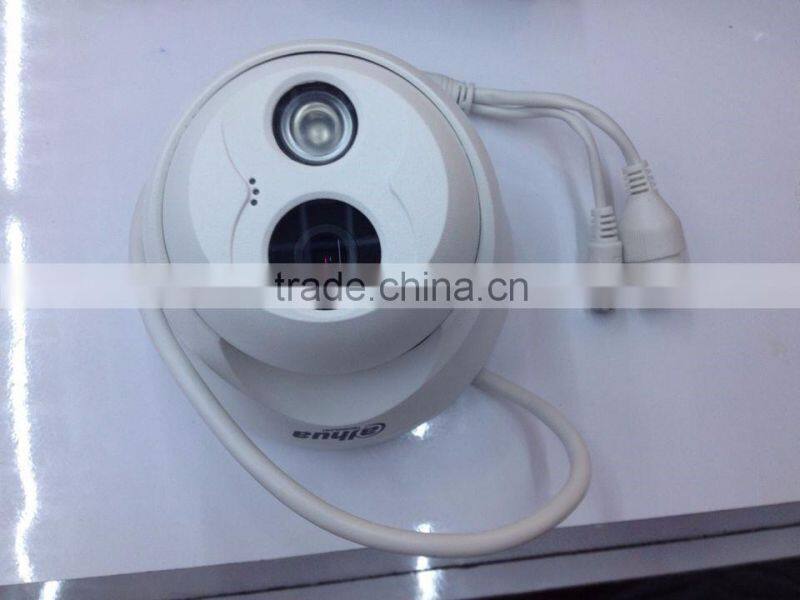

Dahua IPC-HDW4300C Built-in MIC IR HD 1080p IP Camera 3MP IR Security Cctv Dome Camera Support POE HDW4300C photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Dahua

Model Number:

IPC-HDW4300C

Contact Supplier Request Quote Chat Now

Shenzhen Obdo Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Dahua

Model Number IPC-HDW4300C

Type IP Camera

Style Dome Camera

Sensor CMOS

Technology Infrared

Special Features Waterproof / Weatherproof

NOTE :TVL not refers to the resolution of the camera, it is used to distinguish the camera lens size!

380TVL=2.8 mm lens

480TVL=3.6 mm lens

600TVL=6mm lens

800TVL=8mm lens

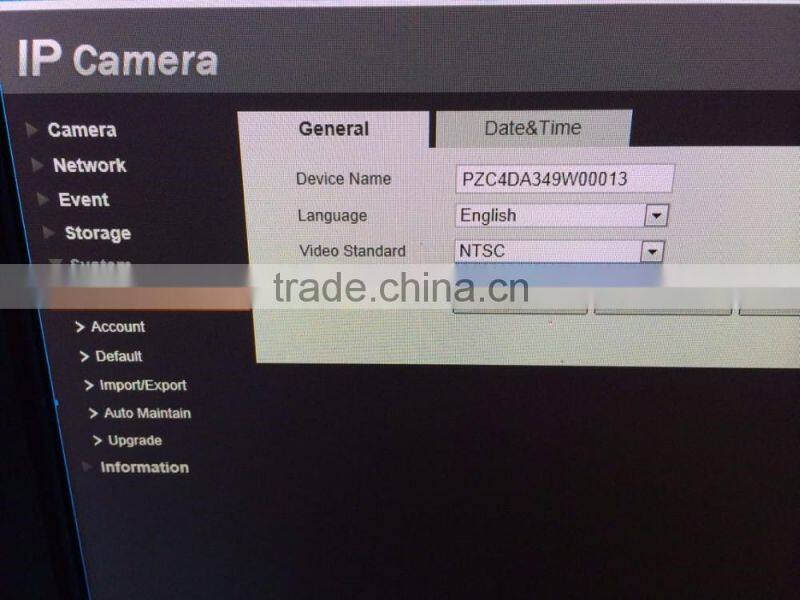

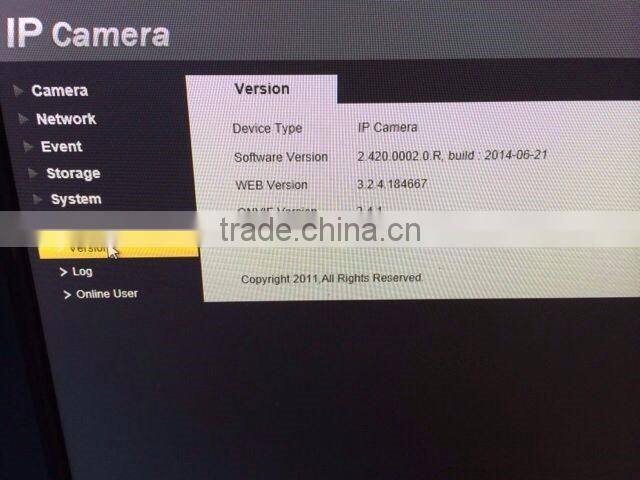

We have 2.8mm and 3.6mm and 6mm and 8mm ,four types of lens size specifications for this camera English firmware PAL /NTSC system huge stocks!

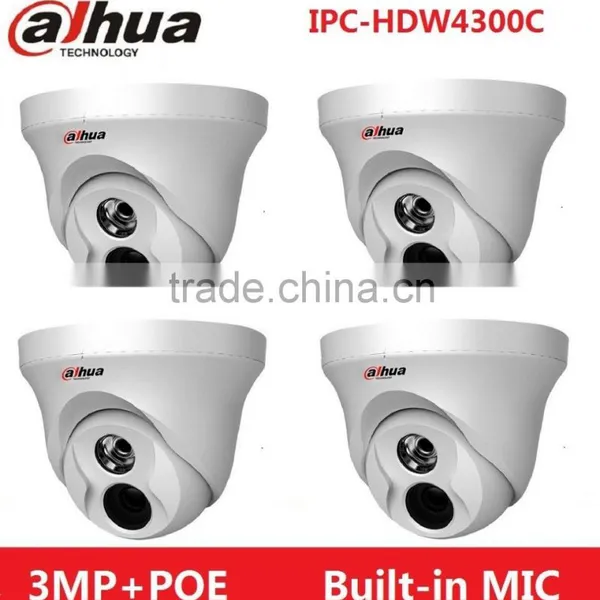

ITEM NO.: Original dahua DH-IPC-HDW4300C camera

Product overview

1/3” 3Megapixel progressive scan Aptina CMOS

H.264 & MJPEG dual-stream encoding

Max 20fps3M(2048x1536), 25/30fps1080P(1920×1080)

DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC

Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

3.6mm fixed lens (2.8mm, 6mm, 8mm optional)

Max. IR LEDs Length 30m

IP66, IK10, PoE

Technical parameters

Model		DH-IPC-HDW4300C
Camera
Image Sensor		1/3” 3Megapixel progressive scan CMOS
Effective Pixels		2052(H)x1536(V)
Scanning System		Progressive
Electronic Shutter Speed		Auto/Manual, 1/3(4)~1/10000s
Min. Illumination		0. 01Lux/F1.2 (Color), 0.005Lux/F1.2(B/W);0Lux/F1.2(IR on)
S/N Ratio		More than 50dB
Video Output		N/A
Camera Features
Max. IR LEDs Length		30m
Day/Night		Auto(ICR)/Color/B/W
Backlight Compensation		BLC / HLC / DWDR
White Balance		Auto
Gain Control		Auto/Manual
Noise Reduction		3D
Privacy Masking		Up to 4 areas
Lens
Focal Length		3.6mm (2.8mm, 6mm, 8mm optional)
Max Aperture		F1.8 (F2.0, F1.6/F1.6)
Focus Control		Manual
Angle of View		H: 72.5° (90°, 44°, 33.2°)
Lens Type		Fixed lens
Mount Type		Board-in Type
Video
Compression		H.264 / MJPEG
Resolution		3M(2048´1536)/ 1080P(1920×1080)/ 720P(1280×720)/ D1(704×576/704×480)/ CIF(352×288/352×240)
Frame Rate	Main Stream	3M(1~20fps)/1080P/720P(1 ~ 25/30fps)
	Sub Stream	D1(1~20fps)/CIF(1 ~ 25/30fps)
Bit Rate		H.264: 56K ~ 8192Kbps
Audio
Compression		G.711a/G.711u/PCM
Interface		Built-in MIC
Network
Ethernet		RJ-45 (10/100Base-T)
Wi-Fi		N/A
Protocol		IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF		ONVIF Profile S
Max. User Access		20 users
Smart Phone		iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot		N/A
RS485		N/A
Alarm		N/A
PIR Sensor Range		N/A
General
Power Supply		DC12V, PoE (802.3af)
Power Consumption		Max 4.5W
Working Environment		-20°C~+60°C, Less than 95%RH
Ingress Protection		IP66
Vandal Resistance		IK10

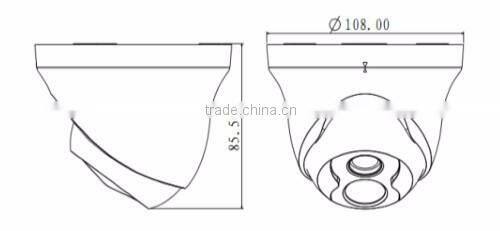

Dimensions		Φ107.9mm×84.1mm
Weight		0.4kg
