Product Details
Condition: | New | Type: | Die-cutting Machine | Computerized: | Yes |
Place of Origin: | Zhejiang, China | Brand Name: | Xiaohai | Model Number: | ZM-320 sticker cutting machine |
Voltage: | 380V | Warranty: | One year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1. Sticker cutting machineis used for cutting the label on all kinds of adhesive tapes.2. From roll label to sheet
♣ sticker cutting machine
Performance and Features:

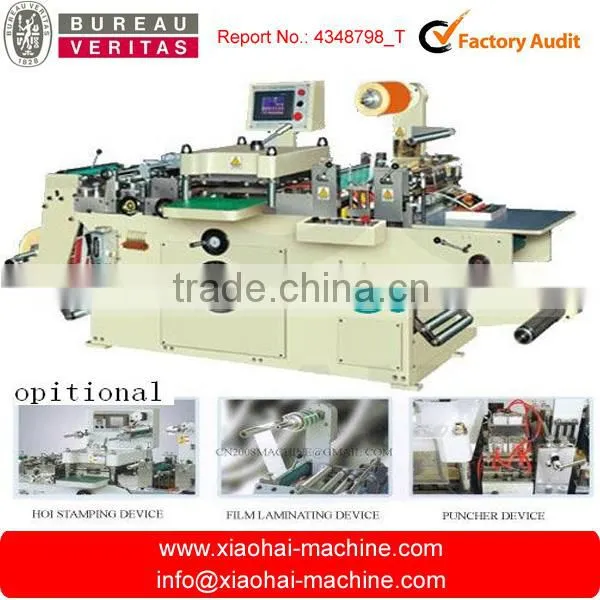

1. ZM-320 rotary/semi-rotary label die-cutting machine is new developed converting machine equips with inline slitter.
2. This machine adopts latest Rexrtoh-Bosch (Germany) servo and control system, include: unwinder, web-guider, lamination, register die-cutter, slitter and rewinder.
3. The register die-cutting system is our patent product, it can be full rotary or semi-rotary die-cutter according to the production requirement.
4. When semi-rotary die-cutter, the tension among unwinder, web-guider and rewinder will be the same (different from traditional intermittent type), the material will not run away during the die-cut.
5. Semi-rotary die-cutting unit adopts one big magnetic cylinder, if you have different applications, the only job is to change the flexible die.
6. ZM-320 machine has the characteristic of fast speed, super accurate, easy operation, high efficiency and less cost. It’s good for all kind of label die-cutting jobs, include shrot run to long run.
7. If the job is large quantity, then you can change the magnetic roller acccordingly, it will highly increase the die-cutting quality and output.
8. ZM-320 rotary/semi-rotary label die-cutting machine committes to make the maximum profit for you, it’s an ideal converting machine for the printing house.
Specification:
Max die-cutting speed (rotary): | 120m/min |
Max die-cutting speed (semi-rotary): | 65m/min |
Max die-cutting length (rotary): | 190.5-539.75mm |
Max die-cutting length (semi-rotay): | 100-350mm |
Max die-cutting width: | 300mm |
Max web width: | 320mm |
Max unwinder dia.: | 700mm |
Max. rewinder dia.: | 600mm |
Die-cutting accuracy: | +-0.1mm |
Slitting width: | >=20mm |
Power supply: | 380V 3P |
Weight: | 2400Kg |
Dimension: | 3.22x1.68x1.66m |
Remark: The machine also can be equipped with UV,just inform us how many UV you want.Also you can let us your requirement on the machine,we will quote you on your demands.
PS: label printing machinery/label(logo) flexo printing machinery/stack type flexographic printing machinery |
