1.bag sealing machine can make die cutting bag,soft loop handle bag,t-shirt bag2.with step motor,computer control
···············································································

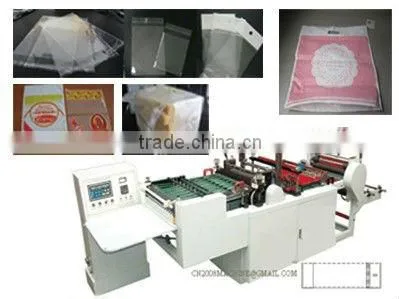

Bag sealing machine
···············································································
Usage:
1.Plastic bag making machine is suitable for sealing and cutting HDPE, LDPE and PP plastic film.It is one of the best equipment for producing plastic unprinted and printed T-shirt bag,flat bag, rolling bag, garbage bag, laundry bag, etc.
2.The machine is equipped with computer to set the bag length and batch etc.to make the bag automaticlly,also the machine is with photocell, automatic material feeding device,automatic constant temperature control device, electrostatic removing device,automatic counting and alarm device etc.It's easy operation, stable performance and with high producing speed. The machine is the most economical and suitable sealing and cutting bag-making machine for large, middle and small size soft packing enterprises.
Specification:

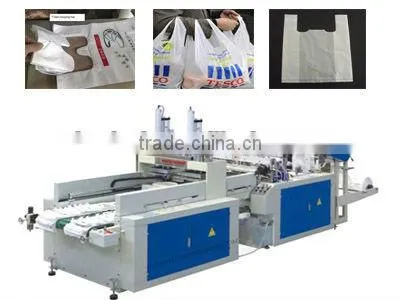

DZC Series Computer Control Full Automatic T-Shirt Bag Making Machine
This machine is special for making unprinted or printed T-shirt bag.The machine finish the feeding, sealing, cutting, punching and transporting only in one process.
Model No. | DZC-500 | DZC-600 | DZC-700 | DZC-800 |
Max.Width of Sealing & Cutting | 450mm | 550mm | 650mm | 750mm |
Length of Sealing & Cutting | 950mm | 950mm | 950mm | 1000mm |
Speed of Bag-making | 40~120pcs/min | 40~120pcs/min | 40~120pcs/min | 40~120pcs/min |
Power of Main Motor | 1.1kw | 1.1kw | 1.5kw | 1.8kw |
Weight of Machine | 800kg | 850kg | 900kg | 1000kg |
Dimension(mm) | 4200×1200×1550 | 4200×1350×1550 | 4200×1450×1550 | 4400×1550×1600 |

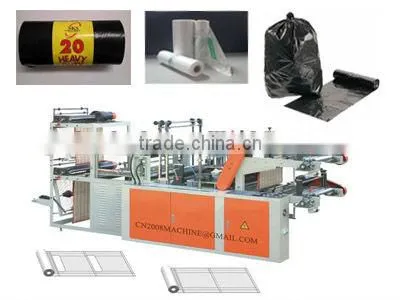

DZB Series Computer Control Double Layer T-Shirt And Flat Bag On Roll Bag Making Machine
This machine is special for making unprinted or printed T-shirt bag or flat-open bag or garbage on roll.
Model No. | DZB-400 | DZB-500 | DZB-600 |
Max.Width of Sealing & Cutting | 400mm | 500mm | 600mm |
Length of Sealing & Cutting | 100-1000mm | 100-1000mm | 100-1000mm |
Speed of Bag-making | 40~120pcs/min | 40~120pcs/min | 40~120pcs/min |
Power of Main Motor | 1.1kw | 1.1kw | 1.5kw |
Weight of Machine | 800kg | 850kg | 900kg |
Dimension(mm) | 3300×1100×1500 | 3300×1200×1500 | 3300×1300×1500 |
RFQ series Computer Control Side Heat Sealing And Heating Cutting Bag Making Machine
This machine is suitable for side heat sealing and cutting,It is a kind of ideal machine to make BOPP ,OPP,PP,PE material's socks bag,towel bag,bread bag,ornament bag etc pakcing bag.
Model No. | RFQ-400 | RFQ-500 | RFQ-600 |
Width of Bag Making | 30-400mm | 30-500mm | 60-600mm |
Length of Bag Making | 25-500mm | 45-600mm | 50-700mm |
Speed of Bag Making | 30-240pcs/min | 30-240pcs/min | 30-240pcs/min |
Accuracy | ±0.3mm | ±0.3mm | ±0.3mm |
Power | 3.5kw | 3.5kw | 4kw |
Weight | 600kg | 700kg | 800kg |
Machine Dimension(mm) | 3500x900x1300 | 3500x1000x1300 | 3500x1100x1300 |

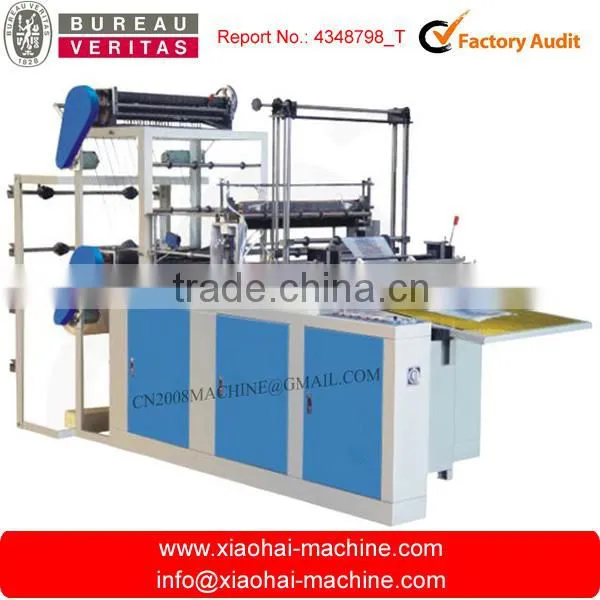

SHXJ-B series Computer Control Double Layer Heat Sealing And Cold Cutting Bag Making Machine
This machine is suitable for sealing and cutting HDPE, LDPE and PP plastic film.It is one of the best equipment for producing plastic unprinted and printed T-shirt bag and flat bag.

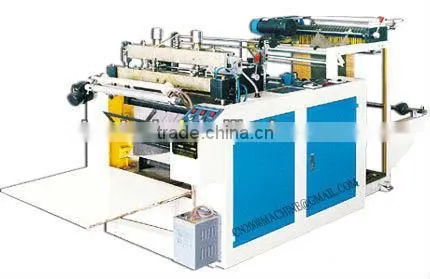

DFR Series Computer Control Heating Sealing And Heat Cutting Bag Making Machine
(This machine is used to make t-shirt bag.)
This machine is special for making unprinted or printed T-shirt bag.The bag is with strong butttom sealing for heavy duty packing.

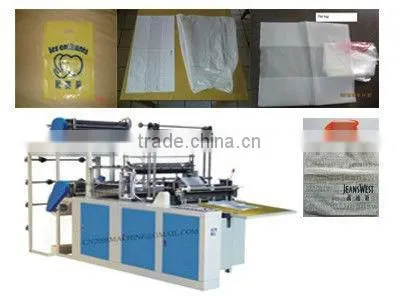

RT Series Computer Control Soft Loop Handle Bag Making Machine
Usage:
1.This machine is suitable for making soft loop handle bag.
2.This machine is equipped with two unwinders,the cutting width is the length of the soft loop handle.It is also with computer control to set the bag length and batch etc.
X 625 Hydraulic Type Punching Machine
It is used to punching the shape of the T-shirt bag,hole bag,thin leather.You can punch all kinds of design of the bag by changing the punching knife.
Remark:
We also have wider width machine,if you want to make wider width film,please feel free to contact us,we will provide you details.thanks.

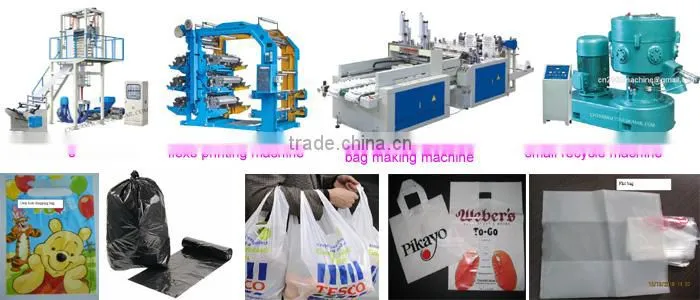

Production Line:
