Specifications
Automatic case making machine for album cover1. Easy operation
2.Low power consumption
3. Fully Automatic,High efficiency
Automatic case making machine for album cover
1. Features:
High Speed Hard Cover Machine is specialized for producing hard covers, such as book cover,
bookcase, notebook & diary, desk calendar, gift box, mobile phone box, photo album, bible and
lever arch file....etc.
2. Advantages:
1Automatically finish gluing cover, setting positon and cladding for two grey boards and center
paper board.
2)Adopt OMRON PLC, frequency control system
3It is controlled totally by computer and the touch screen will display machine working parameters
and error directly.
4) Safe protection warning
5)Adopt Taiwan BBM motor,.Taiwan EDLEY inverter
6)Equipped with Automatic feeder adjusting device and Irregular board size device.
3.Technical Parameters:
Max Cover Size |
680*400mm |
Min Cover Size |
150*100mm (For special size:100x85mm) |
Bag Width |
70-260mm |
Speed |
10~36 pcs/min |
Power |
10.4kw |
Max board quantity |
7 pcs |
Center board width |
5-100mm |
Center board thickness |
0.3-1mm |
Gutter Width |
3-17mm |
Flaps Bending Width |
7-14mm |
Board thickness |
0.8-5mm |
Sponge Matted Boards thickness |
1-8mm |
Machine weight |
4500kg |
Machine Dimension |
3500mmx3500mmx2000mm |

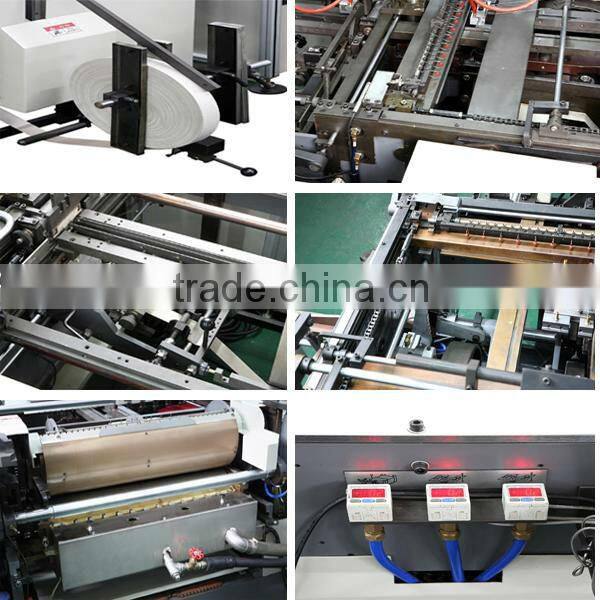

4.Machine Pictures:

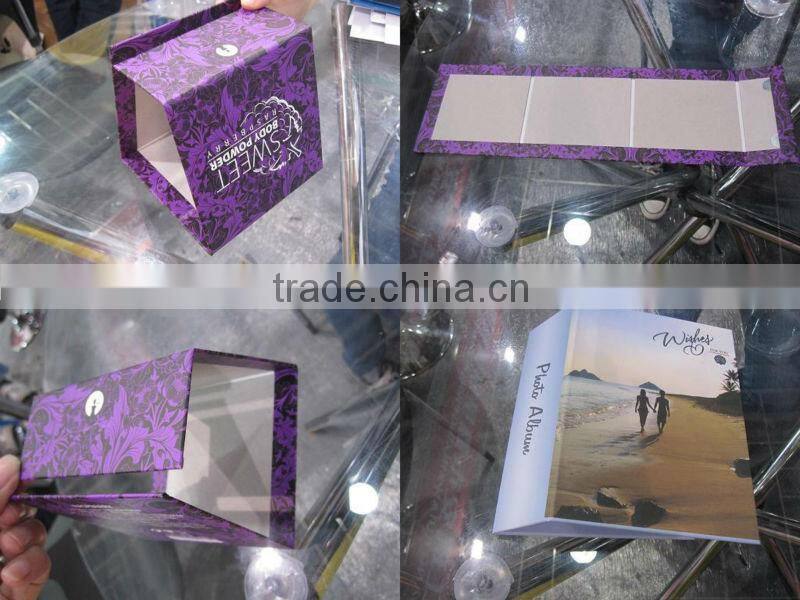

5 Sample Pictures:
6. Machine Package Pictures:
We are specializing in making paper bag making production line, including paper bag making
machine, flexo printing machine, rope making machine and handling making machine etc.
We have both paper bag making machine with roll feeder and sheet feeder.
1. Factory Show:
2. Certificates
3. Advantages&Service
1 We have several senior engineers service in many countries, all the year round with our after-sales office in multiple countries.
2 Machines with good quality in one year, life-long maintenance.
3 We have many machines can be monitored via the Internet, solve customer requirements in a timely manner.
4 We have several senior,continuous innovation and reform, in order to ensure the quality of mechanical stability.
5 Undertake various non-standard machinery, solve the customers' requirements.
4. Contact Information:
Regarding this High Efficiency Paper Bag Making Machine,
any further information can feel free to contact Jenny.
Contact Person: Jenny Xu
Skype: paperbagmachine
Mobile:+86-15167722977 Tel:+86-577-256933332
Add:Shangwang Industrial, Ruian city, Zhejiang province, China
