Specifications
paper bag folding gluing machine1. Bag width: 70--270mm
2. Bag Length:160--420mm
3. Paper Thickness:40--80gsm
CY400 paper bag making machine manufacturer
Machine working video: http://youtu.be/Cz68R1FcWUg (please copy)
All paper bag making machine working video:
/playlist?list=PLnDMbEqgt27xor_FtBV1TrKtM_gbygOTT
(please copy)
1. Features:
This Paper Bag Making Machine can make paper bags in one process from roll paper,
edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag.
It is an ideal machine for producing Sharp Bottom food bags like bread bags, KFC bags and McDonald's bags etc.
2. Advantages:
1)Suited for 40-80gsm paper.
2)Controls bag length through the human-machine interface.
3)PLC system for calculating parameters.
4)Equipped with an accurate photocell system.
5) Color mark error automatic alarming and stopping system
3.Technical Parameters:
| Paper Weight | 40--80gsm |
| Bag Width | 70--260mm |
| Bag Length | 160--420mm |
| The Width of paper roll | 260--720mm |
| Speed | 100--400pcs/min |
| Side Guesset | 0--80mm |
| Total Power | 10kw |
| Power Voltage | 380v,50/60hz,3phases |
| Machine weight | 2500kg |
| Machine Dimension | 4100*2100*1900mm |

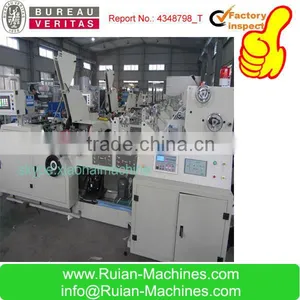

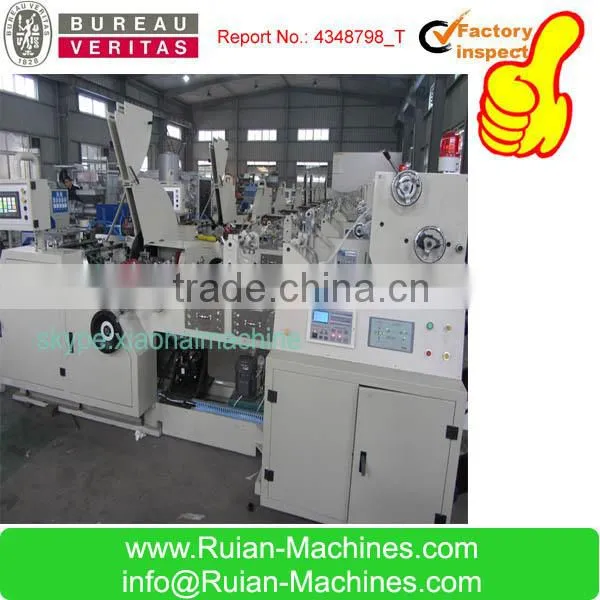

4.Machine Pictures:
5.Machine Pictures:
Our engineer can be available to service machinery overseas.
1)We have several senior engineers service in many countries, all the year round with our after-sales office in multiple countries
2)Machines with good quality in one year, life-long maintenance
3)We have many machines can be monitored via the Internet, solve customer requirements in a timely manner.
4)We have several senior,continuous innovation and reform, in order to ensure the quality of mechanical stability.
5)Undertake various non-standard machinery, solve the customers' requirements.
PAPER BAG MAKING MACHINE
We are specializing in making paper bag making production line, including paper bag making machine, flexo printing machine, rope making machine and handling making machine etc.
We have both paper bag making machine with roll feeder and sheet feeder.
