Automatic High Speed Paper Bag Sewing Machinery With Printing Function

Specifications

1.Automatic High Speed Paper Bag Sewing Machinery With Printing Function
2.Easy operation
3.Low power consumption
4.CE

Automatic High Speed Paper Bag Sewing Machinery With Printing Function

1. Features:
Paper Bag Making Machine can make paper bags in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag.
It is an ideal machine for producing Sharp Bottom food bags like bread bags, KFC bags and Mcdonald's bags etc.



2. Advantages:

1)Suited for 40-80gsm paper.
2)Controls bag length through the human-machine interface.
3)PLC system for calculating parameters.
4)Equipped with an accurate photocell system.

5)Color mark error automatic alarming and stopping system

6)Automatic oil lubrication system and Automatic counting system



3.Technical Parameters:

Paper Weight	40-80g/m2
Bag Length	160-420mm
Bag Width	70-260mm
The width of paper roll	260-720mm
Speed	100-400pcs/min
Total Power	10kw
Power Voltage	380v,50/60 HZ, 3 phases
Total Weight	2500kg
Machine Dimension(L*W*H)	4000*2100*1900mm









































4.Configuration Brand and details:

Name and  Specification	Quantity	Brand of Country
Servo Motor	two sets	Janpan
PLC	1pc	Taiwan
Touch Screen	1pc	Taiwan
Photo-cell	2 pcs	Germany
Web Edge Control(EPC)	1pc	China
Frequency Converter(Inverter)	1pc	China

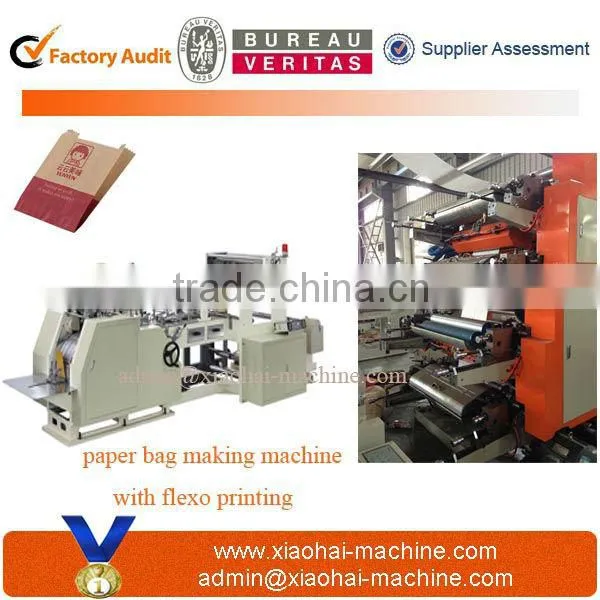

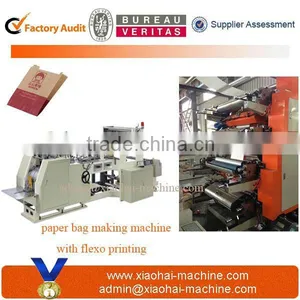

5.Machine Pictures:





6. Sample Pictures:



 7. Machine Package Pictures:



We are specializing in making paper bag making production line, including paper bag making machine, flexo printing machine, rope making machine and handling making machine etc. We have both paper bag making machine with roll feeder and sheet feeder.



1. Factory Show





2.Certificates





3.Advantages&Service

1)We have several senior engineers service in many countries, all the year round with our after-sales office in multiple countries

2)Machines with good quality in one year, life-long maintenance

3)We have many machines can be monitored via the Internet, solve customer requirements in a timely manner.



4)We have several senior,continuous innovation and reform, in order to ensure the quality of mechanical stability.



5)Undertake various non-standard machinery, solve the customers' requirements.
