Home > Products > Paper Bag Making Machine > Aluminum Foil Paper Bag Making Machine Price
Aluminum Foil Paper Bag Making Machine Price
- 35 Set / Sets per Month
- NINGBO
- T/T D/P D/A Credit Card PayPal
Product Details
Condition: | New | Machine Type: | Bag Forming Machine | Bag Type: | Other, Food bag |
Material: | Paper | Computerized: | Yes | Place of Origin: | Zhejiang, China |
Brand Name: | XIAOHAI | Model Number: | CY-400 | Voltage: | 380V,50/60HZ,3phases |
Power(W): | 10kw | Dimension(L*W*H): | 4000*2100*1900mm | Weight: | 2500kg |
Certification: | ce | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Aluminum Foil Paper Bag Making Machine Price1. Easy operation
2.Low power consumption
3. Fully Automatic
Aluminum Foil Paper Bag Making Machine Price
1. Features:
Paper Bag Making Machine can make paper bags in one process from roll paper, edge folding, tube
forming, cutting, gluing, bottom folding, bottom gluing and finishing bag.
It is an ideal machine for producing Sharp Bottom food bags like bread bags, KFC bags and
Mcdonald's bags etc.
2. Advantages:
1)Suited for 40-80gsm paper.
2)Controls bag length through the human-machine interface.
3)PLC system for calculating parameters.
4)Equipped with an accurate photocell system.
5) Color mark error automatic alarming and stopping system
6)Automatic oil lubrication system and Automatic counting system
3.Technical Parameters:
Paper Weight | 40-80g/m2 |
Bag Length | 160-420mm |
Bag Width | 70-260mm |
The width of paper roll | 260-720mm |
Speed | 100-400pcs/min |
Total Power | 10kw |
Power Voltage | 380v,50/60 HZ, 3 phases |
Total Weight | 2500kg |
Machine Dimension(L*W*H) | 400*2100*1900mm |
4.Configuration Brand and details:
Name andSpecification | Quantity | Brand, Country |
Servo Motor | two sets | YASKAWA, Janpan |
PLC | 1pc | Delta ,Taiwan |
Touch Screen | 1pc | Weinview ,Taiwan |
Photo-cell | 2pc | Sick, Germany |
Web Edge Control(EPC) | 1pc | China |
Frequency Converter(Inverter) | 1pc | China |

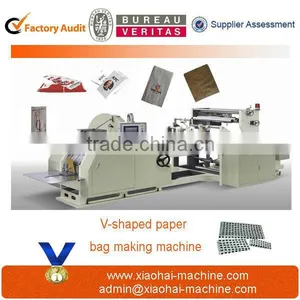

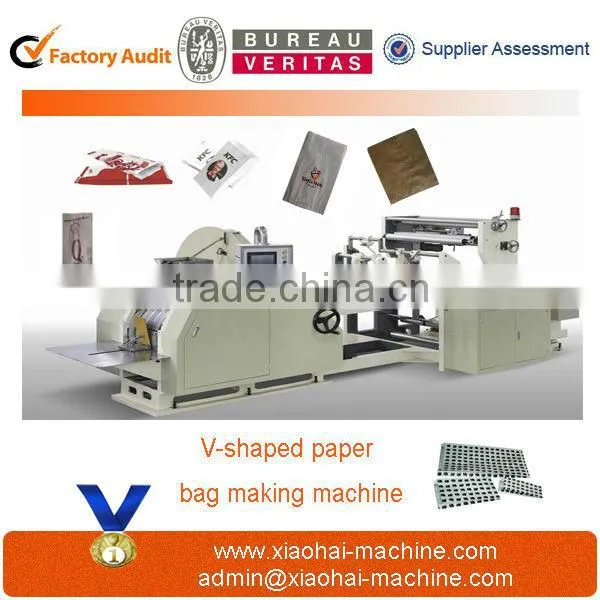

5.Machine Pictures:
6. Sample Pictures:
7. Machine Package Pictures:
We are specializing in making paper bag making production line, including paper bag making machine,
flexo printing machine, rope making machine and handling making machine etc. We have both paper
bag making machine with roll feeder and sheet feeder.
1. Factory Show:
2. Certificates
3. Advantages&Service
1 We have several senior engineers service in many countries, all the year round with our after-sales office in multiple countries.
2 Machines with good quality in one year, life-long maintenance.
3 We have many machines can be monitored via the Internet, solve customer requirements in a timely manner.
4 We have several senior,continuous innovation and reform, in order to ensure the quality of mechanical stability.
5 Undertake various non-standard machinery, solve the customers' requirements.
