Kraft Paper Favor Bags Paper Bag Making Machine Price

Kraft Paper Favor Bags Paper Bag Making Machine Price photo-1
US$ 32,500 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Paper Bag Making Machine
Processing Type:
Paper Folding Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Paper Bag Making Machine
Processing Type Paper Folding Machine
Place of Origin Zhejiang, China
Brand Name XIAOHAI
Model Number CY-400
Voltage 380V,50/60HZ,3phases
Power(W) 10kw
Dimension(L*W*H) 400*2100*1900mm
Weight 2500kg
Certification CE
Warranty one years
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Kraft Paper Favor Bags Paper Bag Making Machine Price
1. Easy operation
2.Low power consumption
3. Fully Automatic

  Kraft Paper Favor Bags Paper Bag Making Machine Price



Kraft Paper Favor Bags Paper Bag Making Machine Price



1. Features:
Paper Bag Making Machine can make paper bags in one process from roll paper, edge folding, tube

forming, cutting, gluing, bottom folding, bottom gluing and finishing bag.
It is an ideal machine for producing Sharp Bottom food bags like bread bags, KFC bags and

Mcdonald's bags etc.





2. Advantages:

1)Suited for 40-80gsm paper.
2)Controls bag length through the human-machine interface.
3)PLC system for calculating parameters.
4)Equipped with an accurate photocell system.

5) Color mark error automatic alarming and stopping system

6)Automatic oil lubrication system and Automatic counting system





3.Technical Parameters:



Paper Weight

40-80g/m2

Bag Length

160-420mm

Bag Width

70-260mm

The width of paper roll

260-720mm

Speed

100-400pcs/min

Total Power

10kw

Power Voltage

380v,50/60 HZ, 3 phases

Total Weight

2500kg

Machine Dimension(L*W*H)

400*2100*1900mm





4.Configuration Brand and details:



Name andSpecification

Quantity

Brand, Country

Servo Motor

two sets

YASKAWA, Janpan

PLC

1pc

Delta ,Taiwan

Touch Screen

1pc

Weinview ,Taiwan

Photo-cell

2pc

Sick, Germany

Web Edge Control(EPC)

1pc

China

Frequency Converter(Inverter)

1pc

China

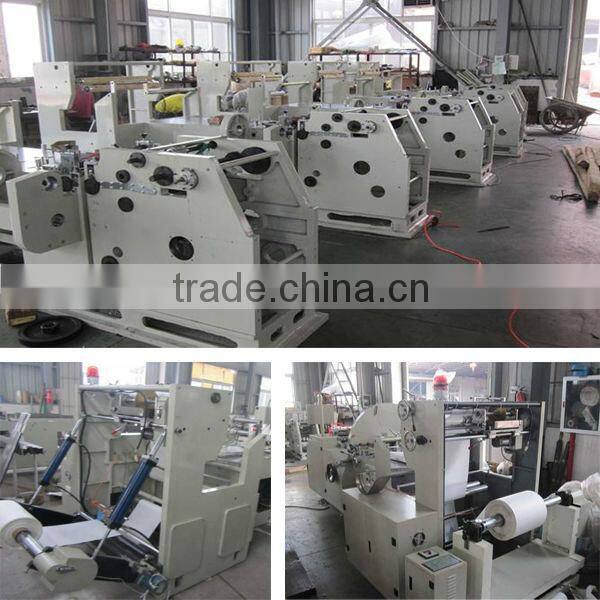

5.Machine Pictures:



 Kraft Paper Favor Bags Paper Bag Making Machine Price

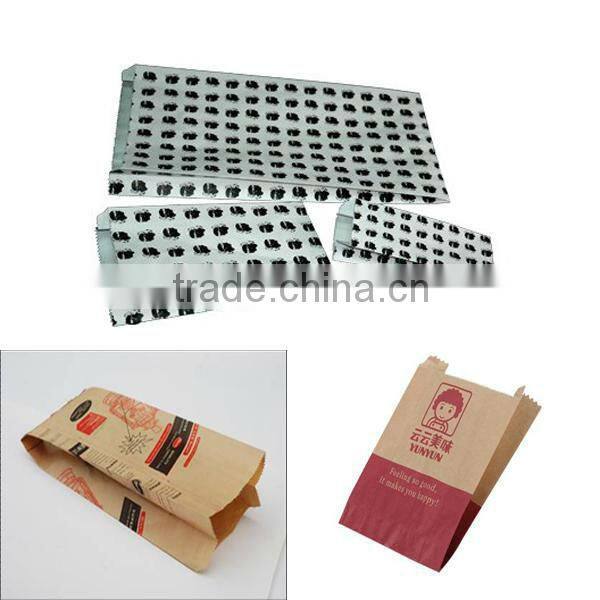

6. Sample Pictures:

Kraft Paper Favor Bags Paper Bag Making Machine Price





7. Machine Package Pictures:

Kraft Paper Favor Bags Paper Bag Making Machine Price



Kraft Paper Favor Bags Paper Bag Making Machine Price







We are specializing in making paper bag making production line, including paper bag making machine,

flexo printing machine, rope making machine and handling making machine etc. We have both paper

bag making machine with roll feeder and sheet feeder.





1. Factory Show:



Kraft Paper Favor Bags Paper Bag Making Machine Price









Kraft Paper Favor Bags Paper Bag Making Machine Price





2. Certificates





3. Advantages&Service



We have several senior engineers service in many countries, all the year round with our after-sales office in multiple countries.



Machines with good quality in one year, life-long maintenance.



We have many machines can be monitored via the Internet, solve customer requirements in a timely manner.



We have several senior,continuous innovation and reform, in order to ensure the quality of mechanical stability.



Undertake various non-standard machinery, solve the customers' requirements.
