Automatic Roll Paper Feeding Die Cutting Machine for Paper Cup With Wooden Mould
US$ 22,000 - 27,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Paper Cutting Machine
Computerized:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fan Shape Paper Cup Die Cutting Machine ( Roll to Sheet)US$ 1 - 30,000MOQ: 1 Set -
Flat Type Paper Cup Die Cutting Machine ( Roll to Sheet)US$ 1 - 30,000MOQ: 1 Set
-
Automatic Envelope Die Cutting Machine, Hydraulic Cutting MachineUS$ 4,300 - 4,500MOQ: 1 Set
-
Four Column Hydraulic Cutting MachineUS$ 4,300 - 4,500MOQ: 1 Set
-
High Speed HardCover MachineUS$ 78,000 - 108,000MOQ: 1 Set
Condition
New
Type
Paper Cutting Machine
Computerized
Yes
Place of Origin
Zhejiang, China
Brand Name
xiao hai
Model Number
MQ-850
Voltage
220V/380V
Power(W)
15KW
Dimension(L*W*H)
3000*1786*1920mm
Weight
2100KGS
Certification
ISO9001
Warranty
one year for die cutting machine
After-sales Service Provided
Engineers available to service machinery overseas

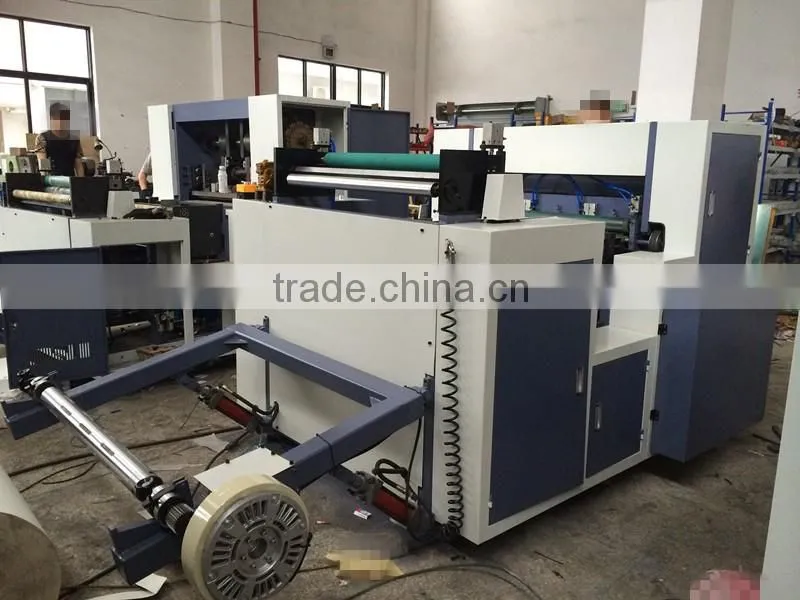

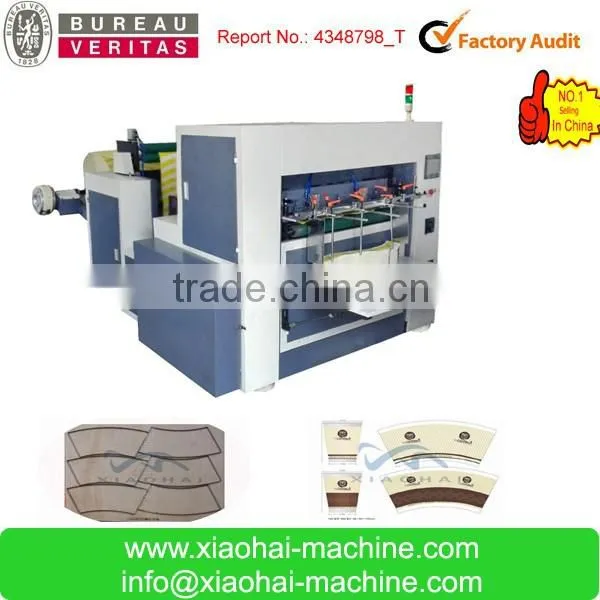

Automatic roll paper feeding die cutting machine for paper cup with wooden mould
Product Description
- 1. Machine operation controlled by PLC, easy operation touch screen
- 2. Paper feeding is roll type,servo motor and cluth control,with photocell

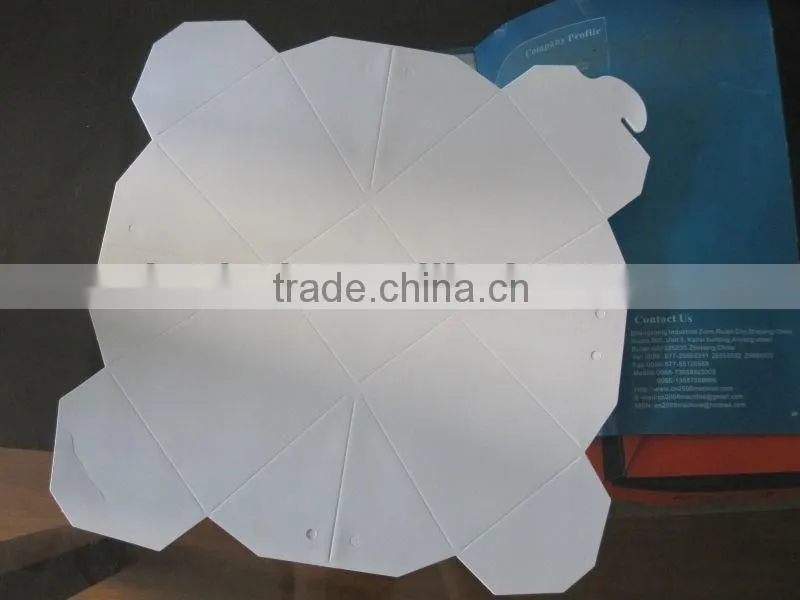

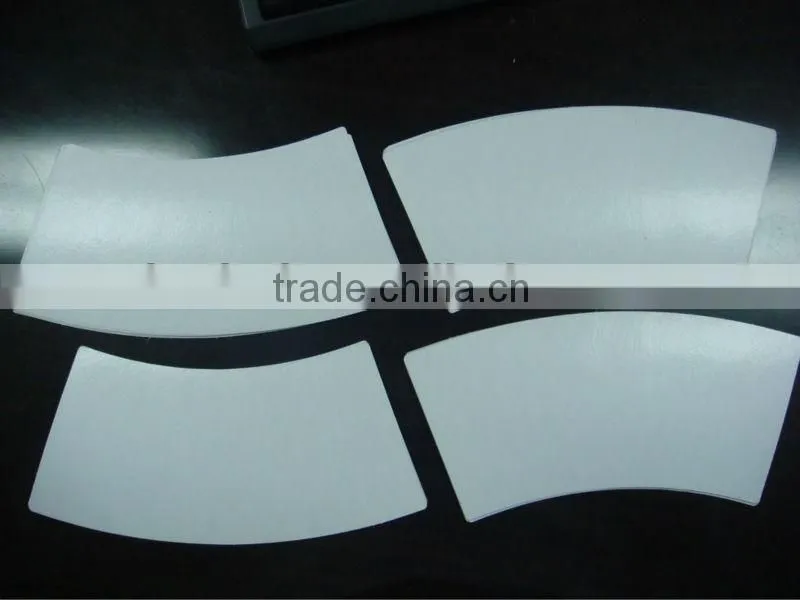

- 3. Can used for all kinds of paper and pe coated paper,aluminum,paper box etc
- 4. Material can be with printing or without printing
- 5. Die cutting max size 850x283mm ,if you have more big size,contact us
- 6. Cutting mould is flat type die cutting mould,wooden mould is cheap.
Model |
MQ-850 |
Cutting style |
Flat to flat die cutting (for roll paper) |
Speed |
160-200 cuts/min (12000 times per hour) |
Max Paper width |
860mm |
Min paper width |
100mm |
Max Die cut size |
850mm*283mm |
Suitable paper |
120-600gsm |
Control system |
AC servo motor |
Max cutting pressure |
2000N/cm³ |
Degree of automation |
Full automatic |
Stamping form |
Flaten press |
Machine size |
3000*1786*1920mm |
G.W. |
2500kg |
automatic die cutting machine for die cutting roll paper ,it is a good partner for printing machine.
Related Machines
Customer Bought This Machine,Also Have Interesting To Buy Following Machines:
- High Speed 150meter Wide Web Flexo Printing Machine
- Flexo Plate Making Machine For Printing Machine
- Flexo Cylinder Plate Mounter Machine
- Ultrasonic Ceramic Anilox Roller Washing Machine
- Paper Cup Punching Machine With Punching Mould(take off waste automatic)
- Paper cup die cutting machine with flaten knife ( take off waste manually)
