Api 6a Ductile Iron Gate Valve Pn16

FOB Price

US$ 50 - 200 / Set

1 Set(Min. Order)

Port Tianjin xingang port
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

You May Like

Product Details

Standard or Nonstandard	Standard		Structure	Gate
Pressure	Medium Pressure		Power	Other, electric
Material	Casting		Temperature of Media	Medium Temperature
Media	Other, water,gas,steam,oil etc		Port Size	DN50~DN1200
Place of Origin	Tianjin, China		Model Number	BZ973
Brand Name	BELL		Application	General

Product Description

api 6a ductile iron gate valve pn16

Product Description

Feature

· Ultrashort structure length ,saving material, can greatly reduce the overall weight of the piping system.

· Occupy the available space is small, can effectively support the strength pipes,

reduce the possibility of piping vibration.

· Gate plate selection austenitic stainless steel, corrosion resistance is greatly improved,

can effectively prevent leakage caused by gate plate corrosion.

· With multi turn electric device, so that the valve disc do up and down linear motion

to achieve remote control of opening or closing the valve.

· Used in sewage, paper, chemicals, coal, sugar, and other fields, particularly suitable

for the paper industry in the pipeline for regulating and throttling.

Main parts material

part name	material
part name	name	number
body	WCB,SS	WCB,CF8(304),CF3(304L),CF8M(316),CF3M(316L)
stem	SS	304,316,2Cr13
disc	SS	304,316,304L,316L,2Cr13
sealing face	hard alloy,PTFE
packing	V type PTFE,flexible graphite

Main picture

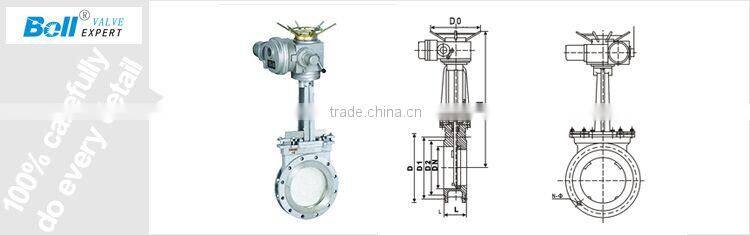

Outline Dimensions

dimension chart unit:mm

MPa Nominal pressure	DN(mm) Nominal Diameter	L	D	D1	D2	H	n-M	D0
1.0	50	43	160	125	100	330	4-M16	180
	65	46	180	145	120	360	4-M16	180
	80	46	195	160	135	390	4-M16	220
	100	52	215	180	155	440	8-M16	220
	125	56	245	210	185	510	8-M16	230
	150	56	280	240	210	600	8-M20	280
	200	60	335	295	265	700	8-M20	360
	250	68	390	350	320	840	12-M20	360
	300	78	440	400	368	960	12-M20	400
	350	78	500	460	428	1110	16-M20	400
	400	102	565	515	482	1250	16-M22	400
	450	114	615	565	532	1380	20-M22	530
	500	127	670	620	585	1530	20-M22	530
	600	154	780	725	685	1800	20-M27	600
	700	165	895	840	800	2150	24-M27	600
	800	190	1010	950	898	2420	24-M30	680
	900	203	1110	1050	1005	2680	28-M30	680
	1000	216	1220	1160	1115	3100	28-M30	700
	1200	254	1450	1380	1325	3450	32-M36	800
1.6	50	43	160	125	99	330	4-M16	180
	65	46	185	145	120	360	4-M16	180
	80	46	200	160	135	390	8-M16	220
	100	52	220	180	155	440	8-M16	220
	125	56	250	210	185	510	8-M16	230
	150	56	285	240	210	600	8-M20	280
	200	60	340	295	265	700	12-M20	360
	250	68	405	355	310	840	12-M22	360
	300	78	460	410	375	960	12-M22	400
	350	78	520	470	435	1110	16-M22	400
	400	102	580	525	485	1250	16-M27	400
	450	114	640	585	545	1380	20-M27	530
	500	127	715	650	609	1530	20-M30	530
	600	154	840	770	720	1800	20-M36	600
	700	165	910	840	788	2150	24-M36	600
	800	190	1025	950	898	2420	24-M36	680
	900	203	1125	1050	998	2680	28-M36	680
	1000	216	1255	1170	1110	3100	28-M42	700
	1200	254	1485	1390	1325	3450
