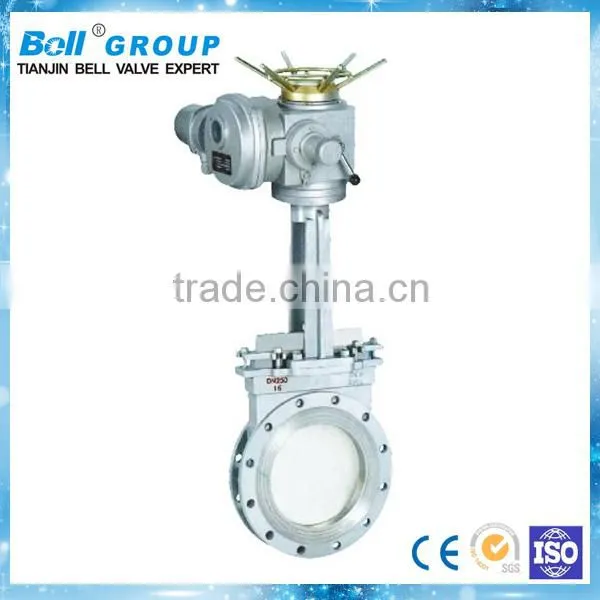

6 inch cast iron sluice gate valve
Feature
· Ultrashort structure length ,saving material, can greatly reduce the overall weight of the piping system.
· Occupy the available space is small, can effectively support the strength pipes,
reduce the possibility of piping vibration.

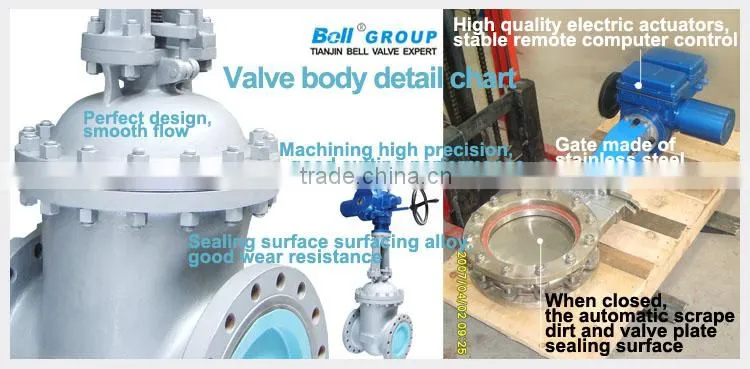

· Gate plate selection austenitic stainless steel, corrosion resistance is greatly improved,
can effectively prevent leakage caused by gate plate corrosion.

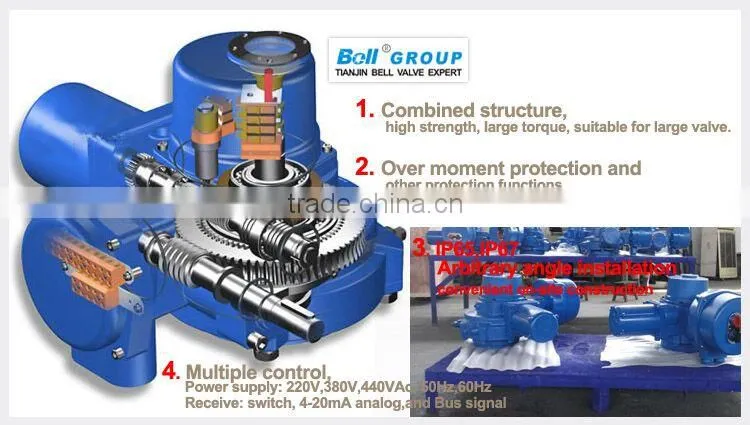

· With multi turn electric device, so that the valve disc do up and down linear motion
to achieve remote control of opening or closing the valve.
· Used in sewage, paper, chemicals, coal, sugar, and other fields, particularly suitable
for the paper industry in the pipeline for regulating and throttling.
Main parts material
part name | material | |
name | number | |
body | WCB,SS | WCB,CF8(304),CF3(304L),CF8M(316),CF3M(316L) |
stem | SS | 304,316,2Cr13 |
disc | SS | 304,316,304L,316L,2Cr13 |
sealing face | hard alloy,PTFE |
|
packing | V type PTFE,flexible graphite
| |

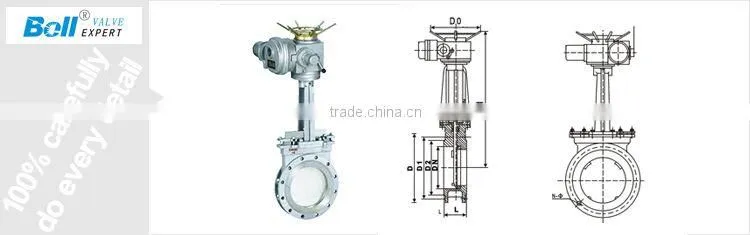

dimension chart unit:mm
MPa Nominal pressure | DN(mm) Nominal Diameter | L | D | D1 | D2 | H | n-M | D0 |
1.0 | 50 | 43 | 160 | 125 | 100 | 330 | 4-M16 | 180 |
65 | 46 | 180 | 145 | 120 | 360 | 4-M16 | 180 | |
80 | 46 | 195 | 160 | 135 | 390 | 4-M16 | 220 | |
100 | 52 | 215 | 180 | 155 | 440 | 8-M16 | 220 | |
125 | 56 | 245 | 210 | 185 | 510 | 8-M16 | 230 | |
150 | 56 | 280 | 240 | 210 | 600 | 8-M20 | 280 | |
200 | 60 | 335 | 295 | 265 | 700 | 8-M20 | 360 | |
250 | 68 | 390 | 350 | 320 | 840 | 12-M20 | 360 | |
300 | 78 | 440 | 400 | 368 | 960 | 12-M20 | 400 | |
350 | 78 | 500 | 460 | 428 | 1110 | 16-M20 | 400 | |
400 | 102 | 565 | 515 | 482 | 1250 | 16-M22 | 400 | |
450 | 114 | 615 | 565 | 532 | 1380 | 20-M22 | 530 | |
500 | 127 | 670 | 620 | 585 | 1530 | 20-M22 | 530 | |
600 | 154 | 780 | 725 | 685 | 1800 | 20-M27 | 600 | |
700 | 165 | 895 | 840 | 800 | 2150 | 24-M27 | 600 | |
800 | 190 | 1010 | 950 | 898 | 2420 | 24-M30 | 680 | |
900 | 203 | 1110 | 1050 | 1005 | 2680 | 28-M30 | 680 | |
1000 | 216 | 1220 | 1160 | 1115 | 3100 | 28-M30 | 700 | |
1200 | 254 | 1450 | 1380 | 1325 | 3450 | 32-M36 | 800 | |
1.6 | 50 | 43 | 160 | 125 | 99 | 330 | 4-M16 | 180 |
65 | 46 | 185 | 145 | 120 | 360 | 4-M16 | 180 | |
80 | 46 | 200 | 160 | 135 | 390 | 8-M16 | 220 | |
100 | 52 | 220 | 180 | 155 | 440 | 8-M16 | 220 | |
125 | 56 | 250 | 210 | 185 | 510 | 8-M16 | 230 | |
150 | 56 | 285 | 240 | 210 | 600 | 8-M20 | 280 | |
200 | 60 | 340 | 295 | 265 | 700 | 12-M20 | 360 | |
250 | 68 | 405 | 355 | 310 | 840 | 12-M22 | 360 | |
300 | 78 | 460 | 410 | 375 | 960 | 12-M22 | 400 | |
350 | 78 | 520 | 470 | 435 | 1110 | 16-M22 | 400 | |
400 | 102 | 580 | 525 | 485 | 1250 | 16-M27 | 400 | |
450 | 114 | 640 | 585 | 545 | 1380 | 20-M27 | 530 | |
500 | 127 | 715 | 650 | 609 | 1530 | 20-M30 | 530 | |
600 | 154 | 840 | 770 | 720 | 1800 | 20-M36 | 600 | |
700 | 165 | 910 | 840 | 788 | 2150 | 24-M36 | 600 | |
800 | 190 | 1025 | 950 | 898 | 2420 | 24-M36 | 680 | |
900 | 203 | 1125 | 1050 | 998 | 2680 | 28-M36 | 680 | |
1000 | 216 | 1255 | 1170 | 1110 | 3100 | 28-M42 | 700 | |
1200 | 254 | 1485 | 1390 | 1325 | 3450 |
|
CE security certificate awarded by EU appointed Britain certificate authority
The ISO9001 quality certification
China famous brand certificate
China AAA level credit enterprise certificate
Tianjin Enterprises Association Member
China quality assurance certificate
The Qualified Supplier Certificate Issued by Beijing Capital Iron & Steel Group
1. How about your price?
Although we are brand-name products, but our prices are very favorable and competitive.
Customer from all over the world to purchase our products, because our best price.
2. How long is your warranty ?
Our Warranty is 12 month
3. What’s your payment?
Our Payment could be
(1) 100% T/T
(2) 30% in advance, others before shipment.
(3)Advance, others letter of credit.
4. What’s your beneficiary bank?
Our beneficiary bank have :
(1)Alibaba one touch account
(2) Alibaba Trade Assurance account
(3) Bell Group's bank account
(4)Tianjin Bell company bank account
(5)Paypal
(6)Western Union
(7) China's domestic use RMB remittance
Specific accounts can be found on our website.
5. Could you special design and produce for you?
Sure, we have all kinds of professional engineers,
Could design and produce special product according to customer requested.
Such as: special Size, special control, or OEM, etc.
6. Do you looking for Agent ?
Yes, we're looking for the agent all over the world, please contact us for further discussion.
