Specifications
Electromagnetic controlCost-effective
International standard
Summary
DF series solenoid valve, valve body forging molding, trim stainless steel for the pipeline for liquids, gases off the automatic control.
Main technical data
1, the use of pressure: 0 ~ 10kg/cm2
2, the maximum resistance pressure: 16kg/cm2
3, the use of fluids: air, water, oil, gas, coal gas, liquefied petroleum gas
4, using the fluid viscosity: 20CST the following
5, the working temperature: -5 ~ 80 °C
6, the voltage fluctuation range: ± 10%
7, Action: Direct Action
8, the type, normally closed (ie, after the power valve open, or normally open (power valve closed).
9, the working life of> 15 million times
10, insulation class: B
11, meridional temperature <75 °C
12, power <15W
Model |
Port size |
Effective area |
Operating temperature |
Cv |
Coil Power |
Type |
Operating |
Voltage |
DF-06 |
PT1/8 |
2.5mm |
5~85°C |
0.23 |
15VA |
2/DFay normally closed |
0~9kgf/cm2 |
DC12V |
DF-08 |
PT1/4 |
2.5mm |
5~85°C |
0.23 |
15VA |
|||
DF-10 |
PT3/8 |
4.0mm |
5~85°C |
0.6 |
22VA |
|||
DF-15 |
PT1/2 |
16mm |
5~85°C |
4.8 |
22VA |
|||
DF-20 |
PT3/4 |
20mm |
5~85°C |
7.6 |
22VA |
|||
DF-25 |
PT1 |
25mm |
5~85°C |
12 |
22VA |
|||
DF-32 |
PT1-1/4 |
32mm |
5~85°C |
24 |
22VA |
|||
DF-40 |
PT1-1/2 |
40mm |
5~85°C |
29 |
22VA |
|||
DF-50 |
PT2 |
50mm |
5~85°C |
48 |
22VA |
Certificate

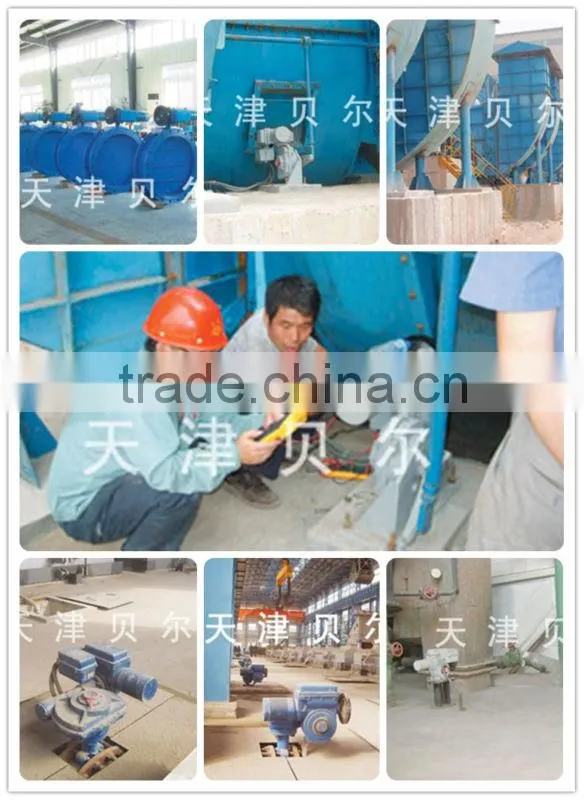

Application
Packaging and Transportation
Type of transport
Thank you for choosing BELL. If you have any questions about the product, please consult us, we will contact you to make a satisfactory answer.
Please scan the QR code to enter our alibaba official home page or the company's official website, you can learn more about the company's products.

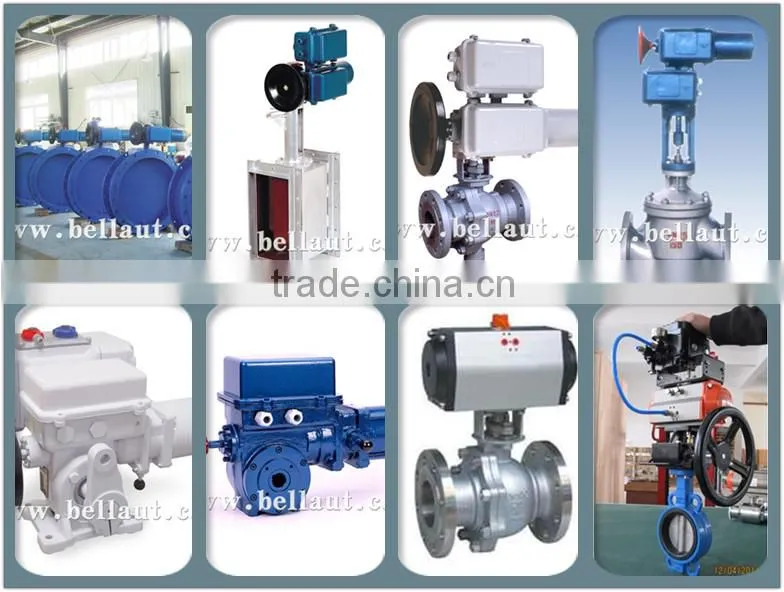

Our other products
