Home > Industrial Equipment & Components > Valve > Ball Valve > Brass Solenoid Valves 12V,24V for Water Use

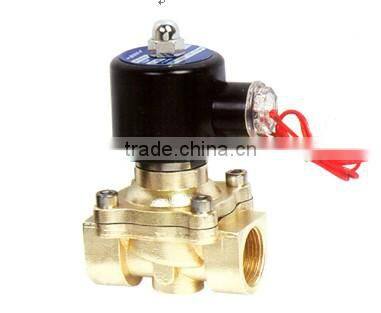

Brass Solenoid Valves 12V,24V for Water Use

Name: Brass Solenoid Valves 12V,24V for Water Use
Brand: BELL
SKU: 126579703
Availability: InStock

Brass Solenoid Valves 12V,24V for Water Use thumbnail-1

Brass Solenoid Valves 12V,24V for Water Use photo-1

US$ 50 - 150 MOQ: 1 Set

Key Specifications

Get Latest Price

Standard or Nonstandard:

Standard

Structure:

Control

Pressure:

Medium Pressure

Contact Supplier Request Quote Chat Now

Tianjin Bell Automatic Instrument Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin port China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard or Nonstandard Standard

Structure Control

Pressure Medium Pressure

Power Solenoid

Material Brass

Temperature of Media Medium Temperature

Media Base

Place of Origin Tianjin, China

Model Number DF

Brand Name BELL

Brass solenoid valves 12V,24V for water use

Summary

Usage
DF series solenoid valve, valve body forging molding, trim stainless steel for the pipeline for liquids, gases off the automatic control.

Main technical data

1, the use of pressure: 0 ~ 10kg/cm2
2, the maximum resistance pressure: 16kg/cm2
3, the use of fluids: air, water, oil, gas, coal gas, liquefied petroleum gas
4, using the fluid viscosity: 20CST the following
5, the working temperature: -5 ~ 80 °C
6, the voltage fluctuation range: ± 10%
7, Action: Direct Action
8, the type, normally closed (ie, after the power valve open, or normally open (power valve closed).
9, the working life of> 15 million times
10, insulation class: B
11, meridional temperature <75 °C
12, power <15W

Model	Port size	Effective area	Operating temperature	Cv cv value	Coil Power	Type	Operating pressure	Voltage
DF-06	PT1/8	2.5mm	5~85°C	0.23	15VA	2/DFay normally closed	0~9kgf/cm2	DC12V DC24V DC36V AC36V AC110V AC220V AC380V
DF-08	PT1/4	2.5mm	5~85°C	0.23	15VA
DF-10	PT3/8	4.0mm	5~85°C	0.6	22VA
DF-15	PT1/2	16mm	5~85°C	4.8	22VA
DF-20	PT3/4	20mm	5~85°C	7.6	22VA
DF-25	PT1	25mm	5~85°C	12	22VA
DF-32	PT1-1/4	32mm	5~85°C	24	22VA
DF-40	PT1-1/2	40mm	5~85°C	29	22VA
DF-50	PT2	50mm	5~85°C	48	22VA
