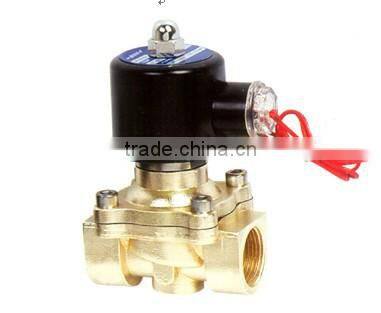

DF Series Brass solenoid valve (control valve / solenoid / solenoid control valve / flow control valve)
Summary
DF series solenoid valve, valve body forging molding, trim stainless steel for the pipeline for liquids, gases off the automatic control.
Main technical data
1, the use of pressure: 0 ~ 10kg/cm2
2, the maximum resistance pressure: 16kg/cm2
3, the use of fluids: air, water, oil, gas, coal gas, liquefied petroleum gas
4, using the fluid viscosity: 20CST the following
5, the working temperature: -5 ~ 80 °C
6, the voltage fluctuation range: ± 10%
7, Action: Direct Action
8, the type, normally closed (ie, after the power valve open, or normally open (power valve closed).
9, the working life of> 15 million times
10, insulation class: B
11, meridional temperature <75 °C
12, power <15W
Model |
Port size |
Effective area |
Operating temperature |
Cv |
Coil Power |
Type |
Operating |
Voltage |
DF-06 |
PT1/8 |
2.5mm |
5~85°C |
0.23 |
15VA |
2/DFay normally closed |
0~9kgf/cm2 |
DC12V |
DF-08 |
PT1/4 |
2.5mm |
5~85°C |
0.23 |
15VA |
|||
DF-10 |
PT3/8 |
4.0mm |
5~85°C |
0.6 |
22VA |
|||
DF-15 |
PT1/2 |
16mm |
5~85°C |
4.8 |
22VA |
|||
DF-20 |
PT3/4 |
20mm |
5~85°C |
7.6 |
22VA |
|||
DF-25 |
PT1 |
25mm |
5~85°C |
12 |
22VA |
|||
DF-32 |
PT1-1/4 |
32mm |
5~85°C |
24 |
22VA |
|||
DF-40 |
PT1-1/2 |
40mm |
5~85°C |
29 |
22VA |
|||
DF-50 |
PT2 |
50mm |
5~85°C |
48 |
22VA |
