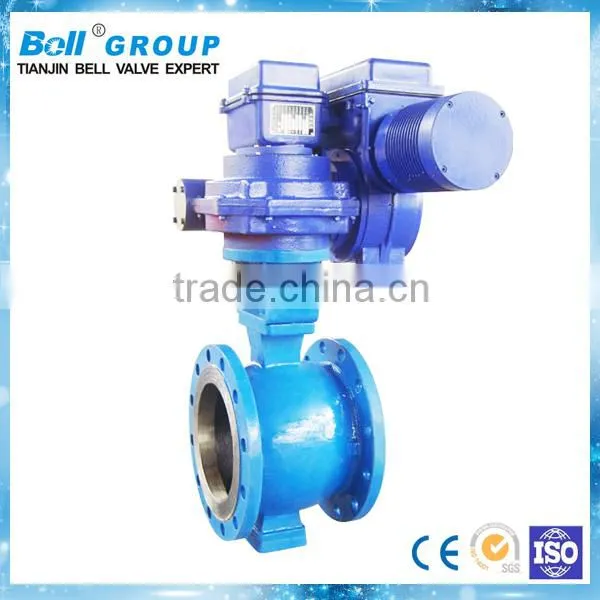

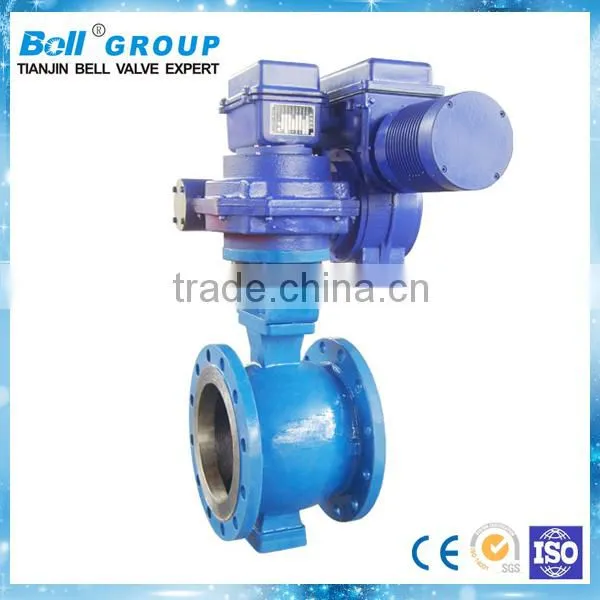

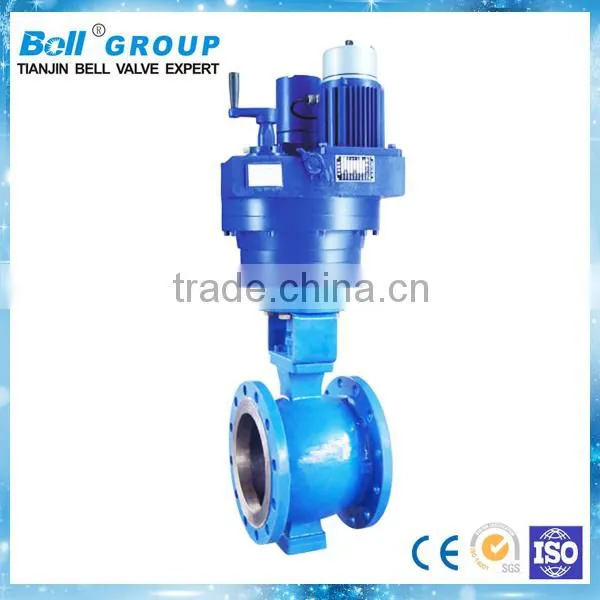

ductile iron motorized ball valve
Feature
1.DKJQ series electric ball valve is equipped with DKJ series electric actuator,
BELLAQ series electric ball valve is equipped with BELL series electric actuator
With on-off electric actuators can use as a cut off valve;
with regulating electric actuator, can use as a regulating valve.
2.V-type ball valve usually use as regulating valve.
3.SKJAQ series electric ball valve with our company's SKJ series quick electric actuators,
use as electric quick cut off valve.
4.Large output torque,quickly open and close the valve (3 seconds or 6 seconds),
can meet the requirements of some special occasions,
which has gradually been adopted by many users.
Main parameters
body type |
straight through casting ball valve |
Nominal diameter |
DN25~DN300 |
nominal pressure |
PN1.6 2.5 4.0 6.4MPa |
connect type |
JB79-59 RF flange connect JB79-59 ect RF Flange |
body material |
cast steel,stainless steel |
packing |
V type PTFE graphite |
|
spool material |
stainless steel Carbon steel platinum plating ect. |
eakage |
less than Rated Capacity 10-8 |
Actuator equipping table
Pressure class:1.6MPa,2.5MPa (when pressure is 4.0MPa,6.4MPa,actuator should increase according to situation )
|
DN mm Normal Diameter |
25 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
actuator |
DKJ-2100 |
DKJ-3100 |
DKJ-4100 |
DKJ-5100 |
|||||
output torque Nm |
100 |
250 |
600 |
1600 |
|||||
actuator |
BELL-25 |
BELL-60 |
BELL-160 |
||||||
output torque Nm |
250 |
600 |
1600 |
||||||
actuator |
SKJ-250 |
SKJ-600 |
SKJ-1600 |
SKJ-2500 |
|||||
output torque Nm |
250 |
600 |
1600 |
2500 |
|||||
Note:large size ball valve can customrized as your requirement.
Normal Diameter( DN) |
25 |
40 |
50 |
65 |
80 |
100 |
150 |
200 |
|
L |
1.6MPa |
140 |
180 |
200 |
220 |
250 |
280 |
360 |
500 |
2.5MPa |
160 |
200 |
220 |
250 |
280 |
320 |
360 |
500 |
|
4.0MPa |
160 |
200 |
220 |
250 |
280 |
320 |
360 |
500 |
|
6.4MPa |
180 |
220 |
250 |
280 |
320 |
360 |
500 |
600 |
|
H |
DKJQ |
580 |
600 |
660 |
670 |
680 |
690 |
710 |
750 |
B |
330 |
330 |
428 |
428 |
428 |
428 |
484 |
484 |
|
C |
330 |
330 |
428 |
428 |
428 |
428 |
484 |
484 |
|
H |
BELLAQ |
470 |
480 |
520 |
550 |
560 |
580 |
600 |
630 |
B |
493 |
493 |
493 |
493 |
605 |
605 |
612 |
612 |
|
C |
300 |
300 |
300 |
300 |
360 |
360 |
360 |
360 |
|
H |
SKJAQ |
430 |
450 |
540 |
550 |
560 |
570 |
600 |
650 |
B |
650 |
650 |
750 |
750 |
750 |
750 |
750 |
820 |
|
C |
340 |
340 |
400 |
400 |
400 |
400 |
400 |
400 |
|
Note:large size ball valve can customrized as your requirement.
CE security certificate awarded by EU appointed Britain certificate authority
The ISO9001 quality certification
China famous brand certificate
China AAA level credit enterprise certificate
Tianjin Enterprises Association Member
China quality assurance certificate
The Qualified Supplier Certificate Issued by Beijing Capital Iron & Steel Group
1. How about your price?
Although we are brand-name products, but our prices are very favorable and competitive.
Customer from all over the world to purchase our products, because our best price.
2. How long is your warranty?
Our Warranty is 12 month
3. What’s your payment?
Our Payment could be
(1) 100% T/T
(2) 30% in advance, others before shipment.
(3)Advance, others letter of credit.
4. What’s your beneficiary bank?
Our beneficiary bank have :
(1)Alibaba one touch account
(2) Alibaba Trade Assurance account
(3) Bell Group's bank account
(4)Tianjin Bell company bank account
(5)Paypal
(6)Western Union
(7) China's domestic use RMB remittance
Specific accounts can be found on our website.
5. Could you special design and produce for you?
Sure, we have all kinds of professional engineers,
Could design and produce special product according to customer requested.
Such as: special Size, special control, or OEM, etc.
6. Do you looking for Agent?
Yes, we're looking for the agent all over the world, please contact us for further discussion.
