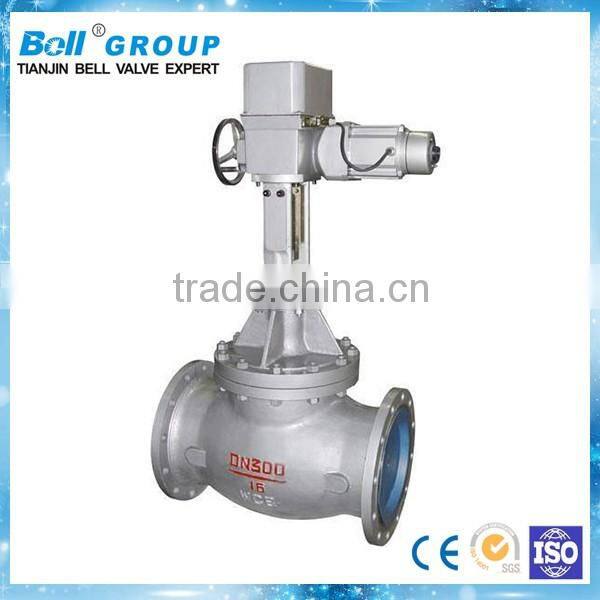

Ductile Iron 2-way Electric Flow Control Valve

Electric control valve consists of control valve and electric actuator.

Electric actuator is divided to DKZ Seriese and BELL Series.

Among which, ZAZP is the most classic mode.

Parameters of Control Valve

Size:  3/4"-12" (DN20-300)

Body material: Cast iron, Cast steel, Stainless steel

Pressure grade: 1.6Mpa, 4.0Mpa, 6.4Mpa

Connection: Flange, Screw, Welded

Temperature range: Normal temperature: -20--+230; Thermal slug type: -60--+450

Type:  Single seated, Double seated, Sleeve, Cage Guided, Three Way, etc

Standard:  ANSI, DIN, BS, JIS, GB

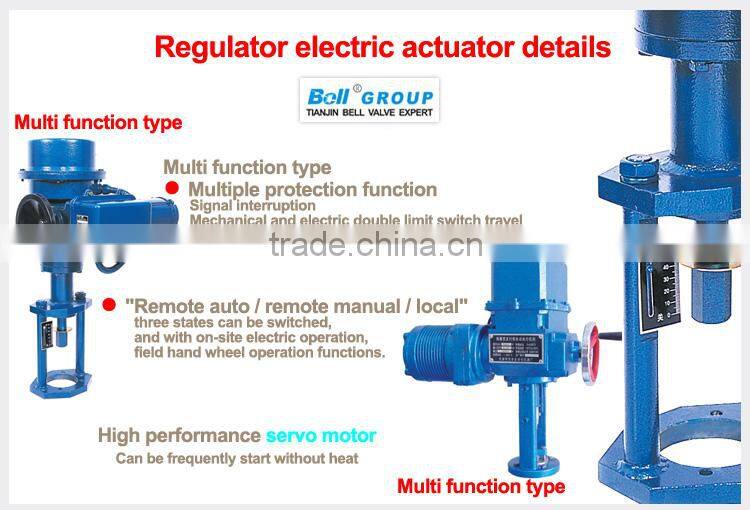

Parameters of Electric Actuator

DKZ Serise:

Model: DKZ4100-5600

Push force: 4000N-16000N

Voltage: 110V, 220V, 50Hz, 60Hz

Control way: ON-OFF Type, Modulating type(Input 4-20mA)

Protection: IP65, IP67

BELL Series:

Model:  BELL-A+Z64

Push force: 6400N

Voltage: 110V, 220V, 380V, 400V , 50Hz, 60Hz

Control way: ON-OFF Type, Modulating type(Input 4-20mA)

Protection: IP65, IP67

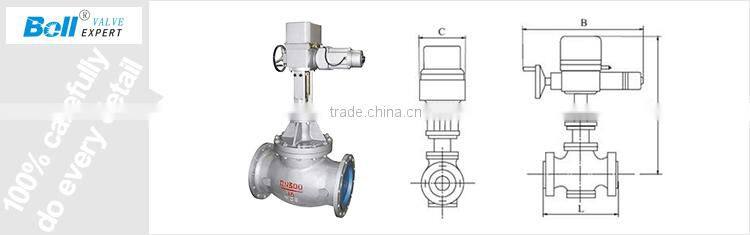

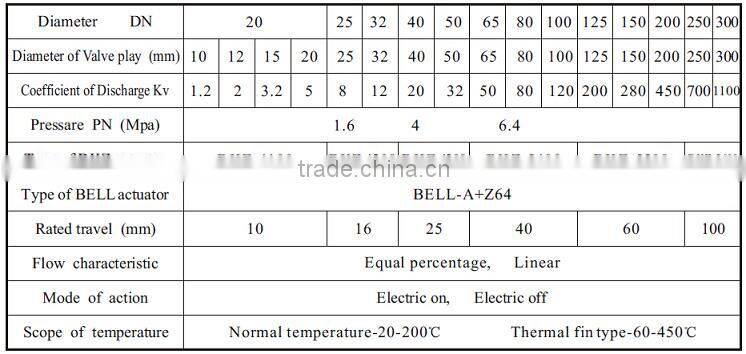

Electric control valve specification

(Electric double seat control valve & sleeve control valve's parameters, please

refer to electric single seat control valve. For more info, please contact us)

CE security certificate awarded by EU appointed Britain certificate authority

The ISO9001 quality certification

China famous brand certificate

China AAA level credit enterprise certificate

Tianjin Enterprises Association Member

China quality assurance certificate

The Qualified Supplier Certificate Issued by Beijing Capital Iron & Steel Group

 1. How about your price?

     Although we are brand name products,but our prices are very favorable and competitive.                      Customer from all over the world to purchase our products, because our best price.

 2. How long is your warranty?

     Our Warranty is 12 month

 3. What’s your payment?

     Our Payment could be

     (1) 100% T/T

     (2) 30% in advance, others before shipment.

     (3)Advance, others letter of credit.

 4. What’s your beneficiary bank?

     Our beneficiary bank have :

    (1)Alibaba one touch account

    (2) Alibaba Trade Assurance account

    (3) Bell Group's bank account

    (4)Tianjin Bell company bank account

    (5)Paypal

    (6)Western Union

    (7) China's domestic use RMB remittance

    Specific accounts can be found on our website.

 5. Could you special design and produce for you?

     Sure, we have all kinds of professional engineers,

     Could design and produce special product according to customer requested.

     Such as: special Size, special control, or OEM, etc.

 6. Do you looking for Agent?

     Yes, we're looking for the agent all over the world, please contact us for further discussion.
