ductile iron 2-way motorized water level
control valve
Electric control valve consists of control valve and electric actuator.
Electric actuator is divided to DKZ Seriese and BELL Series.
Among which, ZAZP is the most classic mode.
Parameters of Control Valve
Size: 3/4"-12" (DN20-300)
Body material: Cast iron, Cast steel, Stainless steel
Pressure grade: 1.6Mpa, 4.0Mpa, 6.4Mpa
Connection: Flange, Screw, Welded
Temperature range: Normal temperature: -20--+230; Thermal slug type: -60--+450
Type: Single seated, Double seated, Sleeve, Cage Guided, Three Way, etc
Standard: ANSI, DIN, BS, JIS, GB

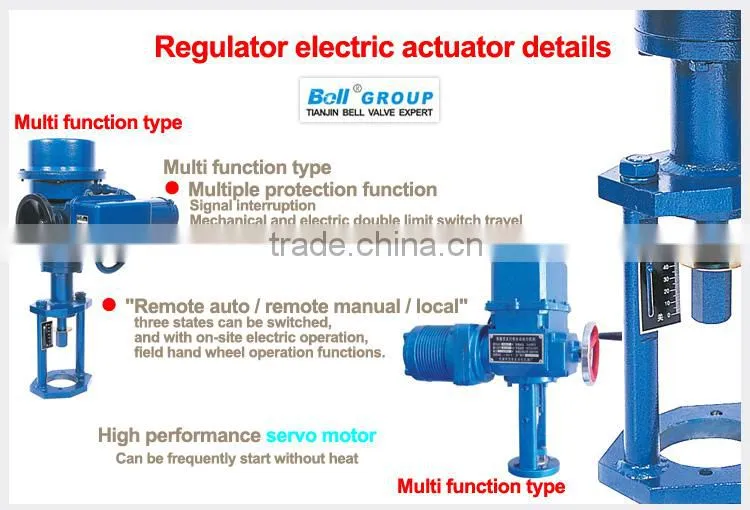

Parameters of Electric Actuator
DKZ Serise:
Model: DKZ4100-5600
Push force: 4000N-16000N
Voltage: 110V, 220V, 50Hz, 60Hz
Control way: ON-OFF Type, Modulating type(Input 4-20mA)
Protection: IP65, IP67
BELL Series:
Model: BELL-A+Z64
Push force: 6400N
Voltage: 110V, 220V, 380V, 400V , 50Hz, 60Hz
Control way: ON-OFF Type, Modulating type(Input 4-20mA)
Protection: IP65, IP67

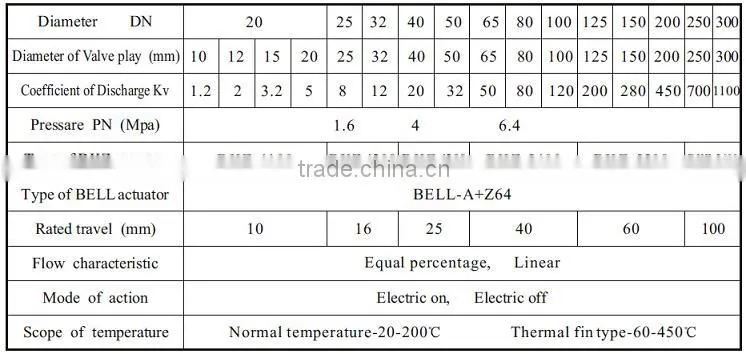

Electric control valve specification
(Electric double seat control valve & sleeve control valve's parameters, please
refer to electric single seat control valve. For more info, please contact us)

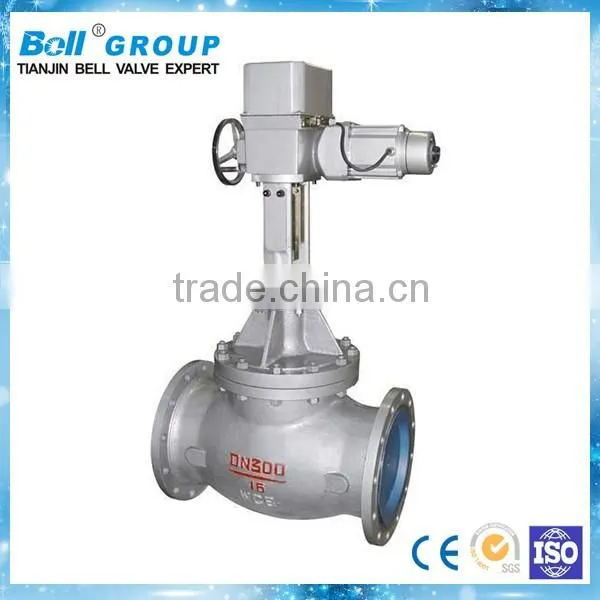

Main picture
CE security certificate awarded by EU appointed Britain certificate authority
The ISO9001 quality certification
China famous brand certificate
China AAA level credit enterprise certificate
Tianjin Enterprises Association Member
China quality assurance certificate
The Qualified Supplier Certificate Issued by Beijing Capital Iron & Steel Group
1. How about your price?
Although we are brand name products,but our prices are very favorable and competitive. Customer from all over the world to purchase our products, because our best price.
2. How long is your warranty?
Our Warranty is 12 month
3. What’s your payment?
Our Payment could be
(1) 100% T/T
(2) 30% in advance, others before shipment.
(3)Advance, others letter of credit.
4. What’s your beneficiary bank?
Our beneficiary bank have :
(1)Alibaba one touch account
(2) Alibaba Trade Assurance account
(3) Bell Group's bank account
(4)Tianjin Bell company bank account
(5)Paypal
(6)Western Union
(7) China's domestic use RMB remittance
Specific accounts can be found on our website.
5. Could you special design and produce for you?
Sure, we have all kinds of professional engineers,
Could design and produce special product according to customer requested.
Such as: special Size, special control, or OEM, etc.
6. Do you looking for Agent?
Yes, we're looking for the agent all over the world, please contact us for further discussion.
