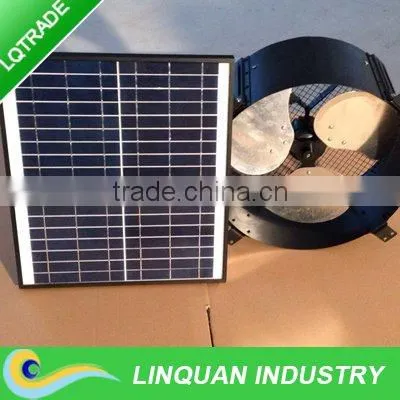

14 Inch 20w Solar Gable Fan With Brush/brushless Motor

14 Inch 20w Solar Gable Fan With Brush/brushless Motor thumbnail-1
14 Inch 20w Solar Gable Fan With Brush/brushless Motor photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Power Source:
Solar
Type:
Ventilation Fan
Material:
Other, Aluminum
Contact Supplier Request Quote Chat Now
Jinan Linquan Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Power Source Solar
Type Ventilation Fan
Material Other, Aluminum
Certification CE, Other, CE, RoHS
Power (W) 20
Brand Name LQSOLAR
Model Number SN2015011
Place of Origin Shandong, China

14 inch 20w Solar gable fan with brush/brushless motor







Product Description





14 inch 20w Solar gable fan with brush/brushless motor is detailed as follows:

14 inch 20w Solar gable fan with brush/brushless motor

Feature:

A: High efficacy air draft design

B:Product using turbine wind lamina

C:360 degree venting hot air from roof level

D:No any dead angle

H:Because shelter no any block, this structure is good for no affect by any outside interfere

I:At daytime good for venting

G: At the raining or windy situation this structure prevents wind and rain converse

Functions & Characteristics

1.Powered by clean & free solar energy

2.Operating at ZERO commericial electronic costs

3.Installed easy & Flexible ,fan host can mount to any building wall

4.Solar panel is adjustable to capture most direct sunlight for stronger venting efficiency

5.Oncy pay,benefit forever and no maintenance!

6.Remove harmful elements like excess heat,moisture,dust,toxic mould to prolong indoor appliances' lifespan.

7.Quiet and safely enhance indoor air circulation to provide a more cozy living/working environment.

8.Power can be storable & rechargeable for ventilation fan working all-day-round!

 Structure:

14 inch 20w Solar gable fan with brush/brushless motor



Specification:



Solar powered wall exhaust fan
(solar panel ajustable) 		20 watt polycrystalline solar panel,(365x410x25mm)
14 inch Aluminum fan blade,
brush / brushless DC motor,
air flow: 2295CMH (1350CFM),
fan host size: Φ368x175mm,
with 6m cable to connect fan host & solar panel,
gross weight: 11.4KGS







Packaging & Shipping



The 14 inch 20w Solar gable fan with brush/brushless motor can be packed as follows:

1 set/carton/0.085cbm(350pcs/20'GP,820pcs/40'HQ)

14 inch 20w Solar gable fan with brush/brushless motor





Application Scope

     The  14 inch 20w Solar gable fan with brush/brushless motor can be used widely for the agricultural application,civilian application,industrial application
14 inch 20w Solar gable fan with brush/brushless motor





Installation



The  14 inch 20w Solar gable fan with brush/brushless motor can be mounted as follows:

This solar wall exhaust fan can be installed anywhere of a building.
We herein just present 2 major mounting methods:1)Gable Wall application, 2) Basement application
and describe in 3 parts:
Part I: Fixing the Fan Host

1. No matter where to use this fan, just fix it into the wall, with our provided screws.
1)Of course, it's necessary to open a hole at diameter of 12 inch / 14 inch before you start installing the fan!
2)If you do not want to open a new hole on wall, but make use of the old static openers, you can build a wooden frame according to real needs and fix the fan into that frame instead.
3) Fan blades' orientation should be relatively outward the house.

 14 inch 20w Solar gable fan with brush/brushless motor

2. The fan's mounting brackets on sliding rails are flexible.
 Loosen screws to set the needed position of brackets first, then fix them with 8 bolts.

14 inch 20w Solar gable fan with brush/brushless motorPart II: Mounting the Solar Panel

You can put the solar panel directly on building roof, or mount it onto the wall. No matter in which way, simply fix it tight with our provided bolts & nuts.

14 inch 20w Solar gable fan with brush/brushless motorPart III: Connecting Solar Panel to the Fan Host

When fan & solar panel are both finished, the rest job is to connect their wires!
1)Of course, you need to take care of the wiring appropriately with coaxial staples.
2)To prevent water running down the wire into the house, please include a drip curve when securing the wire to the wall!

14 inch 20w Solar gable fan with brush/brushless motor



Company Information





Jinan Linquan is a high-tech enterprise specialized in power products researching, manufacturing and marketing in Shangdong. We provide products including solar module, 20w solar gable fan ,solar charge controller, off- grid inverter, LED driver and special power units etc., as well as design and supply relevant solar systems. We have passed the ISO9001 – 2008, and our products have passed CGC-SOLAR certification and CE certification as well as other domestic and international authoritative certification and a number of patents

14 inch 20w Solar gable fan with brush/brushless motor

14 inch 20w Solar gable fan with brush/brushless motor
