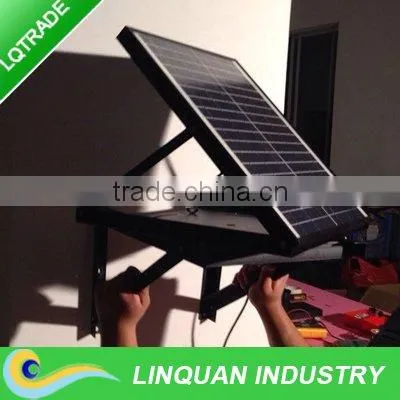

Natural Air Conditioner! 12 Inch 45W Brushless DC Motor Solar Gable Fan

Natural Air Conditioner! 12 Inch 45W Brushless DC Motor Solar Gable Fan thumbnail-1
Natural Air Conditioner! 12 Inch 45W Brushless DC Motor Solar Gable Fan photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Power Source:
Solar
Type:
Ventilation Fan
Material:
Other, Aluminum
Contact Supplier Request Quote Chat Now
Jinan Linquan Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Power Source Solar
Type Ventilation Fan
Material Other, Aluminum
Certification CE, Other, CE, RoHS
Power (W) 12
Brand Name LQSOLAR
Model Number SN2015012
Place of Origin Shandong, China

Natural Air Conditioner! 12 inch 45W brushless DC motor Solar gable fan



Product Description





Natural Air Conditioner! 12 inch 45W brushless DC motor Solar gable fan   is detailed as follows:

Feature:

A: High efficacy air draft design

B:Product using turbine wind lamina

C:360 degree venting hot air from roof level

D:No any dead angle

H:Because shelter no any block, this structure is good for no affect by any outside interfere

I:At daytime good for venting

G: At the raining or windy situation this structure prevents wind and rain converse

 Natural Air Conditioner! 12 inch 45W brushless DC motor Solar gable fan

Technical parameters :

Item

Part name

12W Model

15W Model


Part description

Part description

1

Solar panel

12W, 17.4V, 0.689A

15W, 17.4V, 0.689A

2

Angle adjustment bracket

Galvanization steel,δ2.0

Galvanization steel, δ2.0

3

About regulating

Galvanization steel,δ1.0

Galvanization steel, δ1.0

4

Cover

Galvanization steel, δ1.0

Galvanization steel, δ1.0

5

Wind guide cone

Galvanization steel, δ1.0

Galvanization steel, δ1.0

6

Fan blade

Galvanization steel, δ1.0

Galvanization steel, δ1.0

7

Air duct

12”, Material: Galvanization steel, δ1.0

14”, Material: Galvanization steel, δ1.0

8

Fan blade

Aluminum

Aluminum

9

Motor

24-Volt DC Motor

24-Volt DC Motor

10

Motor bracket

Galvanization steel, δ2.0

Galvanization steel, δ2.0

11

Bottom board

Galvanization steel, δ1.2

Galvanization steel, δ1.2

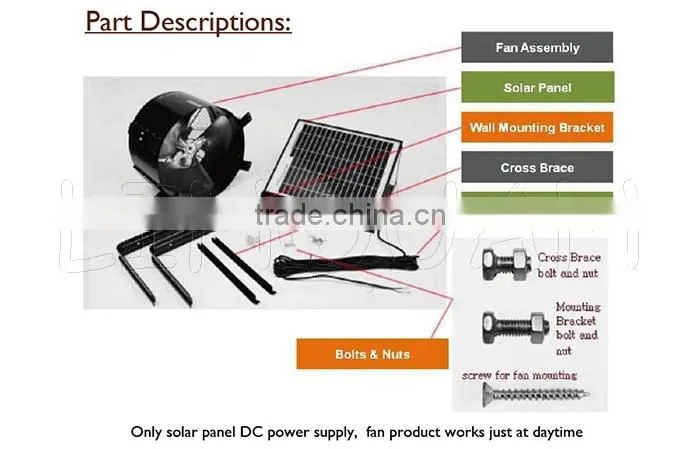

 Structure:

Natural Air Conditioner! 12 inch 45W brushless DC motor Solar gable fan



Specification:



Solar powered wall exhaust fan
(solar panel adjustable) 		12 inch Aluminum fan blades,
45 watt polycrystalline solar panel (495x782x25mm),
15w to support motor runs directly at daytime,
30w to charge 9.6Ah battery at daytime  for supporting motor runs nonstop in sunless periods,
brushless DC motor,
6m cable to connect fan host & solar panel battery
fan host size: Φ317x175mm,
gross weight: 15KGS

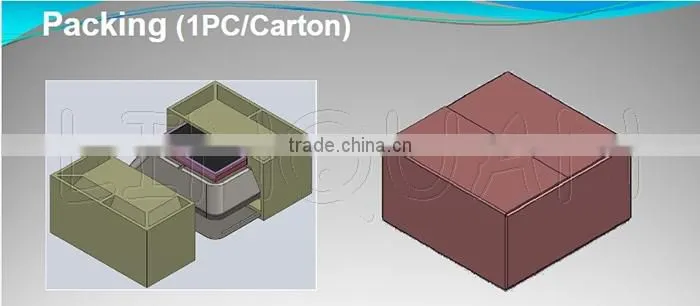

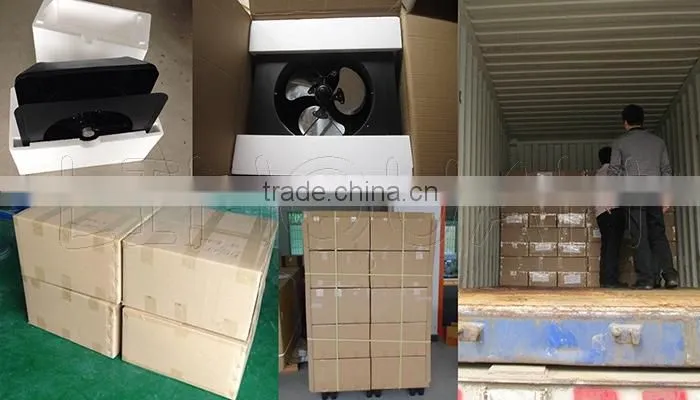

Packaging & Shipping



 The 12 inch 45W brushless DC motor Solar gable fancan be packed as follows:

1 set/carton/0.085cbm(350pcs/20'GP,820pcs/40'HQ)



Natural Air Conditioner! 12 inch 45W brushless DC motor Solar gable fanNatural Air Conditioner! 12 inch 45W brushless DC motor Solar gable fan

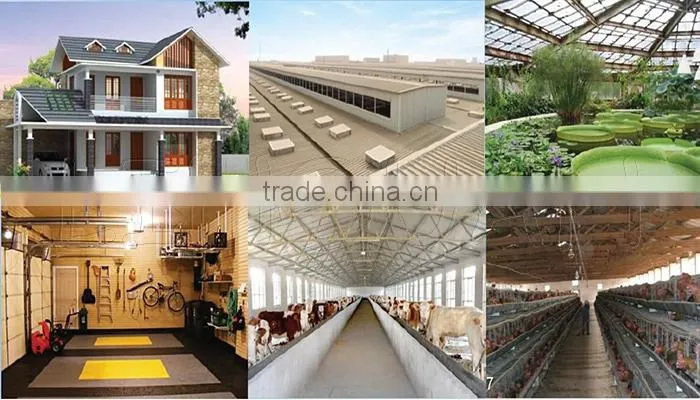

Application Scope



 The  12 inch 45W brushless DC motor Solar gable fan can be used widely for the agricultural application,civilian application,industrial application

 Natural Air Conditioner! 12 inch 45W brushless DC motor Solar gable fan





Installation



 The  12 inch 45W brushless DC motor Solar gable fan can be installed as follows:



This solar wall exhaust fan can be installed anywhere of a building.
We herein just present 2 major mounting methods:1)Gable Wall application, 2) Basement application
and describe in 3 parts:
Part I: Fixing the Fan Host

1. No matter where to use this fan, just fix it into the wall, with our provided screws.
1)Of course, it's necessary to open a hole at diameter of 12 inch / 14 inch before you start installing the fan!
2)If you do not want to open a new hole on wall, but make use of the old static openers, you can build a wooden frame according to real needs and fix the fan into that frame instead.
3) Fan blades' orientation should be relatively outward the house.

 Natural Air Conditioner! 12 inch 45W brushless DC motor Solar gable fan

2. The fan's mounting brackets on sliding rails are flexible.
 Loosen screws to set the needed position of brackets first, then fix them with 8 bolts.

Natural Air Conditioner! 12 inch 45W brushless DC motor Solar gable fan

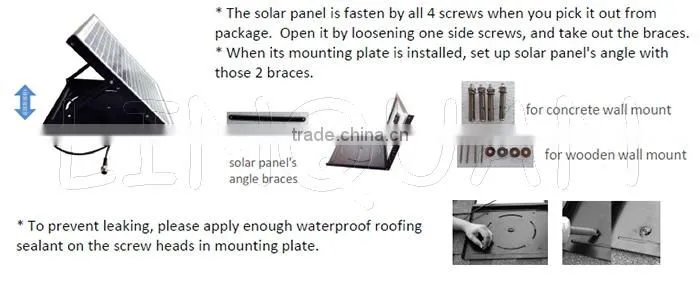

Part II: Mounting the Solar Panel

You can put the solar panel directly on building roof, or mount it onto the wall. No matter in which way, simply fix it tight with our provided bolts & nuts.

Natural Air Conditioner! 12 inch 45W brushless DC motor Solar gable fan
Part III: Connecting Solar Panel to the Fan Host

When fan & solar panel are both finished, the rest job is to connect their wires!
1)Of course, you need to take care of the wiring appropriately with coaxial staples.
2)To prevent water running down the wire into the house, please include a drip curve when securing the wire to the wall!

  Natural Air Conditioner! 12 inch 45W brushless DC motor Solar gable fan
