Green solar energy powered 14 inch 45W brushless motor solar wall mounted fan with battery
Green solar energy powered 14 inch 45W brushless motor solar wall mounted fan with battery is detailed as follows:
Feature:
A: High efficacy air draft design
B:Product using turbine wind lamina
C:360 degree venting hot air from roof level
D:No any dead angle
H:Because shelter no any block, this structure is good for no affect by any outside interfere
I:At daytime good for venting
G: At the raining or windy situation this structure prevents wind and rain converse
Functions & Characteristics
1.Powered by clean & free solar energy
2.Operating at ZERO commericial electronic costs
3.Installed easy & Flexible ,fan host can mount to any building wall
4.Solar panel is adjustable to capture most direct sunlight for stronger venting efficiency
5.Oncy pay,benefit forever and no maintenance!
6.Remove harmful elements like excess heat,moisture,dust,toxic mould to prolong indoor appliances' lifespan.
7.Quiet and safely enhance indoor air circulation to provide a more cozy living/working environment.
8.Power can be storable & rechargeable for ventilation fan working all-day-round!
Structure:
Specification:
|
Solar powered wall exhaust fan (solar panel ajustable) |
14 inch Aluminum fan blades, |
| 45 watt polycrystalline solar panel (495x782x25mm), | |
| 15w to support motor runs directly at daytime, | |
| 30w to charge 9.6Ah battery | |
| brushless DC motor, | |
| fan host size: Φ368x175mm, | |
| 6m cable to connect fan host & solar panel battery | |
| gross weight: 15.8KGS |
The 14 inch 45W brushless motor solar wall mounted fan with battery can be packed as follows:
The Green solar energy powered 14 inch 45W brushless motor solar wall mounted fan with battery can be used widely for the agricultural application,civilian application,industrial application

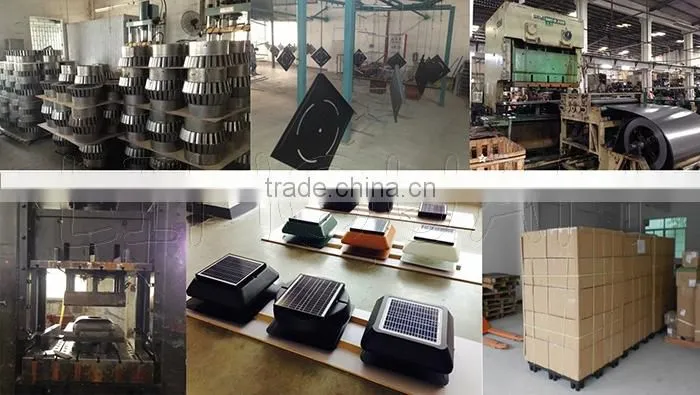

inan Linquan is a high-tech enterprise specialized in power products researching, manufacturing and marketing in Shangdong. We provide products including solar module, 14 inch 45W brushless motor solar wall mounted fan with battery ,solar charge controller, off- grid inverter, LED driver and special power units etc., as well as design and supply relevant solar systems. We have passed the ISO9001 – 2008, and our products have passed CGC-SOLAR certification and CE certification as well as other domestic and international authoritative certification and a number of patents
The Green solar energy powered 14 inch 45W brushless motor solar wall mounted fan with battery can be installed as follows:
This solar wall exhaust fan can be installed anywhere of a building.
We herein just present 2 major mounting methods:1)Gable Wall application, 2) Basement application
and describe in 3 parts:
Part I: Fixing the Fan Host
1. No matter where to use this fan, just fix it into the wall, with our provided screws.
1)Of course, it's necessary to open a hole at diameter of 12 inch / 14 inch before you start installing the fan!
2)If you do not want to open a new hole on wall, but make use of the old static openers, you can build a wooden frame according to real needs and fix the fan into that frame instead.
3) Fan blades' orientation should be relatively outward the house.
2. The fan's mounting brackets on sliding rails are flexible.
Loosen screws to set the needed position of brackets first, then fix them with 8 bolts.

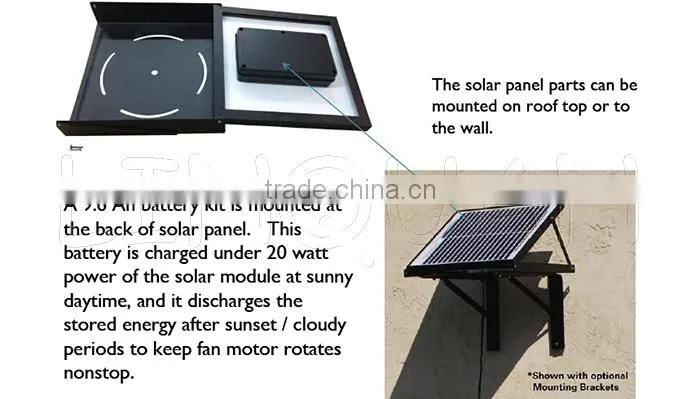

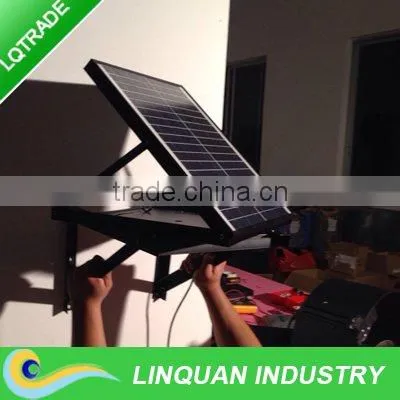

Part II: Mounting the Solar Panel
You can put the solar panel directly on building roof, or mount it onto the wall. No matter in which way, simply fix it tight with our provided bolts & nuts.
Part III: Connecting Solar Panel to the Fan Host
When fan & solar panel are both finished, the rest job is to connect their wires!
1)Of course, you need to take care of the wiring appropriately with coaxial staples.
2)To prevent water running down the wire into the house, please include a drip curve when securing the wire to the wall!
