Help Center20A 12V/24V Tracer-2215RN MPPT Solar Controller
Related Products
-
10A Solar Charge Controller With USB ConnectorNegotiableMOQ: 1 Piece -
New LS-E Series Solar Charger Controller 20A/12V24VUS$ 17 - 26MOQ: 1 Piece
-
MPPT 12V/24V Solar Charge ControllerUS$ 55 - 55MOQ: 100 Pieces
-
PWM Solar Charger Controller /20A/12V/24V/All the Terminals BackwardsUS$ 27 - 42MOQ: 50 Pieces
-
PWM Solar Charger Controller /10A/12V/24V/All the Terminals BackwardsUS$ 15 - 31MOQ: 50 Pieces
Specifications
MPPT technologyTwo Color Black and Silver Optional
High Tracking efficiency of 99%
Peak conversion efficiency of 97 %.
CE.
20A 12V/24V Tracer-2215RN MPPT Solar controller
Tracerseries controller adopts MPPT technology (Maximum Power Point Tracking).
Theadvanced tracking algorithm make the solar module operate at ideal voltagewhich the solar modules can produce the maximum available power.
Comparedto conventional PWM controller, MPPT technology increase charge efficiency upto 30% and decrease the power of solar array needed.
Tracerhas the ability to step-down the higher voltage solar array to recharge a lowervoltage battery bank. Max. 150VDC input. So it allows on grid solar modules orthin film modules to charge the off-grid battery. And the cable size can bereduced because of the small current from the solar array.

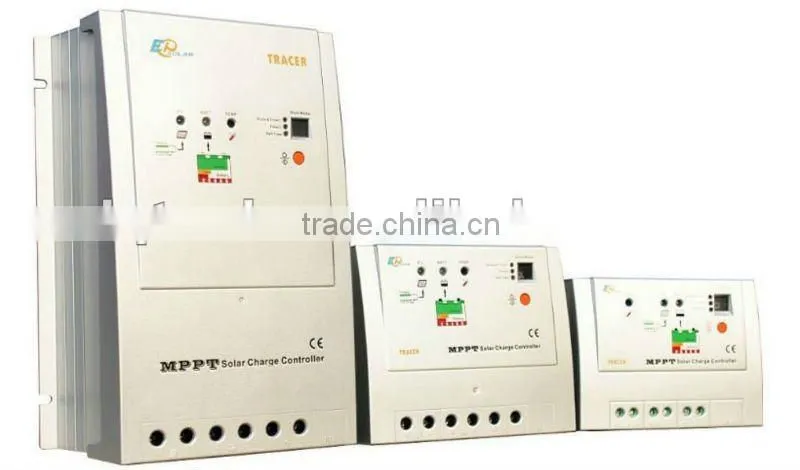

TheTracer series controller is for off-grid solar system and control the chargingand discharging of the battery.
Thecontroller features a smart tracking algorithm inside that maximizes the energyfrom the solar PV module(s) and charge the battery. At the same time, the lowvoltage disconnect function (LVD) will prevent the battery damage from batteryover discharging.
ElectricalParameters
Description |
Parameter |
Nominal System Voltage |
12VDC / 24VDC Auto work |
Rated Battery Current |
20A |
Maximum Battery Voltage |
32V |
Max. Solar Input Voltage |
Tracer-2210RN 100VDC Tracer-2215RN 150VDC |
Max. PV input power |
12V/ 260W 24V /520W |
Self-consumption* |
<10mA(24V) |
Charge Circuit Voltage Drop |
≤0.26V |
Discharge Circuit Voltage Drop |
≤0.15V |
Communication |
TTL232 / 8pin RJ45 |
