Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Controller > MPPT 12V/24V Solar Charge Controller

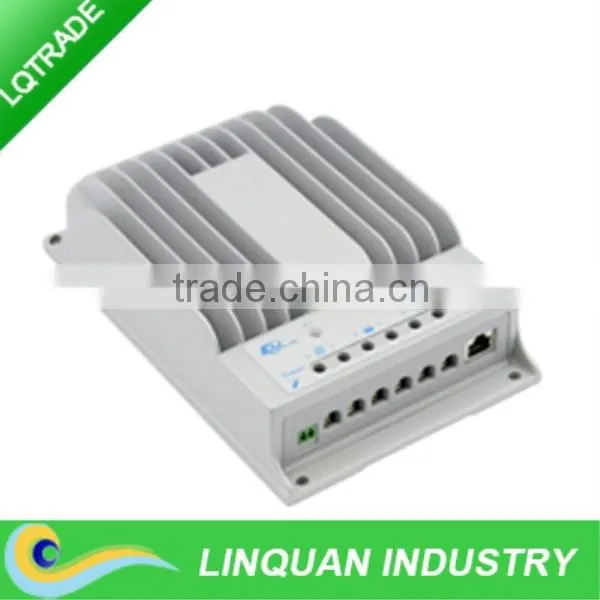

MPPT 12V/24V Solar Charge Controller

Name: MPPT 12V/24V Solar Charge Controller
Brand: LQSOLAR
SKU: 126573519
Availability: InStock

MPPT 12V/24V Solar Charge Controller thumbnail-1

MPPT 12V/24V Solar Charge Controller photo-1

US$ 55 - 55 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

LQSOLAR

Model Number:

Tracer-1215RN

Contact Supplier Request Quote Chat Now

Jinan Linquan Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name LQSOLAR

Model Number Tracer-1215RN

Application Charger Controller

Rated Voltage 12V

MPPT 12V/24V solar charge controller

Product Description

Tracer BN series is EPsolar’s second generation of MPPT controller. Compared with CLASSIC Tracer series, it has extensive communication ability. And the die-cast aluminum design ensures excellent heat dispersion.

Compared to conventional PWM controller, MPPT technology increases the charge efficiency up to 30% and potentially decrease the power of solar array needed.

Compared with CLASSIC Tracer series, it has extensive communication ability. And the die-cast aluminum design ensures excellent heat dispersion.

Features:
·Innovative MPPT technology
·Peak conversion efficiency of 98%
·High tracking efficiency up to 99%
·Several seconds tracking speed
·Die-cast aluminum design and nature cooling
·Temperature compensation
·Diversified load control to meet different requirements
·Four battery type options: Sealed, Gel, Flooded, and USER
·Intelligent lighting and timer control for solar lighting system
·Energy statistics function
·RS485 ports with MODBUS communication protocol
·Optional PC monitoring software and remote meter for real-time monitoring and battery management parameter setting
·Field upgradable firmware

Electronic Protections:

·PV short circuit protection
·PV overvoltage alarm protection
·PV current limiting protection
·PV reverse polarity protection
·Battery overcharge protection
·Battery over discharge protection
·Battery reverse polarity protection
·Load overload protection
·Load short circuit protection
·Overheating protection

Model	Tracer1215BN	Tracer2215BN	Tracer3215BN	Tracer4215BN
Nominal system voltage	12/24V auto work
Rated battery current	10A	20A	30A	40A
Rated load current	10A	20A	20A	20A
Max. PV open circuit voltage	150V
Max. battery voltage	32V
Max. PV input power	130W (12V)	260W (12V)	390W (12V)	520W (12V)
Max. PV input power	260W (24V)	520W (24V)	780W (24V)	1040W (24V)
Equalize charging voltage	Sealed: 14.6V, Flooded: 14.8V, USER: 9~17V
Boost charging voltage	Gel: 14.2V, Sealed: 14.4V, Flooded: 14.6V, USER: 9~17V
Float charging voltage	Gel /Sealed /Flooded: 13.8V, USER: 9~17V
Low voltage reconnect voltage	Gel /Sealed /Flooded: 12.6V, USER: 9~17V
Low voltage disconnect voltage	Gel /Sealed /Flooded: 11.1V, USER: 9~17V
Self-consumption	≤50mA(12V) ≤27mA(24V)
Grounding	Common negative
Temp. compensation	-3mV/℃/2V
Communication Port	RS485 / RJ45 interface
Working temperature	-35℃~+55℃
Storage temperature	-35℃~+80℃
Humidity	≤95% N.C.
Enclosure	IP30
Overall dimension	196x118x36mm	217x143x56mm	281x160x60mm	303x183x64mm
Terminal	4mm²	10mm²	16mm²	25mm²
Net weight	0.9kg	1.5kg	2.3kg	2.9kg
