Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Controller > Tracer1206 MPPT 10A 12V/24V Solar Controller

Tracer1206 MPPT 10A 12V/24V Solar Controller

Name: Tracer1206 MPPT 10A 12V/24V Solar Controller
Brand: linquan
SKU: 126573705
Availability: InStock

Tracer1206 MPPT 10A 12V/24V Solar Controller thumbnail-1

Tracer1206 MPPT 10A 12V/24V Solar Controller photo-1

US$ 50 - 55 MOQ: 5 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

linquan

Model Number:

Tracer1206

Contact Supplier Request Quote Chat Now

Jinan Linquan Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO/TIANJIN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name linquan

Model Number Tracer1206

Application Solar System Controller

Rated Voltage Other, 12V/24V auto work

Maximum Current 10A

Specifications

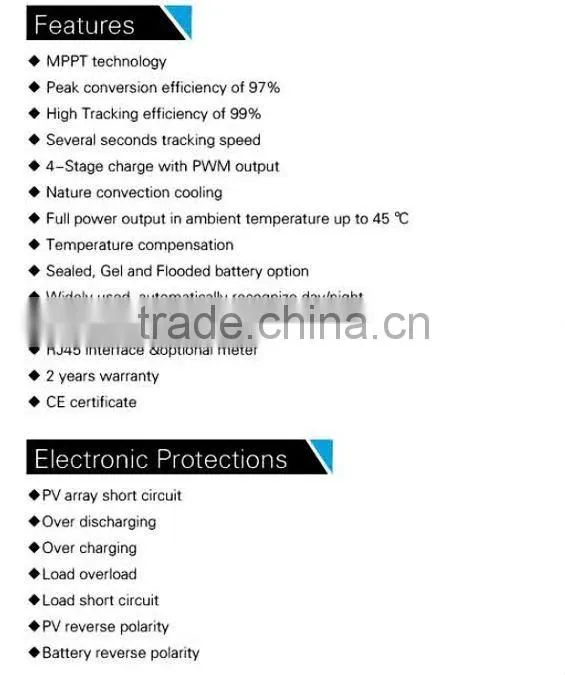

MPPT technology
Two Color Black and Silver Optional
High Tracking efficiency of 99%
Peak conversion efficiency of 97 %
CE.

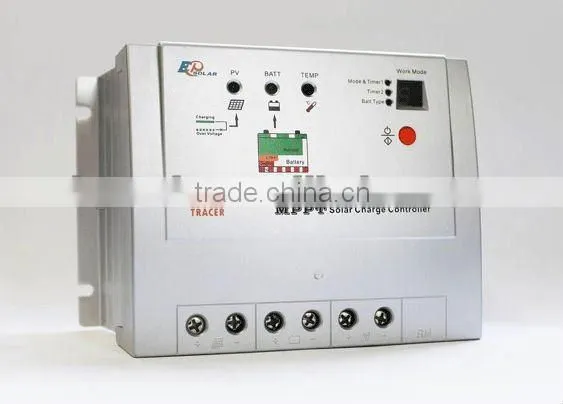

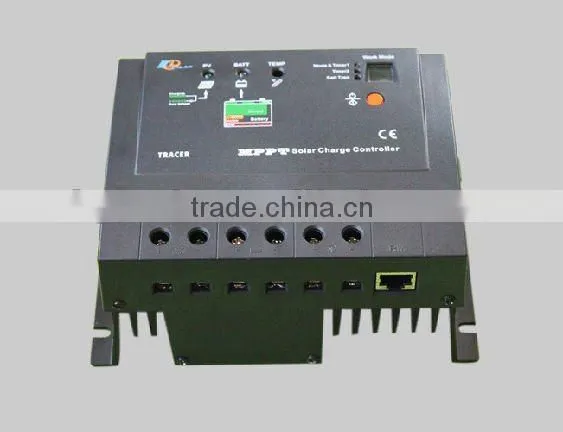

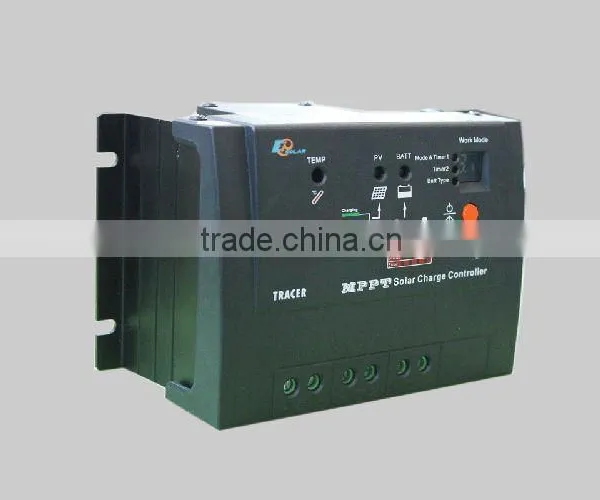

Tracer1206 MPPT 10A 12V/24V Solar controller

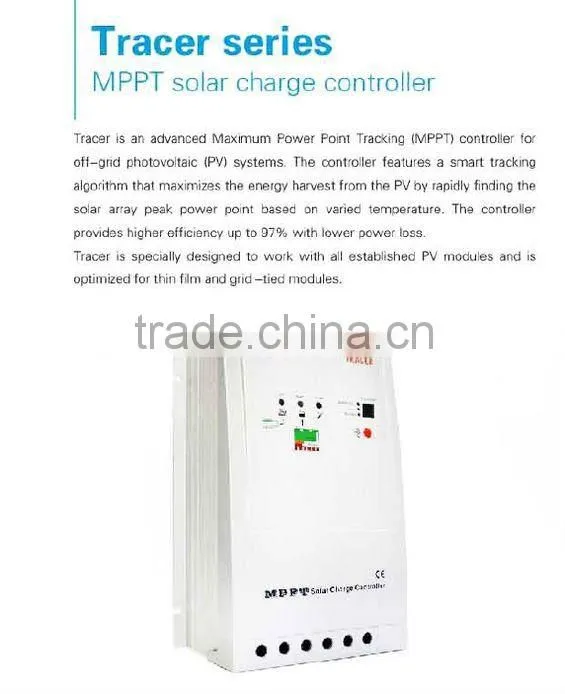

Tracerseries controller adopts MPPT technology (Maximum Power Point Tracking).

Theadvanced tracking algorithm make the solar module operate at ideal voltagewhich the solar modules can produce the maximum available power.

Comparedto conventional PWM controller, MPPT technology increase charge efficiency upto 30% and decrease the power of solar array needed.

Tracerhas the ability to step-down the higher voltage solar array to recharge a lowervoltage battery bank. Max. 150VDC input. So it allows on grid solar modules orthin film modules to charge the off-grid battery. And the cable size can bereduced because of the small current from the solar array.

TheTracer series controller is for off-grid solar system and control the chargingand discharging of the battery.

Thecontroller features a smart tracking algorithm inside that maximizes the energyfrom the solar PV module(s) and charge the battery. At the same time, the lowvoltage disconnect function (LVD) will prevent the battery damage from batteryover discharging.

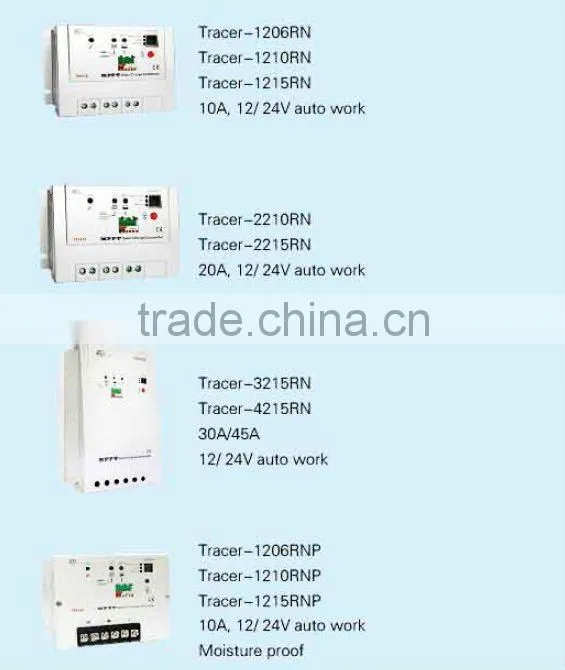

Model	Tracer-1206/1210/1215RN	Tracer-1206/1210/1215RN	Tracer-3215RN	Tracer-4215RN
System voltage	12 / 24VDC	12 / 24VDC	12 / 24VDC	12 / 24VDC
Rated Battery Current	10A	20A	30A	45A
Rated Load Current	10A	20A	20A	20A
Max. PV Input Power	12V System 130W 24V System 260W	12V System 260W 24V System 520W	12V System 390W 24V System 780W	12V System 585W 24V System 1170W
