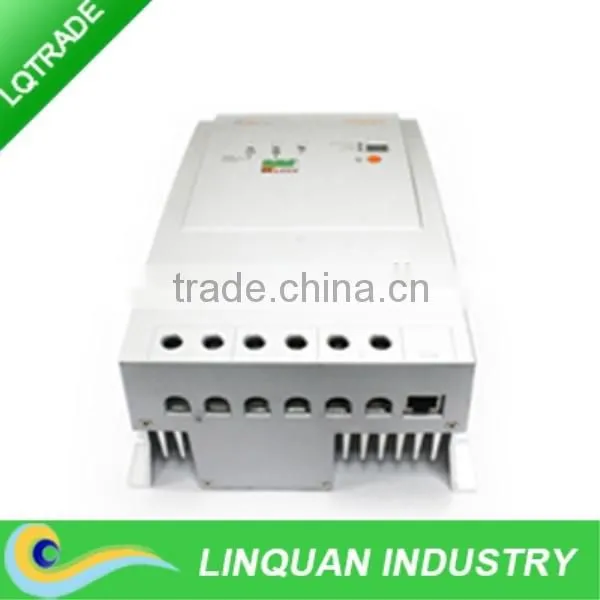

20A12/24V Auto work MPPT solar charge controller with dual timer
Tracer series solar controller is an advanced Maximum Power Point Tracking (MPPT) controller for off-grid photovoltaic (PV) systems. The MPPT controller features a smart tracking algorithm that maximizes the energy harvest from the PV by rapidly finding the solar array peak power point based on varied temperature. The MPPT controller provides higher efficiency up to 97% with lower power loss.
Tracer is specially designed to work with all established PV modules and is optimized for thin film and grid –tied modules.
Features:
·MPPT technology
·Peak conversion efficiency of 97%
·High Tracking efficiency of 99%
·Several seconds tracking speed
·4-Stage charge with PWM output
·Nature convection cooling
·Full power output in ambient temperature up to 45 ℃
·Temperature compensation
·Sealed, Gel and Flooded battery option
·Widely used, automatically recognize day/night
·Diversified load control
·RJ45 interface &optional meter
·2 years warranty
·CE certificate
Electronic Protections:
·PV short circuit protection
·PV reverse polarity protection
·PV overvoltage alarm protection
·PV over current protection
·Battery overcharge protection
·Battery over discharge protection
·Battery reverse polarity protection
·Load short circuit protection
·Load overload protection
Specification:
| Model | Tracer-1210RN | Tracer-1215RN | Tracer-2210RN | Tracer-2215RN | Tracer-3215RN | Tracer-4210RN |
| Rated system voltage | 12/24V auto work | 12/24V auto work | 12/24V auto work | 12/24V auto work | ||
| Rated battery current | 10A | 20A | 30A | 40A | ||
| Rated load current | 10A | 20A | 20A | 20A | ||
| Max.battery voltage | 32V | 32V | 32V | 32V | ||
| Max.PV open circuit voltage | 100VDC | 150VDC | 100VDC | 150VDC | 150VDC | 100VDC |
| Max.PV input power | 12V 130W; 24V 260W | 12V 260W, 24V 520W | 12V 390W, 24V 780W | 12V 500W, 24V 1000W | ||
| Self-consumption | <10mA(24V) | <10mA(24V) | <10mA(24V) | <10mA(24V) | ||
| Charge Circuit Voltage Drop | ≤0.26V | ≤0.26V | ≤0.26V | ≤0.26V | ||
| Discharge Circuit Voltage Drop | ≤0.15V | ≤0.15V | ≤0.15V | ≤0.15V | ||
| Communication | TTL232 / 8 pin RJ45 | TTL232 / 8 pin RJ45 | TTL232 / 8 pin RJ45 | TTL232 / 8 pin RJ45 | ||
| pensation | -5mV/℃/2V | -5mV/℃/2V | -5mV/℃/2V | -5mV/℃/2V | ||
| Working temperature | -35℃~+55℃ | -35℃~+55℃ | -35℃~+55℃ | -35℃~+55℃ | ||
| Storage temperature range | -35℃~+80℃ | -35℃~+80℃ | -35℃~+80℃ | -35℃~+80℃ | ||
| Humidity | 10%-90% NC | 10%-90% NC | 10%-90% NC | 10%-90% NC | ||
| Enclosure | IP30 | IP30 | IP30 | IP30 | ||
| Altitude | ≤3000m | ≤3000m | ≤3000m | ≤3000m | ||
| Dimension | 156mm x 97mm x 68mm | 169mm x 118mm x 83mm | 242mm x 169mm x 91mm | 242mm x 169mm x 91mm | ||
| Mounting holes | 147mm x 60mm | 160mm x 80mm | 180mm x 160mm | 180mm x 160mm | ||
| Mounting hole size | Φ5 | Φ5 | Φ5 | Φ5 | ||
| Terminal | 4mm2 | 10mm2 | 25mm2 | 25mm2 | ||
| Weight | 0.55kg | 0.95kg | 2kg | 2.05kg | ||
Our solar charge controller can be packed as follows:
| Model | Product size(cm) | PCS/CTN | Carton size(cm) |
| Tracer-1210RN | 15.6*9.7*6.82 | 24 | 49.0*38.5*26.5 |
| Tracer-1215RN | 15.6*9.7*6.82 | 24 | 49.0*38.5*26.5 |
| Tracer-2210RN | 16.9*11.8*8.3 | 12 | 44.0*41.0*21.0 |
| Tracer-2215RN | 16.9*11.8*8.3 | 12 | 44.0*41.0*21.0 |
| Tracer-3215RN | 24.2*16.9*9.1 | 6 | 39.5*28.5*32.5 |
| Tracer-4210RN | 24.2*16.9*9.1 | 6 | 39.5*28.5*32.5 |
1 General Installation Notes
1)Read through the entire installation section first before beginning installation.
2)Be very careful when working with batteries. Wear eye protection. Have fresh water available to wash and clean any contact with battery acid.
3)Uses insulated tools and avoid placing metal objects near the batteries.
4)Explosive battery gasses may be present during charging. Be certain there is sufficient ventilation to release the gasses. 5)Avoid direct sunlight and do not install in locations where water can enter the controller.
6)Loose power connections and/or corroded wires may result in resistive connections that melt wire insulation, burn surrounding materials, or even cause fire. Ensure tight connections and use cable clamps to secure cables and prevent them from swaying in mobile applications.
7)Use with Gel, Sealed or Flooded batteries only.
8)Battery connection may be wired to one battery or a bank of batteries. The following instructions refer to a singular battery, but it is implied that the battery connection can be made to either one battery or a group of batteries in a battery bank.
9) Select the system cables according to 3A/mm2 current density.
2.Mounting
Step 1: Choose Mounting Location Locate the Tracer on a vertical surface protected from direct sun, high temperature, and water.
Step 2: Check for Clearance.Place the Tracer in the location where it will be mounted. Verify that there is sufficient room to run wires and that there is sufficient room above and below the controller for air flow.
Step 3: Mark Holes Use a pencil or pen to mark the four (4) mounting hole locations on the mounting surface.
Step 4: Drill Holes Remove the controller and drill four sizeable holes in the marked locations.
Step 5: Secure Controller Place the controller on the surface and align the mounting holes with the drilled holes in step 4. Secure the controller in place using the mounting screws.

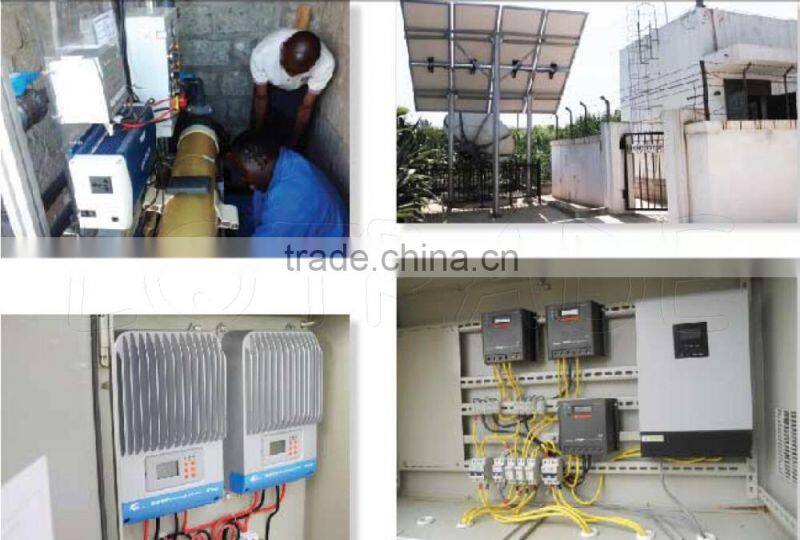

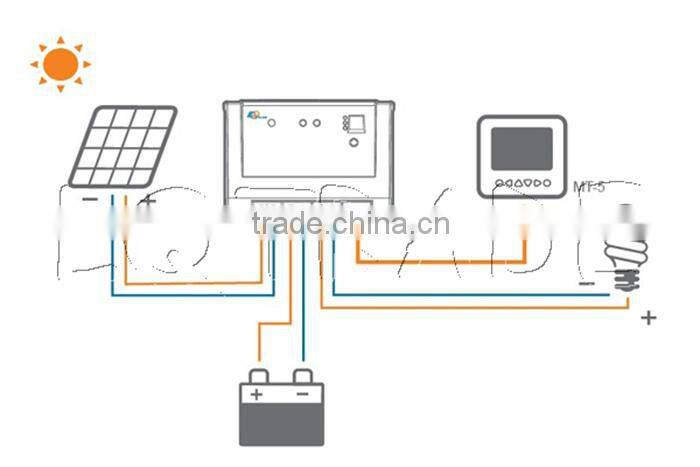

The Tracer series controller is for off-grid solar system and control the charging and discharging of the battery, especially suitable for the street light system. The controller features a smart tracking algorithm inside that maximizes the energy from the solar PV module(s) and charge the battery. At the same time, the low voltage disconnect function (LVD) will prevent the battery from over discharging.
