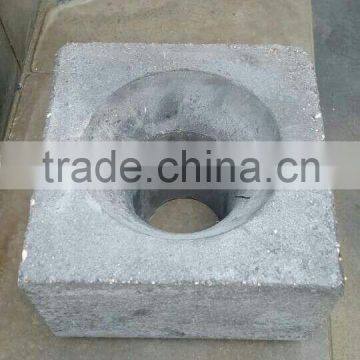

LQ C10 Tundish Well Block

LQ C10 Tundish Well Block thumbnail-1
LQ C10 Tundish Well Block thumbnail-2
LQ C10 Tundish Well Block photo-1
LQ C10 Tundish Well Block photo-2
US$ 10 - 50 MOQ: 1 Metric Ton
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Shape:
Block
Material:
Alumina Block
Contact Supplier Request Quote Chat Now
Jinan Linquan Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin etc.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Shape Block
Material Alumina Block
SiO2 Content (%) None
Al2O3 Content (%) ≥ 70%
MgO Content (%) None
CaO Content (%) None
CrO Content (%) None
SiC Content (%) None
Model Number LQWB-AL75
Brand Name Linquan

LQ Tundish Well Block with Metering Zirconia Nozzle





Product Description

 LQ C10 Tundish Well Block



LQ C10 Tundish Well Block



LQ C10 Tundish Well Block



LQ C10 Tundish Well Block



1)High Temperature Burnt Slide Plate

This product adopts tabular alumina, carbonaceous material and zirconia-containing material as main raw materials, adds in high performance antioxidants, uses phenolic resin as binder, formed under high-pressure and burned under high temperature. Mainly used in large and medium-sized ladle.



Physical and chemical properties:

Chemical and Physical Properties

Al-C Slide Gate Plate

Al-Zr-C Slide Gate Plate

LQSP-70

LQSP -75

LQSP -80

LQSP -85

LQSP -86

LQSP -70

LQHSP-75

LQHSP -77

Al2O3,%

70

75

80

85

86

70

75

77

C,%

7

7

5

5

4

7

7

7

ZrO2,%

-

-

-

-

-

6

6

2.5

A.P.,%   max

10

10

10

10

7

10

10

10

B.D.,g/cm3

2.8

2.9

2.9

3.0

2.95

3.00

3.05

2.90

C.C.S.,   MPa  min

65

70

100

100

100

110

115

100



2) Unburned Slide Plate



No need to be burned, tar impregnated and distilled, simple processing. This product mainly used in small and medium-sized ladle.



Physical and chemical properties:

Chemical and Physical Properties

Al-C Slide Gate Plate

LQUSP-70

LQUSP-75

LQUSP-80

LQUSP-85

LQUSP-86

Al2O3,%

70

75

80

85

86

C,%

7

7

5

5

4

A.P.,%  max

10

10

8

10

7

B.D. g/cm3   min

2.8

2.9

3.0

3.0

2.95

C.C.S., MPa  min

65

70

100

100

100



1. Serivice life depends on steel-making condition, refractory slide gate and different operation mode. The above performance is based on the conditions of ladles with capacity of over 100 tonnes.

2. For composited slide plate, we can mark different material in different part and detailed indexes according to the drawings.

3. Delivery time depends on the drawing. If new moulds are needed, an additive period may be necessary. It ususlly takes 35-50 days.



Packaging & Shipping

 LQ C10 Tundish Well Block



LQ C10 Tundish Well Block







LQ C10 Tundish Well Block
