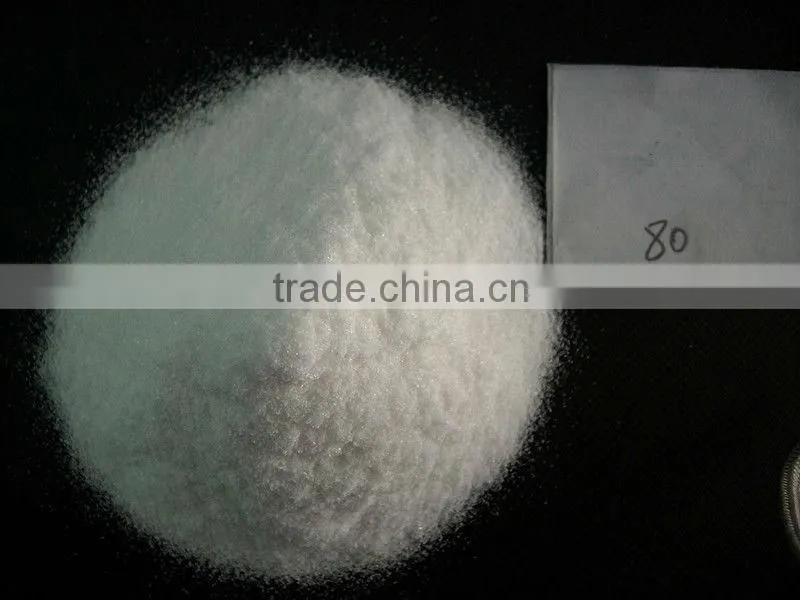

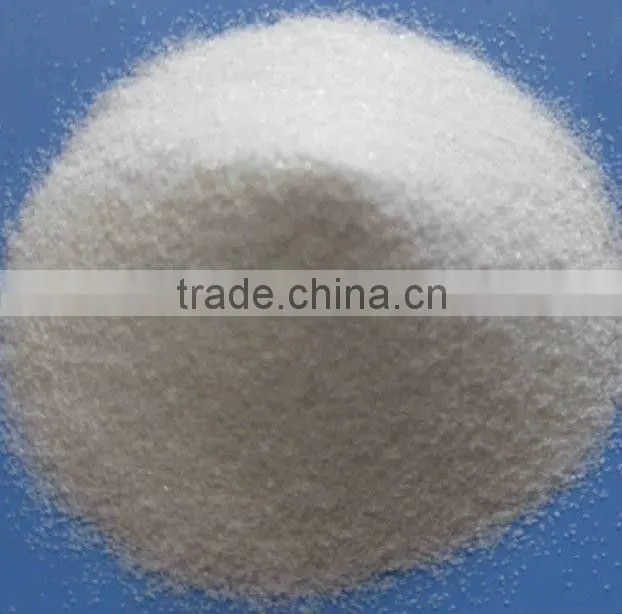

Ladle Refractory Castable mortar
Features:
1.Good construction performance.
2.High strength, good bulk stability.
3.Good insulation, high temperature resistance, good thermal shock resistance.
4.Good slag resistance, good resistance to abrasion.
5.Good corrosion resistance.Scouring resistance
Application:
1.Used as lining turning kiln, hot converter lining heat treatment furnace.
2.Furnaces of metallurgy industry, chemical industry and construction industry.
3.Circulation part of furnaces.
Physical properties:
Bulk density g/cm3 % min |
3.18 |
||
Open porosity % max |
15.0 |
||
|
Perm.lin. change of dimension (%) |
C.C.S(MPa) |
Thermal conductivity (W/mK) |
110°C*24h |
-0.03 |
40 (min) |
9.14(500°C) |
800°C*3h |
+0.02 |
86(min) |
7.12(800°C) |
1000°C*3h |
+0.04 |
100(min) |
4.32(1200°C) |
1600*°C*3h |
+0.10 |
180(min) |
|
Chemical properties:
Al2O3 |
Cr2O3 |
SiO2 |
CaO |
93% min |
4.0% min |
0.2% max |
1.2% max |
1) 15/20/25kg/unit(plastic woven bag); 1 MT in P.P bag(waterproof) with sling.
2) 15/20/25kg/unit(plastic woven bag); 1 MT on pallet with plastic film.
3) According to customer's request.
Jinan Linquan Industry and Trade Group Co., Ltd. is a collection of scientific research, design,development,production,and import andexport trade in one group of Companies, a national large-scale backbone enterprise for refractory materials.
Our company covers an area of more than 300 thousand square meters, have advanced technology and equipment,testing equipmentand instruments. We mainly produce fireclay refractories, high aluminum refractories, carbon-containing refractories,and have the
production line of a variety of high-purity synthetic materials.
Our most popular products: All series of Ladle and Tundish refractories,Castable refractories
Our annual production capacity of slide gate plates is more than 80,000 tons.
