Help CenterQT6-15 Cement Block Machine Factory,fully Automatic Block Making Machine
Related Products
-
QT3-15 Semi-automatic Concrete Brick Making Machine for Hollow Block Solid Brick Paving BrickUS$ 1 - 20000MOQ: 1 Set -
Semi Cement Concrete Bricks Blocks Pavers Molding Machine QT3-20US$ 800 - 11,000MOQ: 1 Set
-
QT5-15 China Concrete Hollow Blocks Machine for Sale With CE ISOUS$ 1,500 - 40,000MOQ: 1 Set
-
Automatic Hydraulic Concrete Paver Brick Molding Machine for SaleUS$ 1,500 - 40,000MOQ: 1 Set
-
QT6-15 Paving Block Making Machine Price List Suppliers in South AfricaUS$ 1 - 30000MOQ: 1 Set
Real manufacture,direct price
Qualified engineer team,help install equipments abroad
Perfect after-sales service
Siemens motor,Germany technology.
Advantage of automatic block making machine QT6-15 concrete interlocking block machine automatic/concrete block making machine
1.Oil hydraulic machine according to the standard of intenational.
2.The vibration system contains platform vibration and mould vibration, so the products is very close-grained and produced quickly.
3.Machine frame: Maganese steel with China national standard
4.PLC intelligent control. Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function.
5.The computer is of fault diagnosis system. Warning signal is propitious to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny, controlling, diagnosis.
A: Production capacity
B:Technical data
Technical Parameter of QTY6-15A | |||
machine size |
4x2x3m |
Pallet size |
900x700mm |
machine power |
31.7kw |
Weight |
7Ton |
Test pressure |
16Mpa/cm2 |
Mixer |
JS500 |
Vibration forece |
50kn |
Belt conveyor |
8m |
Forming cycle |
12-20s |
Voltage |
220/380/440 |
Forming style |
Hydraulic |
Block height |
40~280mm |
Control style |
PLC |
Material consumption |
150~190tons |
Electric consumption |
70Kw.h |
Water consumption |
9tons |
Working Area(2000Sqm) | |||
Workshop area |
25m(L)*8m(W)*3.5m(H) |
||
Storage yard area |
1800sqm |
||
Worker(4~8 workers) | |||
Loading materials – one worker |
Mixer – one worker |
||
Molding machine – one worker |
Forklift – one worker |
||
If use automatic pallet lifting machine, it only need Four workers ! | |||

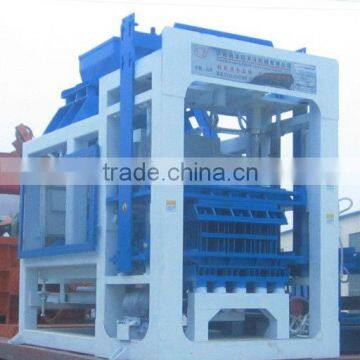

QT6-15A is a kind of full automatic block making machine,can produce hollow block,solid brick,paver brick and curbs.
Block size can be adjusted per your actual needs.
To make different block,just change the mould.
Machine in Nicaragua
Welcome to visit our factory
1. All kinds of mould can be made by customer's drawings
2. All price are based on FOB, QINGDAO, China
3. Payment: by T/T 30% down payment, 70% upon machinery completion.
4. Delivery: After finishing all the payment
5. All the parameters above just for reference, for they are updating all the time
6. Package: Nude packing in 20GP
7. Warranty: All the machine enjoys one year’s warranty, in this period , any problems or parts Of the machine, please feel free to contact us . We will try our best to make it
Kindly conctact me if take interest in our block machine
