Help CenterQT5-15 China Concrete Hollow Blocks Machine for Sale With CE ISO
Related Products
-
Automatic Hydraulic Concrete Paver Brick Molding Machine for SaleUS$ 1,500 - 40,000MOQ: 1 Set -
QT6-15 Paving Block Making Machine Price List Suppliers in South AfricaUS$ 1 - 30000MOQ: 1 Set
-
QT3-15 Interlocking Paving Block Machine Price, Cement Hollow Block Moulding MachineUS$ 1 - 20000MOQ: 1 Set
-
Concrete Interlocking Semi Block Making Machine for South Africa QT3-20US$ 800 - 11,000MOQ: 1 Set
-
QT6-15 Interlocking Full Automatic Cement Concrete Burning-free Hollow Block Molding MachineUS$ 1 - 30000MOQ: 1 Set

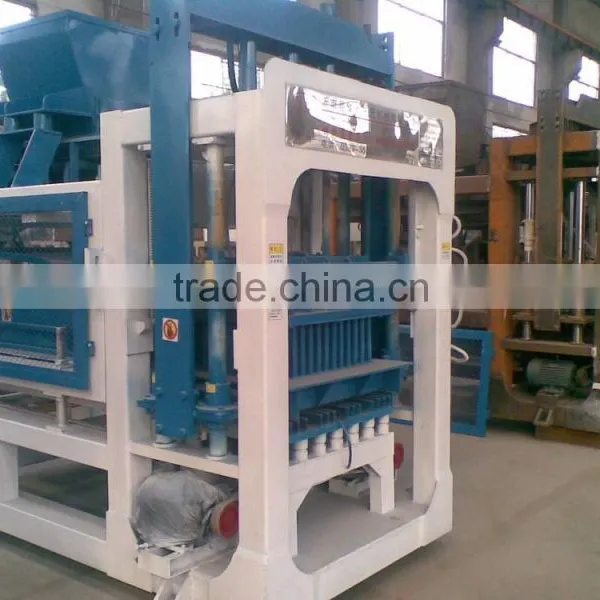

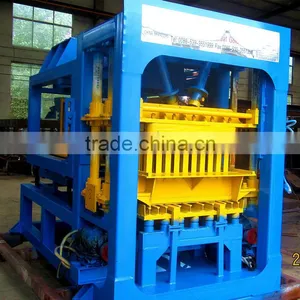

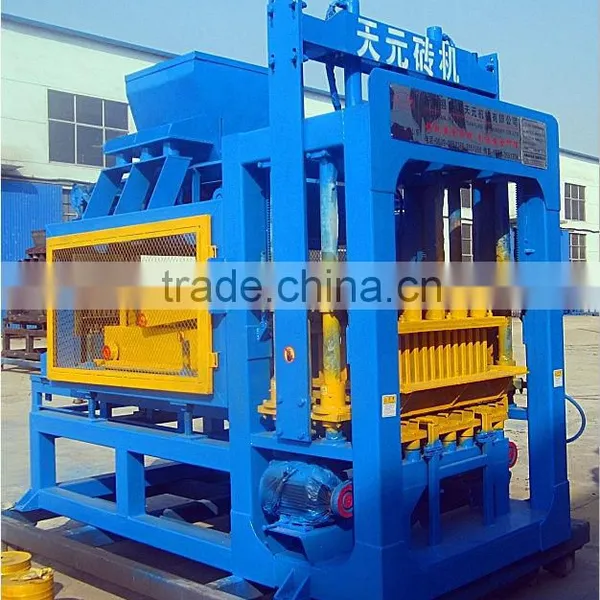

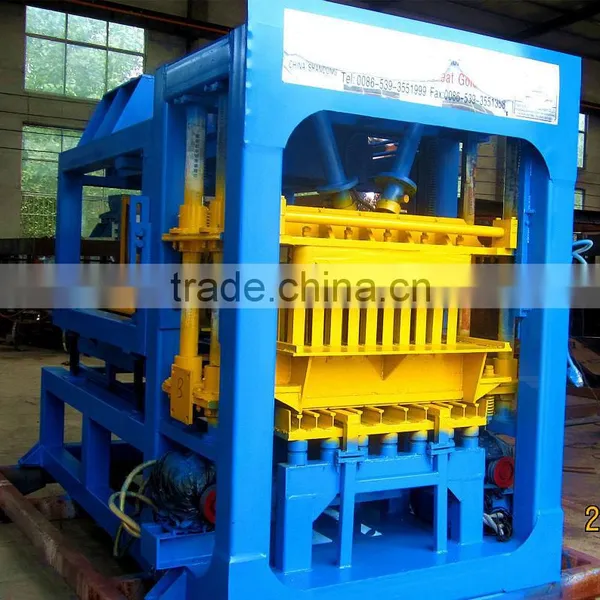

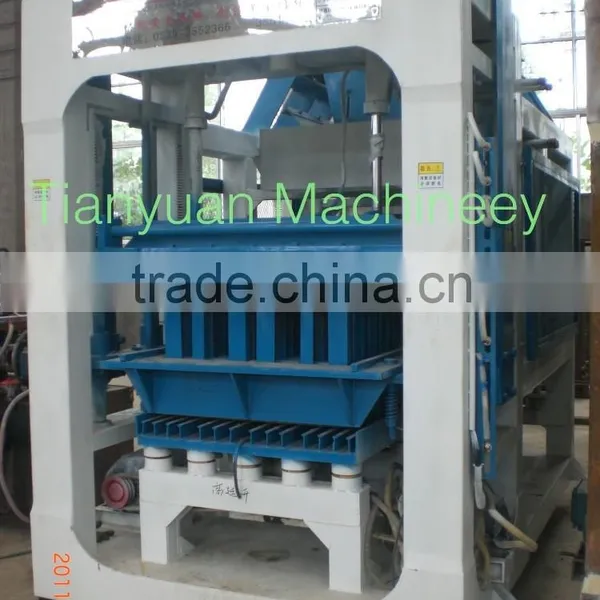

1: Main machine picture QT5-15, QTY5-20, QTY5-15 ,
2: Daily capacity ,
Size(LxWxH) mm |
Pcs/Mold |
Pcs/hr |
Pcs/ 8Hr |
400X150X200 |
7 |
1260 |
7560-10080 |
400X200X200 |
5 |
900 |
5400-7200 |
400X100X200 |
10 |
1800 |
10800-14400 |
400X250X200 |
4 |
720 |
4320-5760 |
240X115X53 |
32 |
7680 |
38400-46080 |
200x100x60 |
21 |
3780 |
18900-22680 |
225x112.5X60 |
15 |
2700 |
16200-19440 |
200X160X60 |
15 |
2700 |
13500-16200 |
250X250X60 |
6 |
1080 |
5400-6480 |
3: Parameter ,
Technical Parameter of QTY5-15 Automatic | |||
machine size |
4x2x3m |
Pallet size |
1100x550mm |
machine power |
25kw |
Weight |
6.5Ton |
Test pressure |
16Mpa/cm2 |
Mixer |
JS500 |
Vibration force |
50kn |
Belt conveyor |
8m |
Forming cycle |
12-20s |
Voltage |
220/380/440 |
Forming style |
Hydraulic |
Block height |
40~280mm |
Control style |
By PLC |
Material consumption |
150~190tons |
Electric consumption |
67Kw.h |
Water consumption |
9tons |
Working Area(2000Sqm) | |||
Workshop area |
25m(L)*8m(W)*3.5m(H) |
||
Storage yard area |
1800sqm |
||
Worker(4~8 workers) | |||
Loading materials – one worker |
Mixer – one worker |
||
Molding machine – one worker |
Forklift – one worker |
||
4: Loading and workshop,
5: Molds picture
QTY5-15 cement brick block making machine price
*Huarun Tianyuan Factory
1* We are the professional manufacturer of AAC Block Plant& Concrete Brick Block machine & Expanded Perlite Slab Molding Machine & EPS Insert Concrete Hllow Block Machine, & Fireproof door core making machine, with high technology research develop teams, more than 15years experience in this fields, cover 80000sqm and more than 400 staffs.
2* Our products with CE/ISO certification had been sold to more than 106 countries, and well received high acceptance.
3* We had successfully designed the Slope protection brick machines for South-to-North water diversion project, this is the biggest water diversion project in China Government.
4* We had successfully designed EPS(polystyrene) insert concrete hollow block machines. For chinese North-East building company.
5* We had successfully designed thermal insulation Expaned Perlite Slab molding machines for outside wall heat insulation. We are top leader in Chinese markets, share more than 95% markets.
6* We ensure our products quality and best after sales service.
We will do the best with clients' advice and susgestion.
1> Certification of ISO 9001. CE(MD+LVD)
2> We have inspections every year by National Quality Technical Supervise Department.
3> Our Quality Inspection Department make test of each machine before loading.
7*24hours online service.
@:Designing ,technical support and project;
@Engineer available for overseas installation and adjustment;
@All necessary documents and drawings and videos for free;
@Warranty one year after delivery.
@ 24hours Online service for all life time.
1: Keep the machine in dry environment.
2: Before the first production, please fill hydraulic oil into the tank, keep the oil level higher than 80/180degree. And pay more attention to the oil Pressure.
3: Please check the Sensor position before each shift, and tighten them again.
4: After each shift, please cleaning all the equipments, and lubricating each running parts.
5: Please cut off the Total Power when User maintaining the machine.
6: When need to change mold, please discharge or install them slowly and keep the Up mold foot safety. Please do it as our video.
7: If need technical help, please call 0086-539-3551999, 24hours online service.
Or please chat by Trade manager: cntianyuanzj
Or Send Email: tianyuanzj at .
WhatsApp: 008615006593716
