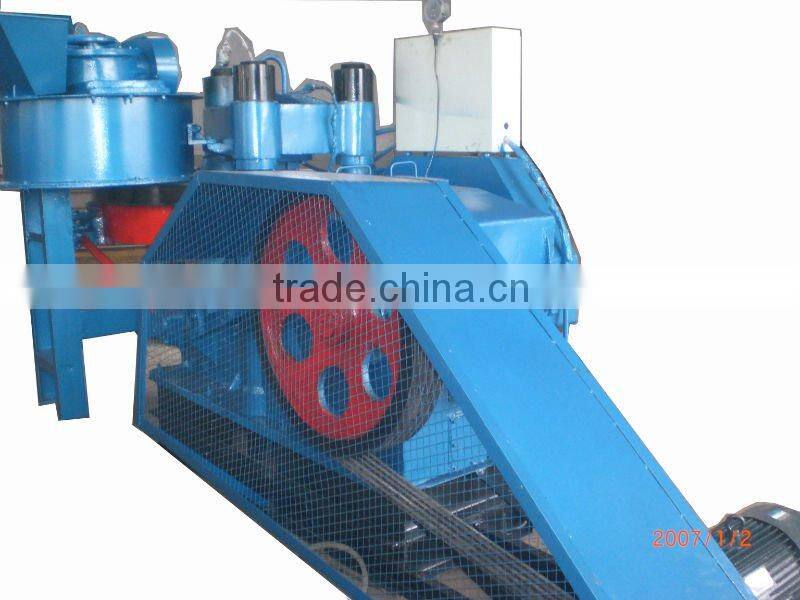

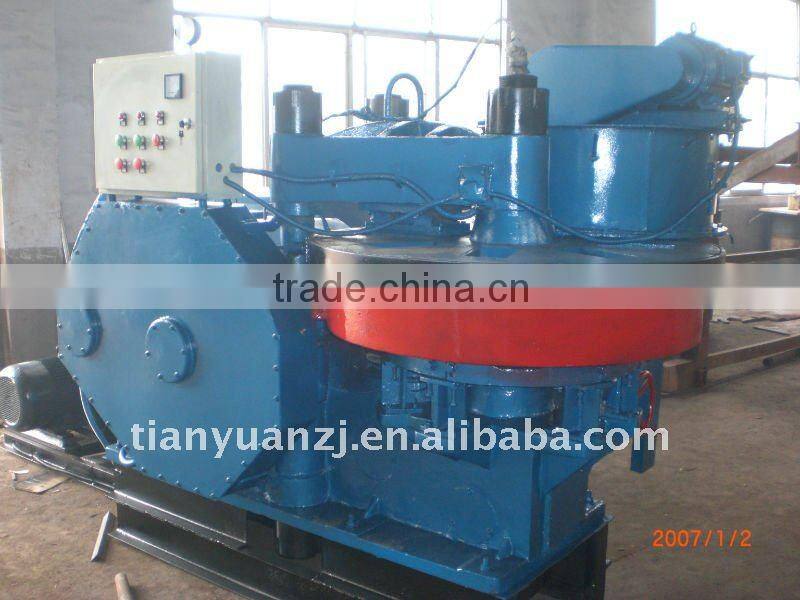

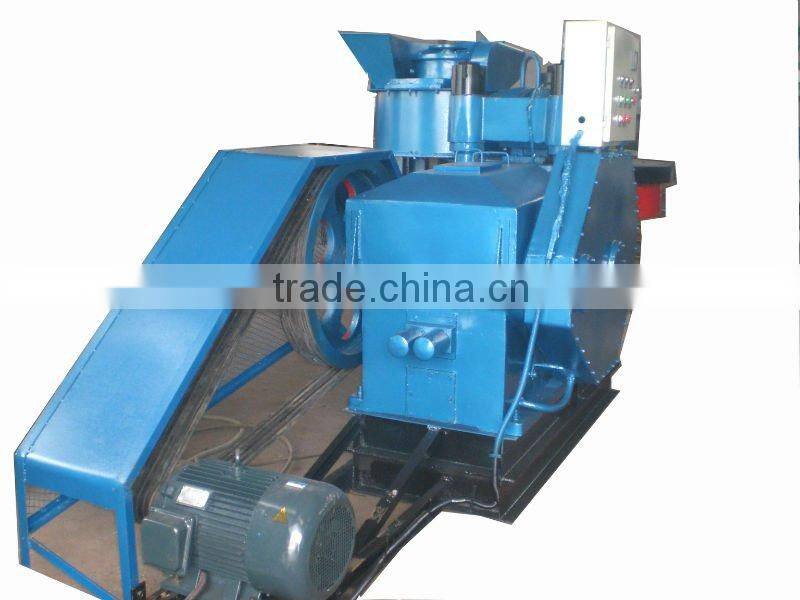

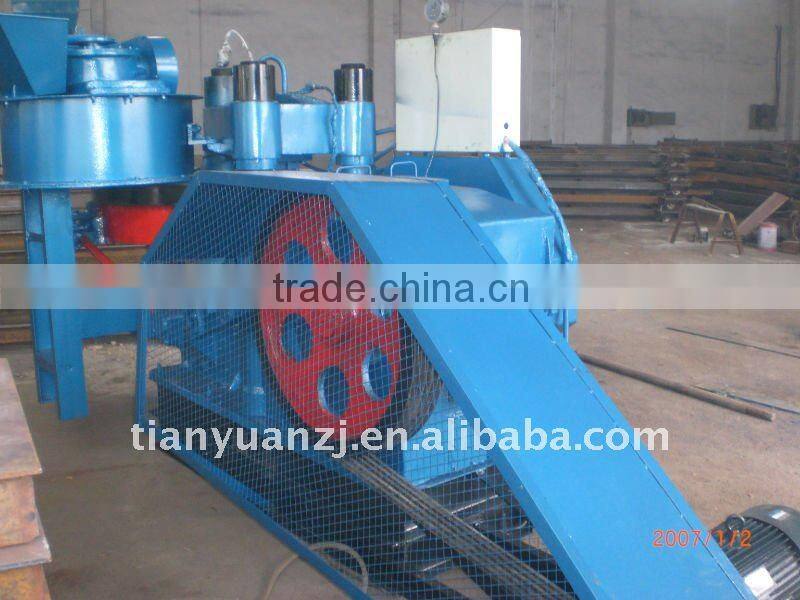

Help CenterCement and Sand Brick Press Machine TY180-8 Brick Press
Related Products
-
Solid Brick Manufacture Machine TY180-8 Brick Press MachineNegotiableMOQ: 1 Set -
Concrete Blocks Making Machine Model TY180-8 Brick PressUS$ 1,000 - 100,000MOQ: 1 Set
-
Concrete Blocks and Pavers Making Machine Model TY180-8 Brick PressUS$ 2,000 - 10,000MOQ: 1 Set
-
Fly Ash and Sand Brick Manufacture TY180-8US$ 6,000 - 36,000MOQ: 1 Set
-
New Concrete Blocks and Pavers Making Machine Model TY180-8 Brick PressUS$ 10,000 - 100,000MOQ: 1 Set
Specifications
cement and sand brick press1.ISO9001&CE
2.high productivity 1s/piece
3.install&debug machine
4.good after sale service
QTY180-8 cement and sand brick press
A: Production capacity of QTY180-8 cement and sand brick press as following:
Size(LXWXH) mm |
Pcs/mould |
Pcs/hr |
Pcs/shift |
240x115x53 |
1 |
3600 |
28800 |
The type QTY180-8 can produce solid sand lime bricks.
B: Technical parameters of QTY180-8 cement and sand brick press
Main machine size |
3000x2200x2200mm |
|
Pallet size |
No need |
Main machine power |
18kw |
|
Weight of machine |
8Ton |
Pressing force |
1800nt |
|
Mixer |
1.5m pan mixer |
Vibration forece |
|
|
Belt conveyor |
8m |
Forming cycle |
1seconds |
|
Voltage |
380v/3phase |
C: QTY180-8 cement and sand brick press other information:
1. Area: Workshop area: 100-150m2, all factory area 3000m2, the bigger, the better.
2. Workers : five.
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4.Solid brick weight::
(240*115*53) :3KG.
5. raw material consumption per day:60-80T
6. water consumption per day:3%-5% of raw material Weight.
D.QTY180-8 cement and sand brick press guarantee:
Our solid sand lime brick making machine is of one year guarantee,during the period we could supply spare parts if they are broken.
E.QTY180-8 cement and sand brick press pressure:
Solid sand lime bricks can reach 10-12Mpa,so they have a high pressure,can be used widely.
