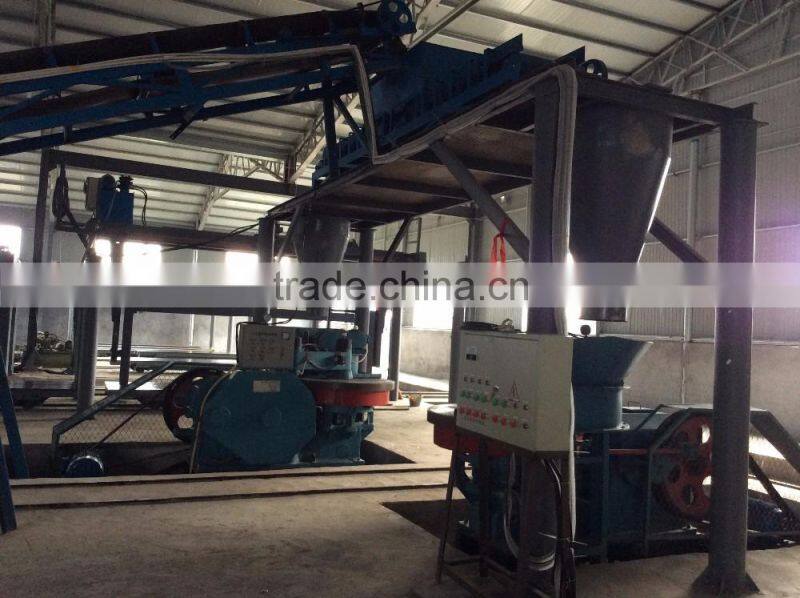

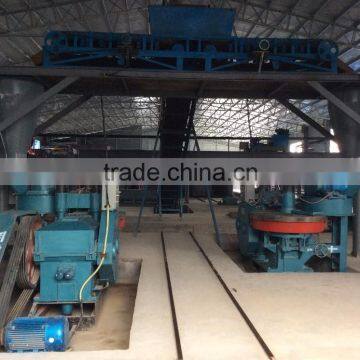

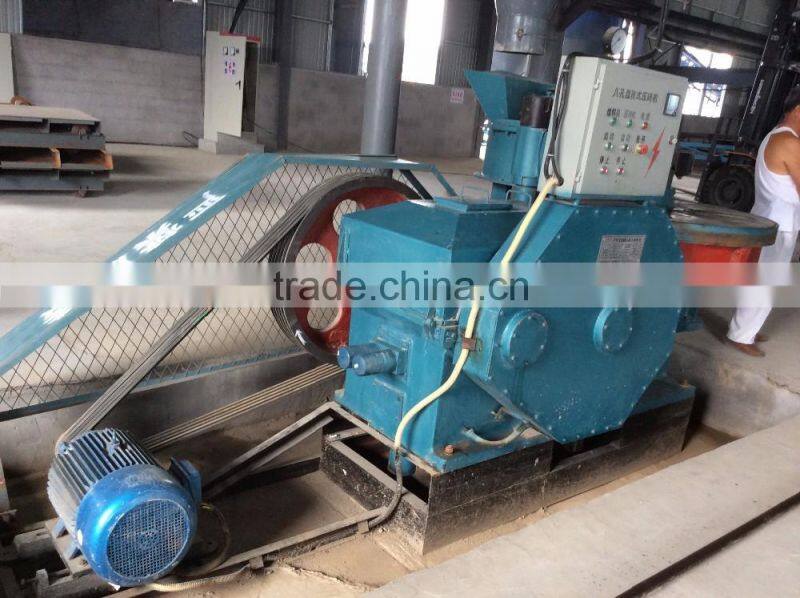

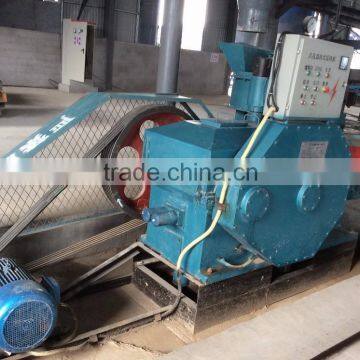

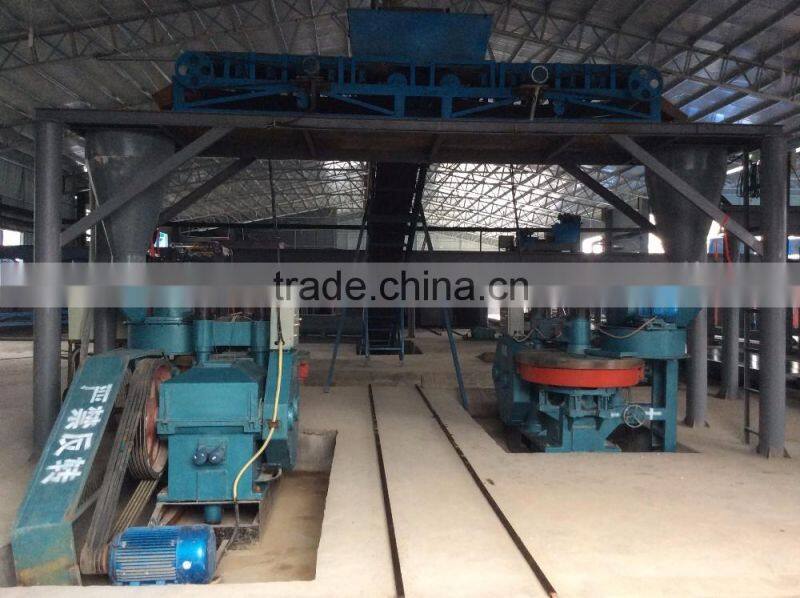

QTY180-8 fly ash lime sand brick moulding machine (Tianyuan brand)
A: Production capacity of TY180-8 Fly ash lime sand solid brick making machine
Size(LXWXH) mm | Pcs/mould | Pcs/hr | Pcs/8hr |
240x115x53 | 1 | 3600 | 28800 |
The type QTY180-8 can produce solid sand lime bricks.
B: Technical parameters of QTY180-8 Fly ash lime solid brick making machine:
Main machine size | 3000x2200x2200mm |
| Pallet size | No need |
Main machine power | 18kw |
| Weight of machine | 8Ton |
Pressing force | 1800nt |
| Mixer | 1.5m pan mixer |
Vibration forece |
|

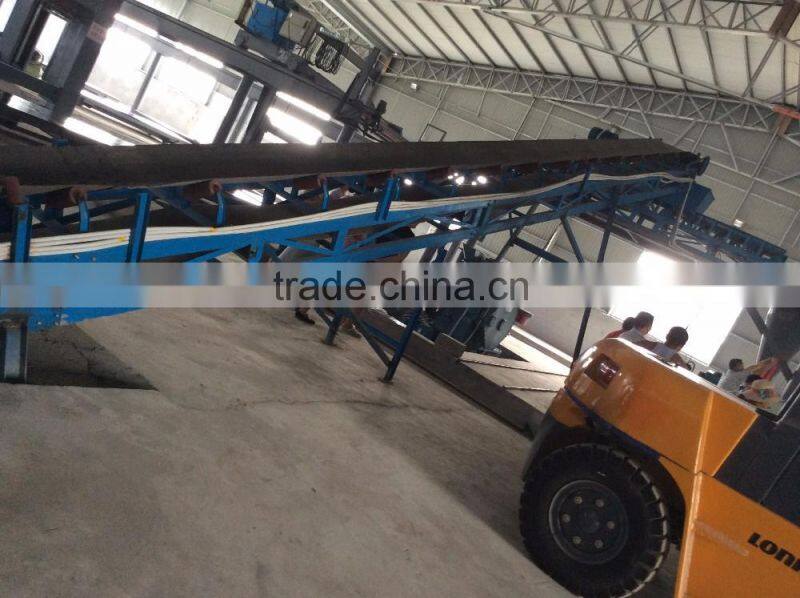

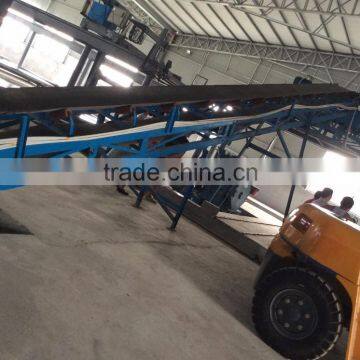

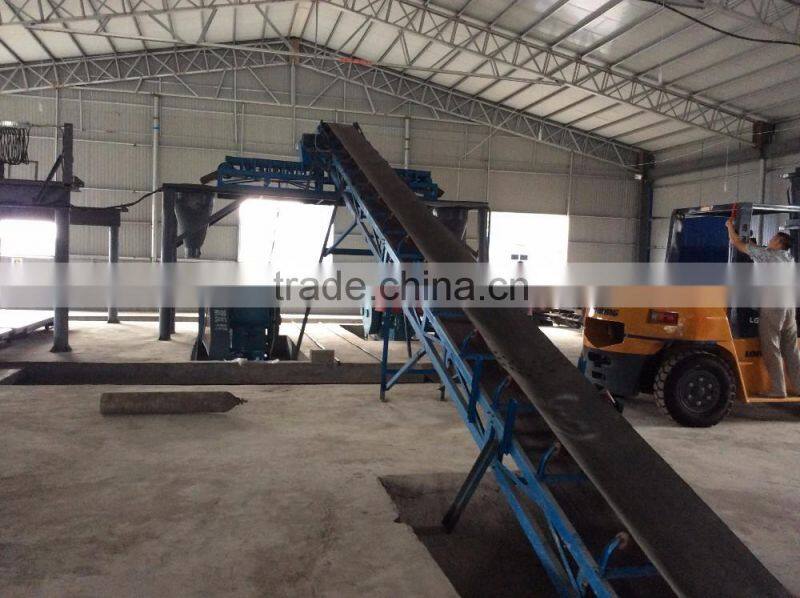

| Belt conveyor | 8m |
Forming cycle | 1seconds |
| Voltage | 380v/3phase |
C:other information of QTY180-8 Fly ash lime solid brick making machine
1. Area: Workshop area: 100-150m2, all factory area 3000m2, the bigger, the better.
2. Workers : five.
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4.Solid brick weight::
(240*115*53) :3KG.
5. raw material consumption per day:60-80T
6. water consumption per day:3%-5% of raw material Weight.
D.guarantee for QTY180-8 Fly ash lime solid brick making machine
Our solid sand lime brick making machine is of one year guarantee,during the period we could supply spare parts if they are broken.
duction pressure of QTY180-8 Fly ash lime solid brick making machine:
Solid sand lime bricks can reach 10-12Mpa,so they have a high pressure,can be used widely.

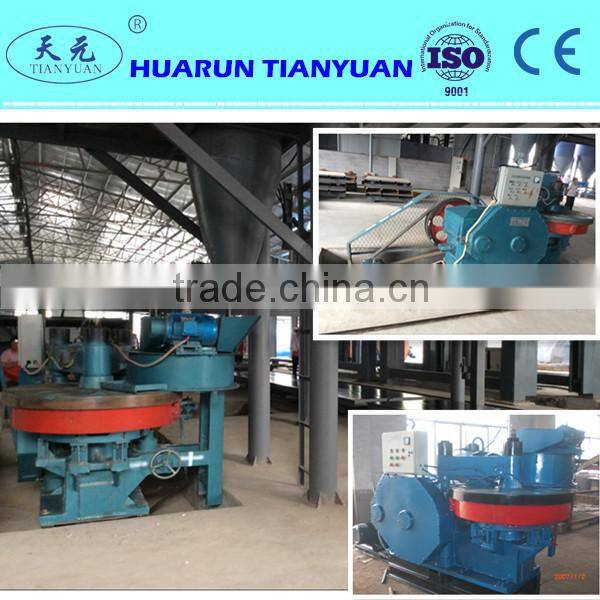

*Huarun Tianyuan Factory
1* We are the professional manufacturer of AAC Block Plant& Concrete Brick Block machine & Expanded Perlite Slab Molding Machine & EPS Insert Concrete Hllow Block Machine, & Fireproof door core making machine, with high technology research develop teams, more than 15years experience in this fields, cover 80000sqm and more than 400 staffs.
2* Our products with CE/ISO certification had been sold to more than 106 countries, and well received high acceptance.
3* We had successfully designed the Slope protection brick machines for South-to-North water diversion project, this is the biggest water diversion project in China Government.
4* We had successfully designed EPS(polystyrene) insert concrete hollow block machines. For chinese North-East building company.
5* We had successfully designed thermal insulation Expaned Perlite Slab molding machines for outside wall heat insulation. We are top leader in Chinese markets, share more than 95% markets.
6* We ensure our products quality and best after sales service.
We will do the best with clients' advice and susgestion.
1> Certification of ISO 9001. CE(MD+LVD)
2> We have inspections every year by National Quality Technical Supervise Department.
3> Our Quality Inspection Department make test of each machine before loading.
7*24hours online service.
@:Designing ,technical support and project;
@Engineer available for overseas installation and adjustment;
@All necessary documents and drawings and videos for free;
@Warranty one year after delivery.
@ 24hours Online service for all life time.
1: Keep the machine in dry environment.
2: Before the first production, please fill hydraulic oil into the tank, keep the oil level higher than 80/180degree. And pay more attention to the oil Pressure.
3: Please check the Sensor position before each shift, and tighten them again.
4: After each shift, please cleaning all the equipments, and lubricating each running parts.
5: Please cut off the Total Power when User maintaining the machine.
6: When need to change mold, please discharge or install them slowly and keep the Up mold foot safety. Please do it as our video.
7: If need technical help, please call 0086-539-3551999, 24hours online service.
Or please chat by Trade manager: cntianyuanzj
Or Send Email: tianyuanzj at .
WhatsApp: 008615006593716
