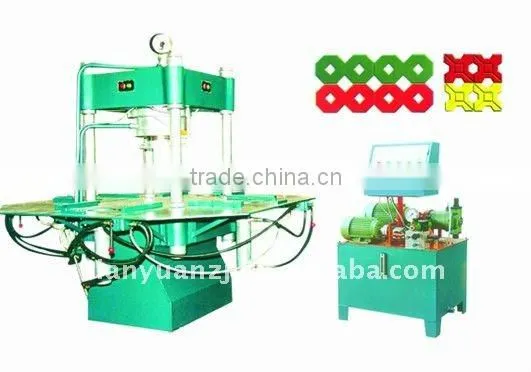

Paver/curbs making machine 850,manual operation
- 80 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- XIEXING XQY2000 Hydraulic pressure molding machine for sale
- XQY3-10 semi automatic cement block making machine
- XIEXING XQY3000A Hydranlic pressure block forming machine for sale
- Top quality and hot sale competitive price XQY3-10 manual block making machine
- Hot-saling and high efficiency XQY3-10 manual block making machine in india
- Hydraulic pressure curbstone interlocking block machine
Product Details
Type: | Paving Block Making Machine | Brick Raw Material: | Concrete | Processing: | Brick Production Line |
Method: | Hydraulic Pressure | Automatic: | No | Capacity: | 3500 pcs/8hrs |
Place of Origin: | Shandong, China | Brand Name: | TianYuan | Model Number: | 850 |
Power: | 8.5 kw | Voltage: | 380v/3phase | Warranty: | 1 year |
Product Description
Specifications
1:Technician help installing2:Hydraulic automatic
3:manual operation
4:225X112.5X60mm:3500 pc/8hrs
5:CE/ISO
850 Manual Solid Paving Brick Making Machine-high pressure
1.Professioanl paver making machine.

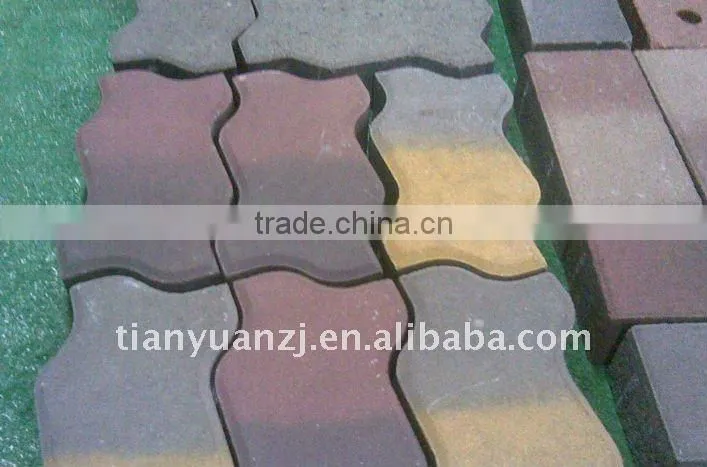

2.Can produce various kinds of pavers and curbs.
3.Manual operation,hydraulic function.
Professional paving machine, can produce various kinds of paver locks, only by changing the mould.
A: Production capacity of 850 as following:
Size(LXWXH) mm | Pcs/mould | Pcs/hr | Pcs/8hr |
350x350x120 | 1 | 200 | 1600 |
200x100x50 | 1 | 440 | 3500 |
B: Technical parameters of 850:
Main machine size | 2100x2100x2000mm |
| Pallet size | No need |
Main machine power | 8.5kw |
| Weight of machine | 2.7Ton |
Forming cycle | 60seconds |
| Voltage | 380v/3phase |
C: 850 paving brick making machine other information:
1. Area: Workshop area: 30-50m2, all factory area 1000m2, the bigger, the better.
2. Workers : three or four.
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
lid brick weight:
(240*110*53) :3KG
5. raw material consumption per day:10-12T
6. water consumption per day:3%-5% of raw material Weight.
D.850 paving brick making machine guarantee:
Our hollow block making machine is of one year guarantee,during the period we could supply spare parts if they are broken.
E.850 paving brick making machine production pressure:
Hollow blocks can reach 8-10Mpa,Solid bricks can reach 10-12Mpa,so they have a high pressure,can be used widely.
