TY-850 interlock hydraulic Curb stone paver brick machine
TY-850 interlock hydraulic Curb stone paver brick machine
Cherry Song
Skype:songmeihcan
Email:tianyuan24 at
QQ:691440816
Wechat/Whatsapp:0086-13573255350
TY-850 interlock hydraulic Curb stone paver brick machine parameter
Rated pressure |
150T |
Total power |
11kw |
production |
2500-3500 pieces/8 hours |
Machine weight |
3.6t |
Machine size |
1900x1900x1860mm |
Products Maximum specification |
500x500x150mm |
Working position |
Four working positions |
products |
Can make all kind of paver block, curbstone, lawn block etc |
TY-850 interlock hydraulic Curb stone paver brick machine parameter
1. Area: Workshop area: 50-60m2, all factory area 1000m2, the bigger, the better.
2. Workers : four or five
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4. water consumption per day:3%-5% of raw material .Weight.
3. TY-850 interlock hydraulic Curb stone paver brick machine
guarantee:
We give our kerb stone machine one year guarantee,during the period we can supply spares free if they are broken.
4. TY-850 interlock hydraulic Curb stone paver brick machine
production pressure:
Hollow blocks can reach 8-10Mpa,Solid bricks can reach 10-12Mpa,paving block can reach 15-20 Mpa ,so they have a higt pressure,can be widely used.

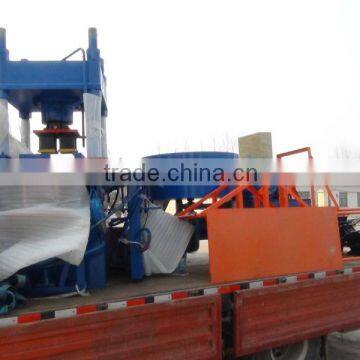

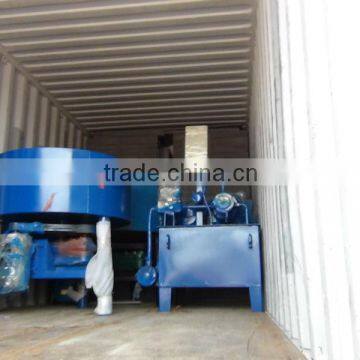

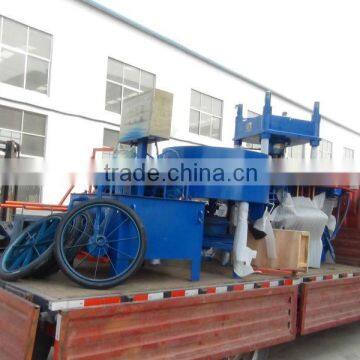

Packing:
Nude or plastic packing ,16cbm , in LCL or 20GP container.
24hours at service.
@:Designing ,technical support and project;
@Engineer available for overseas installation and adjustment;
@All necessary document and drawing and video for free;
1* We are the professional AAC Block Plant& Concrete Brick machine & Expanded perlite plate molding machine & EPS insert concrete hollow block machine supplier for 14 years, with 268 high qualified staff, and 20 engineers, 30 assistant engineers.
2* Our products with CE/ISO certification had been sold to more than 65 countries, such as Russia, Sultan,Burma ,India, Brazil and so on.
And we already have abroad offices, such as Brazil, India, Vietnam, Sri Lanka.
3* We had successfully designed the Slope protection brick machines for South-to-North water diversion project, this is the biggest water diversion project in China.
4* We had successfully designed EPS insert concrete hollow block machines. For chinese North-East building company.
5* We had successfully designed thermal insulation expaned perlite board making machines for outside wall heat insulation. We are top leader in Chinese markets.
6* We ensure our products are Brand – new and it were had pruduced by ISO QUALITY, and supply best after sales service.
We could do the best with yours' advice and susgestion.
Warmly welcome to visit our factory!
And thanks for your kind enquiry!
If need more information, please kindly contact us !
1: Delivery : 25days after advanced payment.
2: Keep the machine in dry environment.
3: After each shift, please cleaning all the equipments, and lubricating each running parts.
4: If need technical help, please call 0086-539-3551999, 24hours service.
