Specifications
concrete interlocking paving block machine1nea20year brick machine experience
2ISO9001/CE
3Good service
4Taiwan Hydraulic

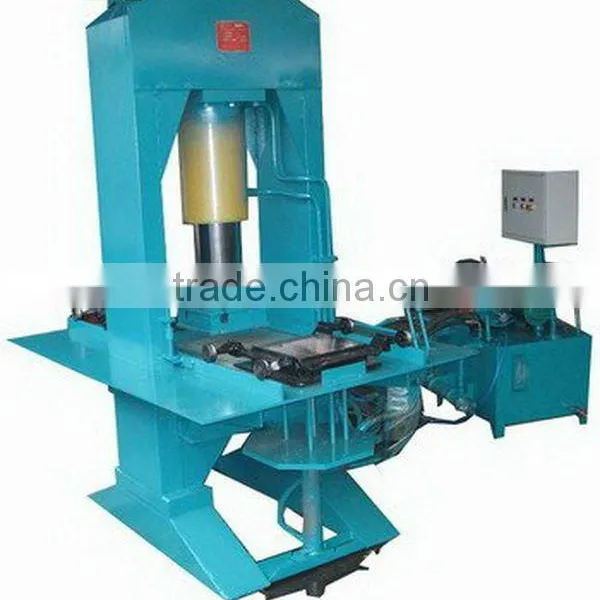

TY-150TB concrete interlocking paving block machine
1.TY-150TB concrete interlocking paving block machine main technical parameter
Max pressure |
1500KN |
Total power |
7.5kw |
Production |
1500-2000 blocks/day |
Machine weight |
2700kg |
Machine size |
2390x2200x2550mm |
Products Maximum specification |
500x500x150mm |
Working position |
Two working positions |
products |
Can make all kind of paver block, curbstone, lawn block |
3.TY-150TB concrete interlocking paving block machine other information:
1. Area: Workshop area: 50-60m2, all factory area 1000m2, the bigger, the better.
2. Workers : two or three
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4. water consumption per day:3%-5% of raw material .Weight.
3.TY-150TB concrete interlocking paving block machine guarantee:
We give our concrete interlocking paving block machine one year guarantee,during the period we can supply spares free if they are broken.
5.TY-150TB concrete interlocking paving block machine production pressure:
Hollow blocks can reach 8-10Mpa,Solid bricks can reach 10-12Mpa,paving block can reach 15-20 Mpa ,so they have a higt pressure,can be widely used.
