Concrete Grass Protection Paver Brick Making Machine With Hydraulic

Concrete Grass Protection Paver Brick Making Machine With Hydraulic photo-1

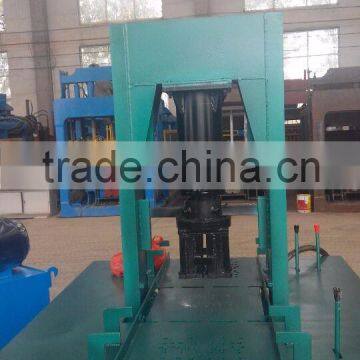

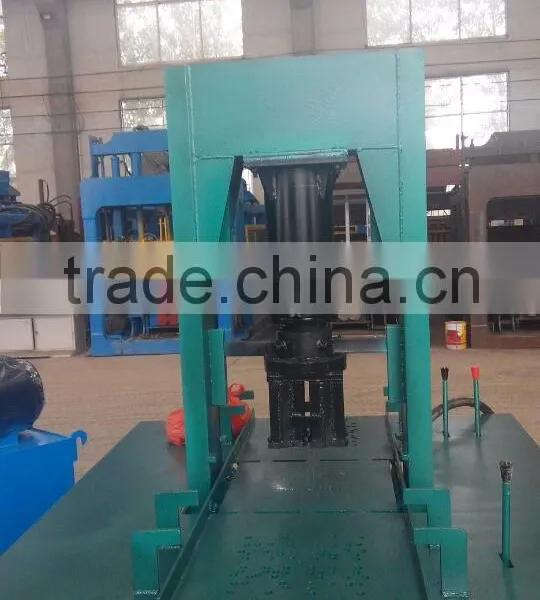

Concrete Grass Protection Paver Brick Making Machine With Hydraulic photo-2

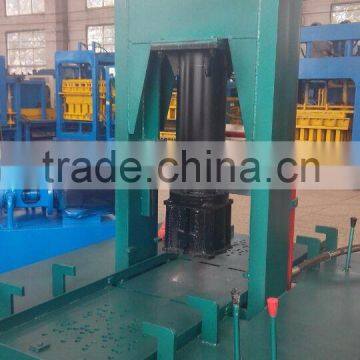

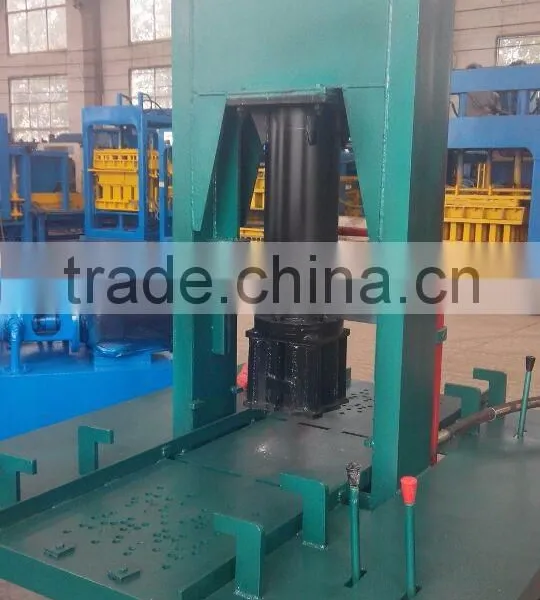

Concrete Grass Protection Paver Brick Making Machine With Hydraulic photo-3

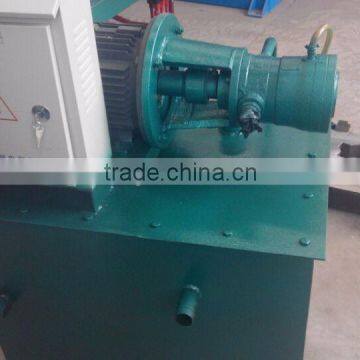

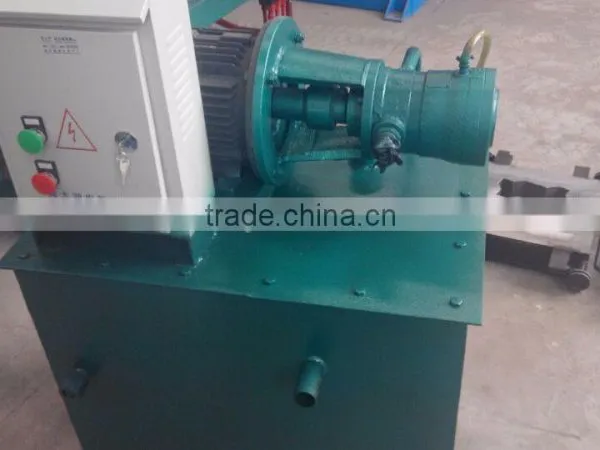

Concrete Grass Protection Paver Brick Making Machine With Hydraulic photo-4
Concrete Grass Protection Paver Brick Making Machine With Hydraulic photo-5
US$ 200 - 7,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Paving Block Making Machine
Brick Raw Material:
Concrete
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Paving Block Making Machine
Brick Raw Material Concrete
Processing Brick Molding Machine
Method Hydraulic Pressure
Automatic No
Capacity 3000pcs per 8hours
Place of Origin Shandong, China
Brand Name tianyuan Brand
Model Number TY-150TB
Voltage industrial voltage
Power 8.8kw
Dimension(L*W*H) 2x2x2m
Certification iso
Warranty 1year
After-sales Service Provided Engineers available to service machinery overseas

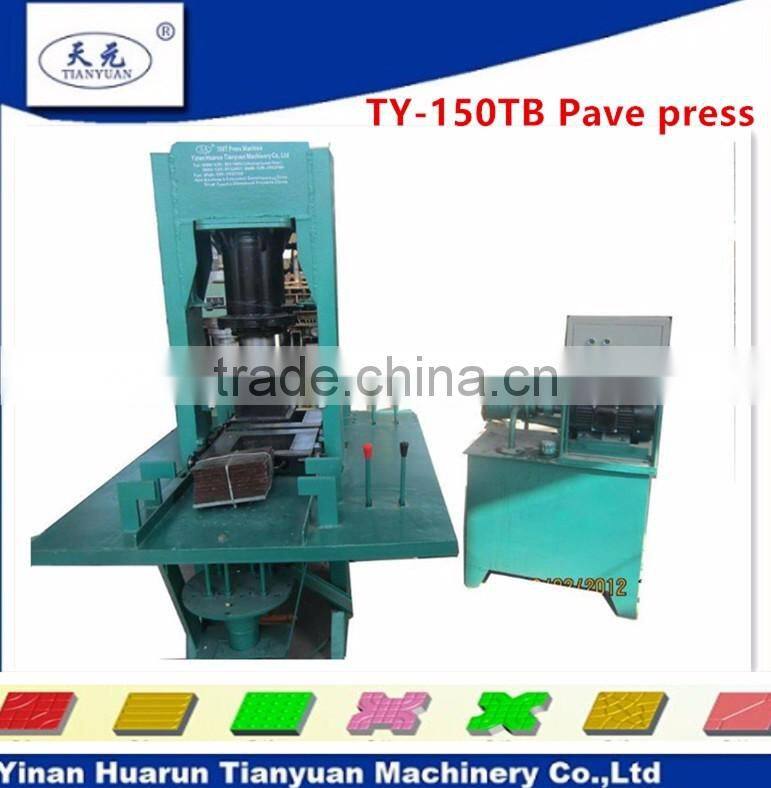

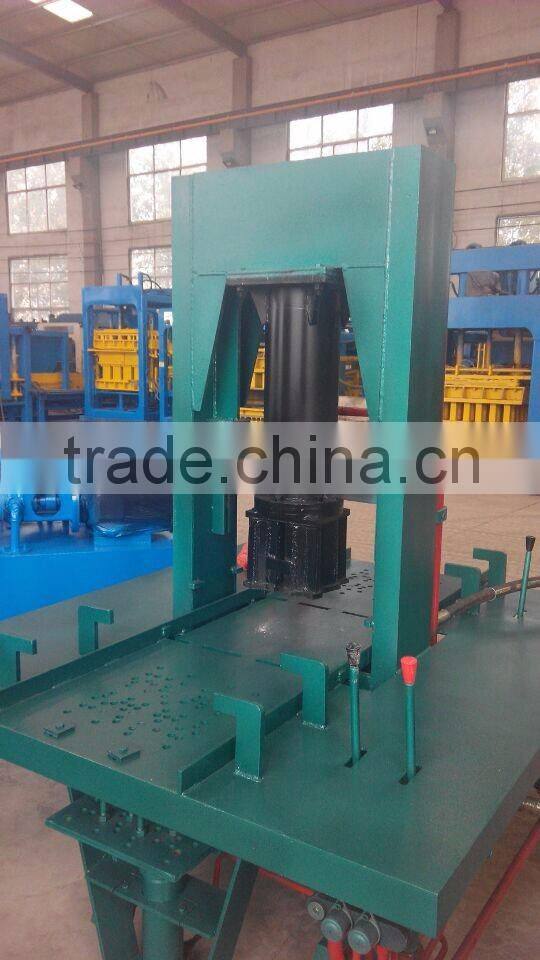

TY-150 Machine photos.

Concrete grass protection paver brick making machine with hydraulicConcrete grass protection paver brick making machine with hydraulicConcrete grass protection paver brick making machine with hydraulic





1.TY-150TB  machine main technical parameter



Max  pressure

1500KN

Total power

7.5kw

Production

1500-2000 blocks/day

Machine weight

2700kg

Machine size

2390x2200x2550mm

Products Maximum specification

500x500x150mm

Working position

Two working positions

products

Can make all kind of paver block,

curbstone, lawn block



2.TY-150TB machine other information:

1. Area: Workshop area: 50-60m2, all factory area 1000m2, the bigger, the better.

2. Workers : two or three

3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.

4. water consumption per day:3%-5% of raw material .Weight.



3.TY-150TB machine guarantee:

We give our concrete interlocking paving block machine one year guarantee,during the period we can supply spares free if they are broken.



4.TY-150TB  machine production pressure:

Hollow blocks can reach 8-10Mpa,Solid bricks can reach 10-12Mpa,paving block can reach 15-20 Mpa ,so they have a higt pressure,can be widely used.





 Concrete grass protection paver brick making machine with hydraulic



Company Information

*Huarun Tianyuan Factory

1*  We are the professional manufacturer of AAC Block PlantConcrete Brick Block machine & Expanded Perlite Slab Molding Machine & EPS Insert Concrete Hllow Block Machine, & Fireproof door core making machine, with high technology research develop teams, more than 15years experience in this fields, cover 80000sqm and more than 400 staffs.

2*  Our products with CE/ISO certification had been sold to more than 106 countries, and well received high acceptance.

3*  We had successfully designed the Slope protection brick machines for South-to-North water diversion project, this is the biggest water diversion project in China Government.

 4*  We had successfully designed EPS(polystyrene) insert concrete hollow block machines. For chinese North-East building company.

 5*  We had successfully designed thermal insulation Expaned Perlite Slab molding machines for outside wall heat insulation. We are top leader in Chinese markets, share more than 95% markets.

 6*  We ensure our products quality and best after sales service.

 We will do the best with clients' advice and susgestion.

Concrete grass protection paver brick making machine with hydraulic

Concrete grass protection paver brick making machine with hydraulicConcrete grass protection paver brick making machine with hydraulicConcrete grass protection paver brick making machine with hydraulic

Certifications

1> Certification of ISO 9001. CE(MD+LVD)

2> We have inspections every year by National Quality Technical Supervise Department.

3> Our Quality Inspection Department make test of each machine before loading.


FAQ

1: Keep the machine in dry environment.

2: Before the first production, please fill hydraulic oil into the tank, keep the oil level higher than 80/180degree. And pay more attention to the oil Pressure.

3: Please check the Sensor position before each shift, and tighten them again.

4: After each shift, please cleaning all the equipments, and lubricating each running parts.

5: Please cut off the Total Power when User maintaining the machine.

6: When need to change mold, please discharge or install them slowly and keep the Up mold foot safety. Please do it as our video.

7: If need technical help, please call 0086-539-3551999, 24hours online service.
