1* We are the professional AAC Block Plant & Concrete Brick machine &Expanded perlite plate molding machine & EPS insert concrete hollow block machine supplier for 18 years, with 268 high qualified staff, and 20 engineers, 30 assistant engineers.

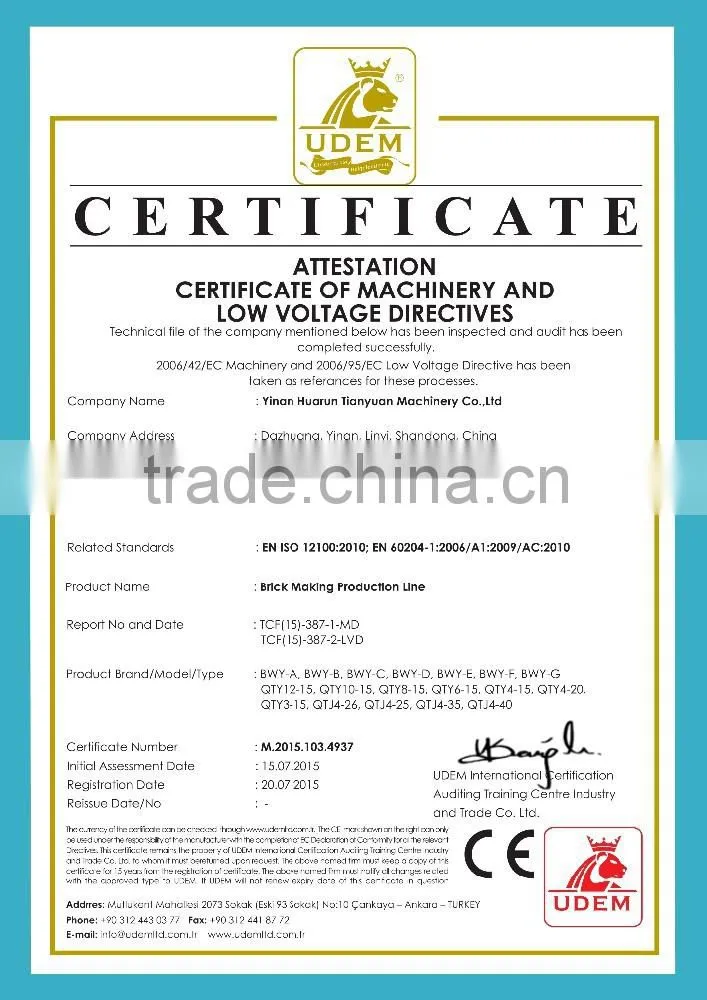

2* Our products with CE/ISO certification had been sold to more than 65 countries, such as Russia, Sultan,Burma ,India, Brazil and so on.
And we already have abroad offices, such as Brazil, India, Vietnam, Sri Lanka.
3* We had successfully designed the Slope protection brick machines for South-to-North water diversion project, this is the biggest water diversion project in China.
4* We had successfully designed EPS insert concrete hollow block machines. For chinese North-East building company.
5* We had successfully designed thermal insulation expaned perlite board making machinesfor outside wall heat insulation. We are top leader in Chinese markets.
6* We ensure our products are Brand – new and it were had pruduced by ISO QUALITY, and supply best after sales service.
eps concrete hollow block machine
POLYPHENYL ETHYLENE
CONCRETE HOLLOW BRICK MACHINE

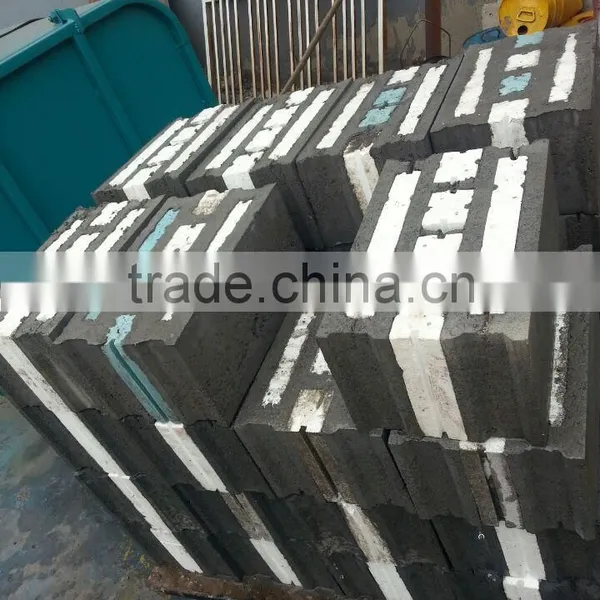

These thermal insulation blocks mostly used for wall buildings, saving energy.
Now it were widely used in cold or hot area.
We have supper design teams, and successfully designed them with new technology.

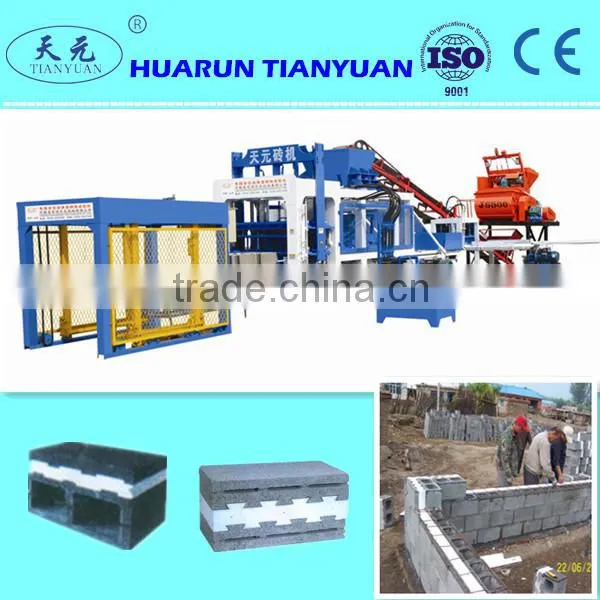

QTY6-15A semi automatic EPS Concrete Block Making Machine
A: Production capacity of QTY6-15A as following:
Size(LXWXH) mm |
Pcs/mould |
Pcs/hr |
Pcs/8hr |
500x300x190 |
2 |
240 |
1920 |
The type QTY6-15A can produce all kinds of hollow blocks and solid bricks and color paving bricks,only by changing different moulds.
B: Technical parameters of QTY6-15A:
Main machine size |
4000x2200x3000mm |
Pallet size |
900x700mm |
|
Main machine power |
31.7kw |
Weight |
13Ton |
|
Test pressure |
16Mpa/cm2 |
Mixer |
JS500 |
|
Vibration forece |
50kn |
Belt conveyor |
8m |
|
Forming cycle |
30seconds |
Voltage |
380v/3phase |
C: QTY6-15A machine other information:
1. Area: Workshop area: 150-200m2, all factory area 3000m2, the bigger, the better.
2. Workers : five or eight.
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4.hollow block weight::
(390*190*190) :17KG,(190*140*190):13.5KG,(390*90*190):10KG
5. raw material consumption per day:150-190T
6. water consumption per day:3%-5% of raw material Weight.
7.EPS size made according to actual requirements.
D.QTY6-15A machine guarantee:
Our hollow block making machine is of one year guarantee,during the period we could supply spare parts if they are broken.
E.QTY6-15A machine production pressure:
Hollow blocks can reach 8-10Mpa,Solid bricks can reach 10-20Mpa,so they have a high pressure,can be used widely.
Packing:
Nude in container. Or in plastic bag as per clients needs.

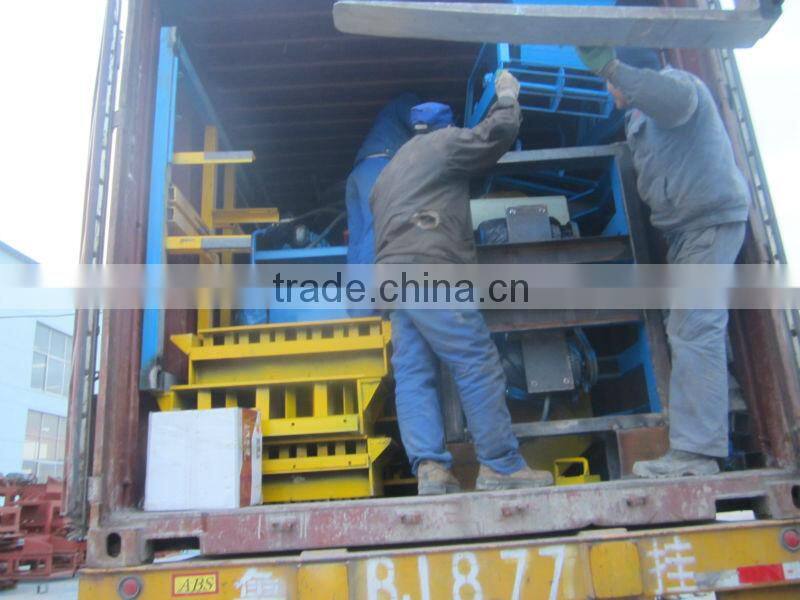

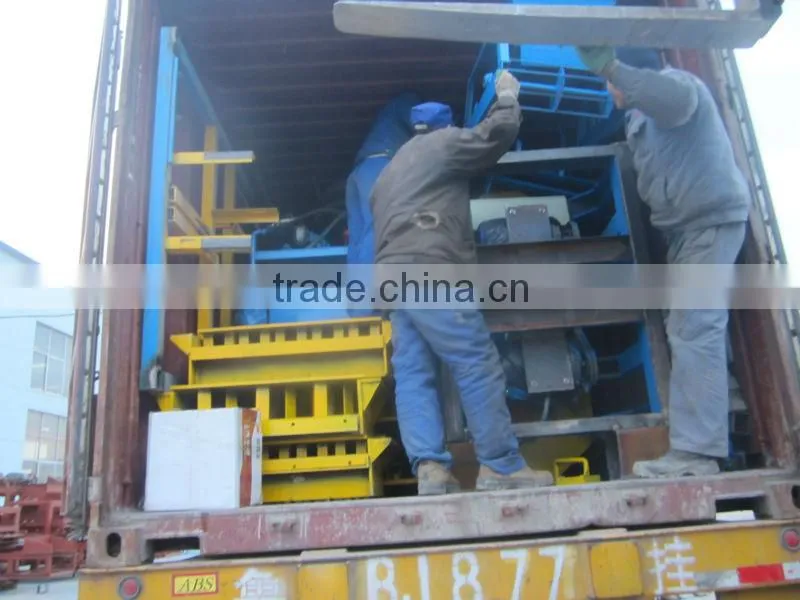

Shipping:
1: From mixer to stacker need one 40ft high container.
2: If need silo and batching machine too, it will need total 3x40ft high containers.
24hours at service.
@:Designing ,technical support and project;
@Engineer available for overseas installation and adjustment;
@All necessary documents and drawings and videos for free;
