Home > Products > EPS insert concrete hollow block machine > QT6-15 Insulated concrete blocks, Insulated concrete masonry units, EPS insulated hollow block makingmachine

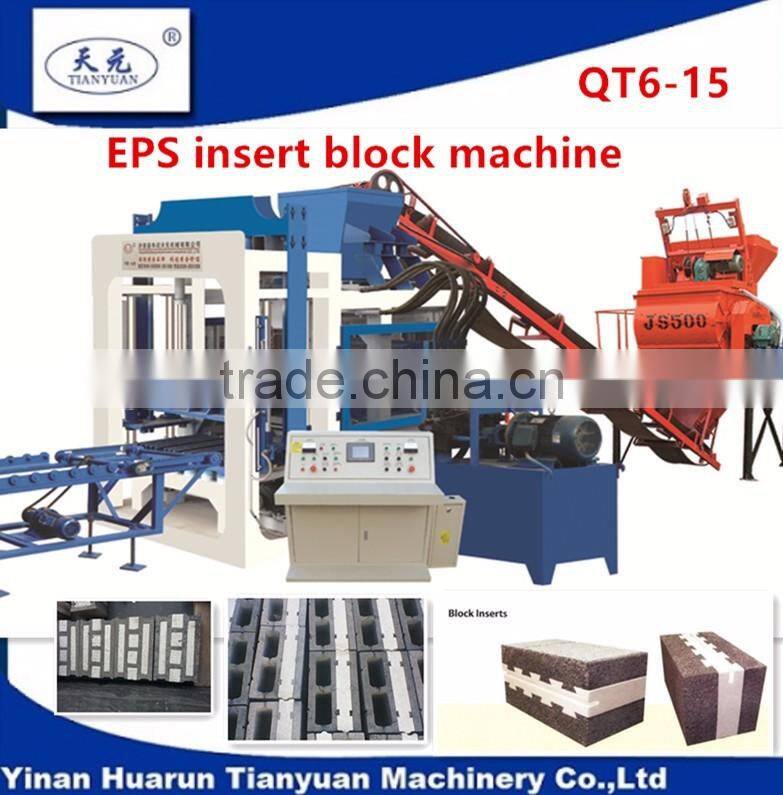

QT6-15 Insulated concrete blocks, Insulated concrete masonry units, EPS insulated hollow block makingmachine
- 60 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Concrete |
Processing: | Brick Production Line | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 480pcs/h, 27.95KW | Place of Origin: | Shandong, China | Brand Name: | Tianyuan |
Model Number: | QT6-15 | Voltage: | 220/380/400/450V | Power: | 31.7KW |
Dimension(L*W*H): | 3800x2200x3000mm | Certification: | ISO9001/CE/CIECC | Warranty: | 1year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Insulated concrete blocks, Insulated concrete masonry units, EPS insulated hollow block makingmachine
A: Production capacity of QT6-15 Eps cement block machine as following:
Size(LXWXH) mm | Pcs/mould | Pcs/hr | Pcs/8hr |
390x240x190 | 4 | 480 | 3840 |
B: Technical parameters of QT6-15 Eps cement block machine
Main machine size | 4000x2200x3000mm | Pallet size | 900x700mm | |
Main machine power | 31.7kw | Weight | 7Ton | |
Rated pressure | 20Mpa | Mixer | JS500 | |
Vibration forece | 50kn | Belt conveyor | 8m | |
Forming cycle | 30seconds | Voltage | 380v/3phase |
C: QTY6-15A Eps cement block machine other information:
1. Area: Workshop area: 150-200m2, all factory area 3000m2, the bigger, the better.
2. Workers : five.
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4.hollow block weight::
(390*190*190) :17KG,(190*140*190):13.5KG,(390*90*190):10KG
5. raw material consumption per day:150-190T
6. water consumption per day:3%-5% of raw material Weight.
7.EPS size made according to actual requirements.
D.QTY6-15A Eps cement block machine guarantee:
Our hollow block making machine is of one year guarantee,during the period we could supply spare parts if they are broken.
*Huarun Tianyuan Factory
1* We are the professional manufacturer of AAC Block Plant& Concrete Brick Block machine & Expanded Perlite Slab Molding Machine & EPS Insert Concrete Hllow Block Machine, & Fireproof door core making machine, with high technology research develop teams, more than 15years experience in this fields, cover 80000sqm and more than 400 staffs.
2* Our products with CE/ISO certification had been sold to more than 106 countries, and well received high acceptance.
3* We had successfully designed the Slope protection brick machines for South-to-North water diversion project, this is the biggest water diversion project in China Government.
4* We had successfully designed EPS(polystyrene) insert concrete hollow block machines. For chinese North-East building company.
5* We had successfully designed thermal insulation Expaned Perlite Slab molding machines for outside wall heat insulation. We are top leader in Chinese markets, share more than 95% markets.
6* We ensure our products quality and best after sales service.
We will do the best with clients' advice and susgestion.
1> Certification of ISO 9001. CE(MD+LVD)
2> We have inspections every year by National Quality Technical Supervise Department.
3> Our Quality Inspection Department make test of each machine before loading.
7*24hours online service.
@:Designing ,technical support and project;
@Engineer available for overseas installation and adjustment;
@All necessary documents and drawings and videos for free;
@Warranty one year after delivery.
@ 24hours Online service for all life time.
1: Keep the machine in dry environment.
2: Before the first production, please fill hydraulic oil into the tank, keep the oil level higher than 80/180degree. And pay more attention to the oil Pressure.
3: Please check the Sensor position before each shift, and tighten them again.
4: After each shift, please cleaning all the equipments, and lubricating each running parts.
5: Please cut off the Total Power when User maintaining the machine.
6: When need to change mold, please discharge or install them slowly and keep the Up mold foot safety. Please do it as our video.
7: If need technical help, please call 0086-539-3551999, 24hours online service.
Or please chat by Trade manager: cntianyuanzj
Or Send Email: tianyuanzj at .
WhatsApp: 008615006593716
