Specifications

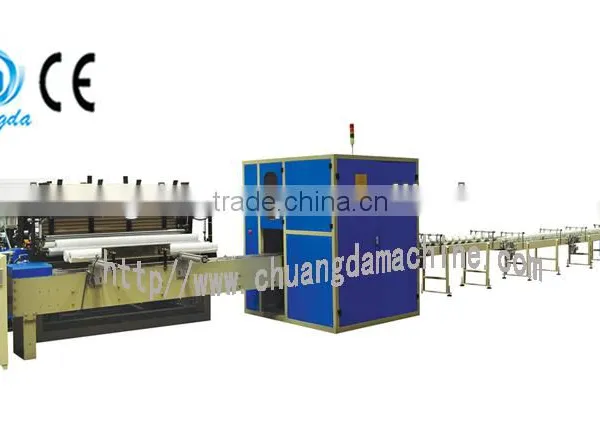

it is the high speed of toilet paper making machine
Part 1:
Function& feature:
1.It can do for the toilet paper & kitchen towel. The punching size can be adjustable.
2.Two sets of steel to rubber embossing units
3.Automatic core loading and replacing.the logs are automatic pushed out after finishing winding, and then start winding again. The cores can be adjusted to any size of cores within one minute.
4.Automatic trimming,gluing and sealing:it has replaced the traditional sealing of rolls with the international popular trimming and sealing,which can have 10-18mm tails to facilitate to start pulling out the paper. At the same time, it can greatly cut down the wastage of the paper,thus to cut down the production cost.
5.Advanced PLC programmable control Technology: The winding profiles can be tight at the beginning of winding, and then getting loose,to avoid the problems that the cores are loose from the rolls after long time storage.
6.With high precision screwy perforation knife.with 4 blades to make clear perforating. The perforating pitch controlled by gear box
7.Two Paper-unwinders,pneumatic jumbo roll loading,and pneumatically wide belt paper unwinding driving, and individual web tension control unit for each jumbo roll.
Main Technical Parameter:
width of Jumbo Roll |
1700mm |
Diameter of Jumbo roll |
Max 1200mm |
Inner diameter paper core of Jumbo roll |
76.2mm |
Diameter rewinding product |
60-150mm |
Inner diameter paper core |
32-50mm |
Punching size |
10-15mm |
Working speed |
120-160m/min |
Setting Parameter |
Touching Human–Machine Interaction |
Pneumatic |
3HP,Above 5kg/cm2 Pa |
Install power |
7.5-15KW |
Back paper stand |
2 pieces |
CDH-150 LOG SAW
CDH-150 High Speed Log Saw is one of the important equipment for the automatically continuous production line of toilet rolls and kitchen towels, greatly increasing the production automation and efficiency. The machine is characteristic of a strong, well built structure and perfect cutting action.
Function and feature
Automatic blade sharpening unit complete with lubrication system.
Log accompaniment system.
Automatic trim eliminating device.
Automatic approach of grinding wheels to cutting blade based on the blade wear.
Two clamping systems for toilet rolls and kitchen towels.
Short change over time.
Main Technical Parameter
Log length: 1500mm
Log outside diameter: 90mm~110mm (standard size: 110±5mm)
Cutting length: variable
Machine speed: 100 cuts/min, 2 rolls /cut
Operation speed: 120 cuts/min, 2 rolls /cut
Blade outside diameter: 610mm
Installed power: Alternating Current: 5 Horses per Machine
Frequency Conversion: 5 Horses per Machine
Alternating Current: 1/2 Horses per Machine, AC motor 5 Horses
