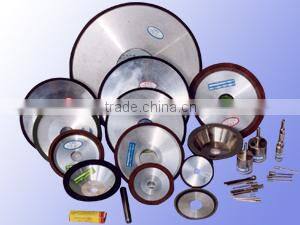

Grinding wheel/diamond grinding wheel/cbn grinding wheel
| advantage | High metal removal rate |
| High stablity | |
| High effciency | |
| Less material loss, noise and dust | |
| Long life durability |
| functions | T41 super thin cut off wheel |
| Advanced grit, resin bond and fibre system | |
| No more time loss due to machine or product changing | |
| Free of iron, sulphur and chlorine | |
| Low vibration and comfortable cutting | |
| High stability for easy and comfortable cutting | |
| Optimised fro universal application | |
| Maximum safety |
Grade of Tungsten Carbide Grinding Tool Diamond Wheel
Grades |
Density (g/cm³) |
Hardness (HRA) |
T·R·S (N/mm2) |
Application |
YG4C |
15.00 |
89.5 |
1800 |
Maily used as small buttons for percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG6 |
15.80 |
89.5 |
1700 |
Maily used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG8 |
14.70 |
88.5 |
2300 |
Maily used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG8C |
14.70 |
88.0 |
2300 |
Maily used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG9C |
14.50 |
87.0 |
2400 |
Maily used as the inserts and buttons for rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
YG11C |
14.40 |
86.5 |
2450 |
Chiefly for the inserts and buttons of heavy rock drill bits and rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
YG13C |
14.30 |
86.0 |
2500 |
Mainly used as the inserts and buttons of tricone bits rotary-percussive bits and heavy rock drill bits to cut medium-hard and hard formations. |
YG15 |
14.00 |
86.5 |
2500 |
It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations. |
YG16 |
14.10-14.30 |
87.5 |
2400 |
It is mainly used for making cemented carbide substrate tips to be used in PDC cutters for excavating coal and oil field PDC bits. |
YG20 |
13.40-13.70 |
85.0 |
2254 |
Mainly for the stamping dies used in the conditions of heavy impact load and large strees. |

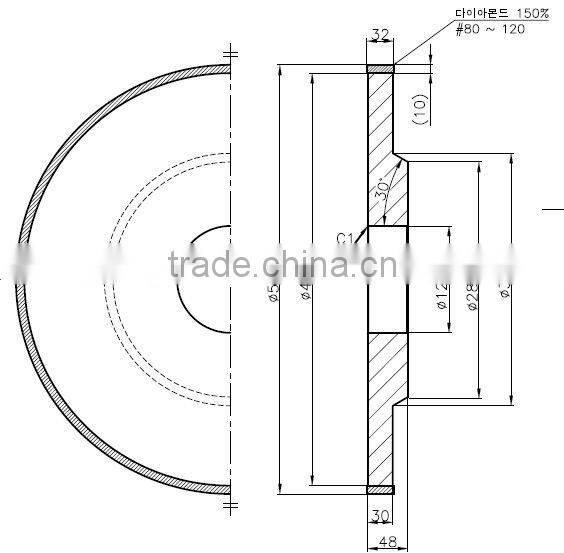

Dimensions of Tungsten Carbide Grinding Tool Diamond Wheel
We can also produce according to your drawing and requirement.

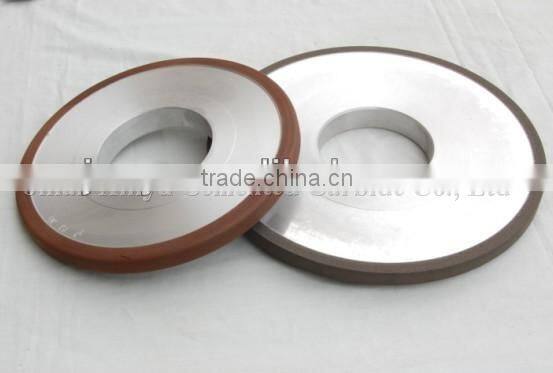

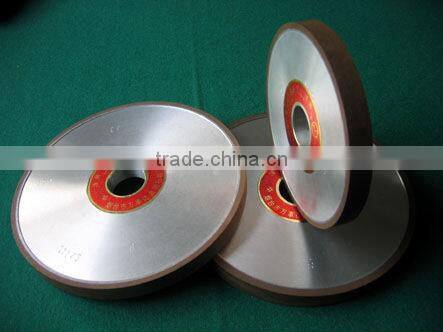

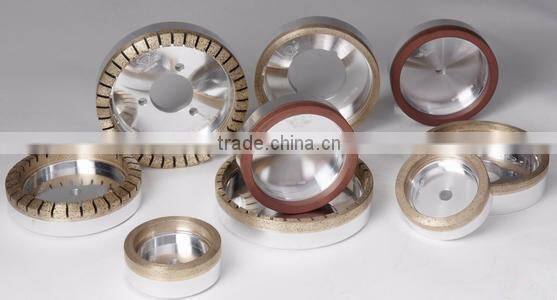

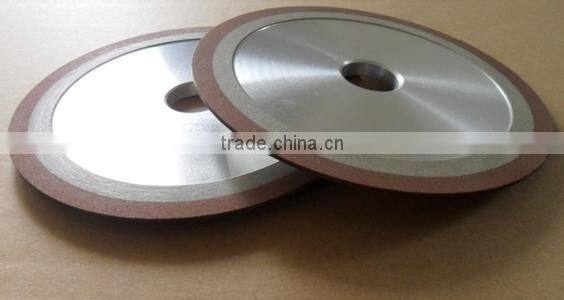

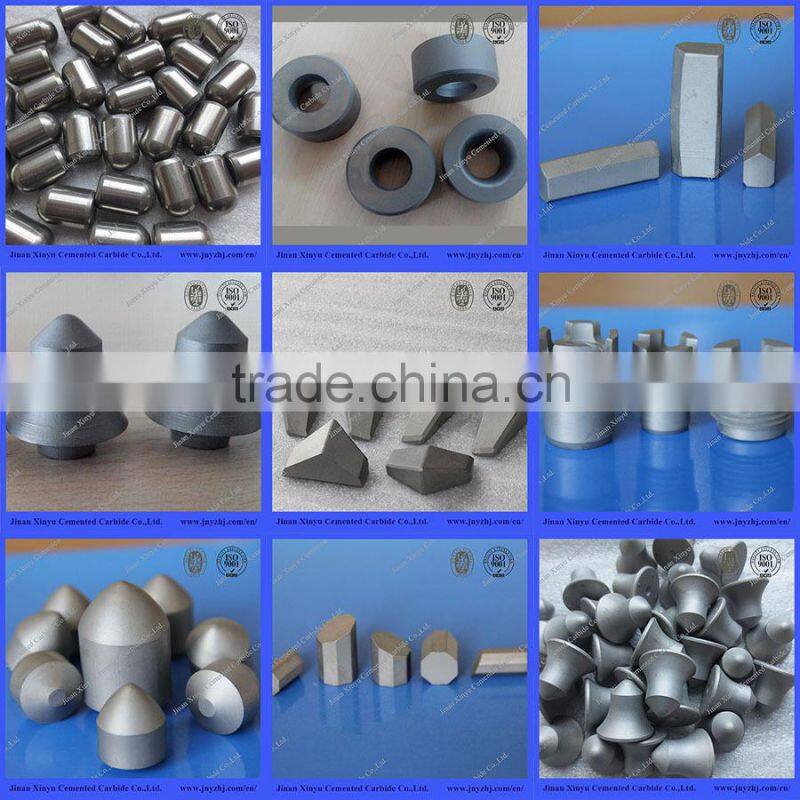

Photos of Products

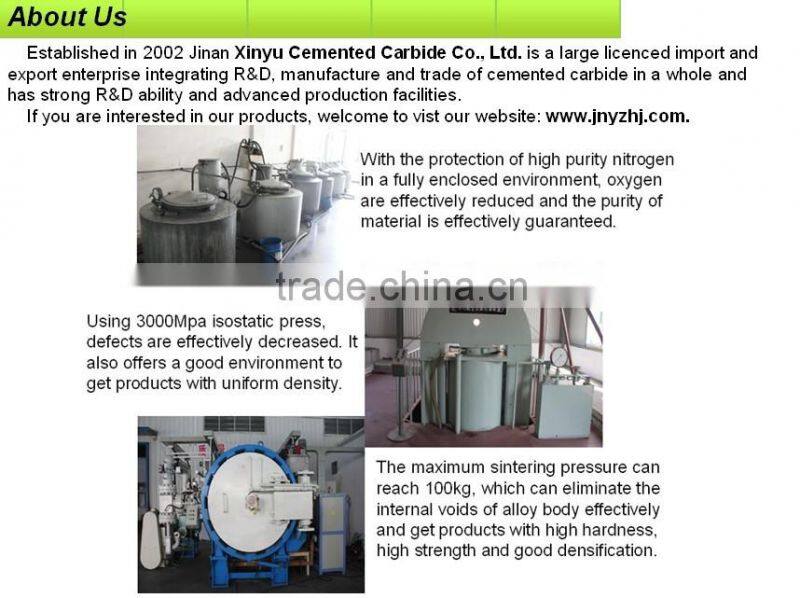

Founded in 2002,Jinan Xinyu Cemented Carbide Co.,Ltd. is a large licenced import and export enterprise integrating R&D,manufacture and trade of cemented carbide in a whole and has strong R&D ability and advanced production facilities.
We have a complete variety and can supply the following products:
Cemented Carbide Button Bits
Cemented Carbide Inserts
Cemented Carbide Rods
Road Planning Bits
Besides,we can also provide customized products according to your drawings or samples.
Welcome to visit our factory!
Certification
Our factory had got the certificate of ISO901-2008, SGS, BV etc.
