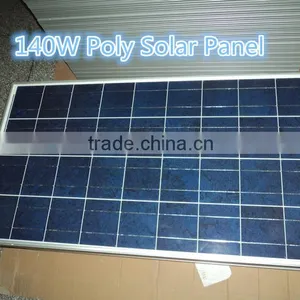

| STC | PW130-156-36P | PW135-156- 36P | PW140-156- 36P | PW145-156- 36P | PW150-156- 36P | PW155-156 -36P | PW160-156- 36P |
|---|
Maximum Power | 135W | 140W | 145W | 150W | 155W | 160W | 165W |
|---|
Module Efficiency | 14.10% | 14.35% | 14.66% | 14.96% | 15.3% | 15.60% | 16.00% |
|---|
Max Power Current | 7.70A | 8.15A | 8.20A | 8.28A | 8.33A | 8.50A | 8.63A |
|---|
Max Power Voltage | 17.05V | 17.15V | 17.50V | 17.73V | 18.00V | 18.25V | 18.52V |
|---|
Short Circuit Current | 8.87A | 9.04A | 9.15A | 9.24A | 9.35A | 9.47A | 9.60A |
|---|
Open Circuit Voltage | 21.84V | 21.95V | 22.05V | 22.14V | 22.20V | 22.26V | 22.32V |
|---|
| Values at Standard Test Conditions STC(Air Mass AM1.5, Irradiance 1000W/m²,Cell Temperature 25℃) |
Mechanical Characteristics |
Cell Type | Polycrystalline 156 X 156mm, 60(6 X 10)pcs in series |
|---|
Glass | High Transmissivity, Low Iron, Tempered Glas |
|---|
Frame | Anodized Aluminium Alloy |
|---|
Junction box | IP65/IP67 rated,with bypass diodes |
|---|
Dimension | 1480*670*30/35/40mm |
|---|
Output Cable | 90mm, 4mm2(EU)/12AWG(US),1000mm |
|---|
Weight | 14.50KGS |
|---|
No. of Bypass Diodes | 3/6 |
|---|
| Container | 20'GP | 40'GP | 40'HQ |
|---|
| Pallets per Container | 12 | 28 | 28 |
|---|
| Pieces per Container | 312 | 728 | 770 |
|---|
|
| By Sea | Delivery from Chinese Main seaport, Like Shanghai, Ningbo etc. It takes 10 - 30 days from China to Europe, North Amercia, South Amercia, Africa, Asia etc. |
|---|
| By Air | Departure from Chinese Main airport, Like Shanghai, Ningbo etc. It takes 5 - 10 days from China to Europe, North Amercia, South Amercia, Africa, Asia etc. |
|---|
| By Express | Post by DHL, Fedex and so on. It takes 3 - 5 days from China to the customer's address. |
|---|
|
| T/T | TT 30% as Deposit, Blance to be paid before the shipment |
|---|
| L/C | The total cost for Letters of Credit is above US$50,000 then we can accept L/C @ sight or TT 20% as Deposit, Blance against L/C @sight |
|---|
| West Union | Total Value is lower than US$5000 |
|---|
| Alibaba Escrow | Total Value is lower than US$5000 |
|---|
|
10 - 15 working days after received the payment for 1 X 40HQ container |
|
10 years warranty on workmanship,10 years 90% & 25 years 80% Of The Power Output |
|
| Solar Cell | We use Chinese top suppliers of solar cell, like Jinko, GPPV, JA Solar, Motech |
|---|
| Tempered Glass | We use Chinese top suppliers of tempered glass, like Golden Glass, CSG Holding, Puyang, Xingyi |
|---|
| EVA | We use Chinese top suppliers of EVA, like First, Huafeng |
|---|
| TPT | We use Chinese top suppliers of TPT, like First, Coveme, FSC |
|---|
| Junction Box | We use Chinese top suppliers of junction box, like Renhe, GZX |
|---|
| Aluminum Frame | We use Chinese top suppliers of aluminum, like Baocheng, Xiefeng |
|---|
| Silica Gel | We use Chinese top suppliers of silica Gel, like Tianshan, Huitian, Tiansheng |
|---|
|
| |
Q: Are you manufacturer or trading company? A: We are manufacturer and trader. Both of them. | Q: How many employees in your company? A: We have about 50~100 employees, including office staff, R & D engineers, production line workers. | Q: Which certificates do you have? A: We have CE, TUV, IEC, CEC, MCS, UL. | Q: Which countries or regions have you exported to? A: Aisa like South Korea, Sri Lanka, Thailand, Vietnam, India, Pakistan, UAE, Russia; Europe like Germany, France, Beligum; North America like USA, Mexico; South America like Peru, Chile; Africa like South Africa, Mali, Tunisia and Australia etc. | Q: What is your advantage product? A: Solar Panel. We have different quality grade solar panel for different markets and customers. OEM & customer customized is welcome. | Q: Does your company also provide other solar products except solar panel? A: We also supply BIPV, LED, solar pumps and the related solar products. | Q: How can we get some samples to test? A: Sample order is ok for us. Usually we use DHL, Fedex to you, which is quick but a bit expensive. | Q: How can we get the cheaper price? A: As long as MOQ is more than 100pcs then we would like to try our best to give you the best price to avoid bargain again and again. | Q: We need C/O. Can you supply? A: Yes, we have the related experiences to supply C/O, FORM A, FORM F and so on. |
|
| Professional manufactures, strict quality control & full automatic production equipment | | Professional salesmans, who have more than 10 years international business experiences | | High vonversion efficiency, high transmisson rate, low iron tempered anti-reflecting/coating film 3.2mm glass | | Anti-aging & high visosity EVA | | High frame resistant & double-sided flourine TPT | | Anodized aluminum alloy high thickness frame | | 3 or 6 bypass diodes, 90mm 4m2 cable, MC4 connectors & waterproof junction box | | Long life, easy installation, high wind and hail impact resistance etc advantage | | ISO 9001:2008/ISO14001:2004, CE/TUV/CEC/IEC 61215/IEC61730 | | 10 years warranty on workmanship,10 years 90% & 25 years 80% Of The Power Output |
|
