China Land 40W 80W 180W 240W 12V 24V Solar Panels With MCS UL TUV CE Certificate

China Land 40W 80W 180W 240W 12V 24V Solar Panels With MCS UL TUV CE Certificate thumbnail-1
China Land 40W 80W 180W 240W 12V 24V Solar Panels With MCS UL TUV CE Certificate thumbnail-2
China Land 40W 80W 180W 240W 12V 24V Solar Panels With MCS UL TUV CE Certificate thumbnail-3
China Land 40W 80W 180W 240W 12V 24V Solar Panels With MCS UL TUV CE Certificate thumbnail-4
China Land 40W 80W 180W 240W 12V 24V Solar Panels With MCS UL TUV CE Certificate thumbnail-5
China Land 40W 80W 180W 240W 12V 24V Solar Panels With MCS UL TUV CE Certificate thumbnail-6
China Land 40W 80W 180W 240W 12V 24V Solar Panels With MCS UL TUV CE Certificate photo-1
China Land 40W 80W 180W 240W 12V 24V Solar Panels With MCS UL TUV CE Certificate photo-2
China Land 40W 80W 180W 240W 12V 24V Solar Panels With MCS UL TUV CE Certificate photo-3
China Land 40W 80W 180W 240W 12V 24V Solar Panels With MCS UL TUV CE Certificate photo-4
China Land 40W 80W 180W 240W 12V 24V Solar Panels With MCS UL TUV CE Certificate photo-5
China Land 40W 80W 180W 240W 12V 24V Solar Panels With MCS UL TUV CE Certificate photo-6
US$ 0.37 - 0.55 MOQ: 1000 Watts
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Power World
Model Number:
PW240-96
Contact Supplier Request Quote Chat Now
Qingdao Power World Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Power World
Model Number PW240-96
Material Monocrystalline Silicon
Size 1590X1060X45mm
Number of Cells 96
Max. Power 250

  China Land 40W 80W 180W 240W 12V 24V Solar Panels With MCS UL TUV CE Certificate



NO. TYPE PW240M-96
1 Peak Power(Pm) 240W
2 efficiency rate 14.2%
3 Power Tolerance ±3%
4 Open circuit Voltatge(VOC) 57.6V±0.5
5 Short Circuit Current(ISC) 5.6A±0.2
6 Maximum Power Voltage(Vmp) 48V±0.5
7 Maximum Power Current(Imp) 5A±0.2

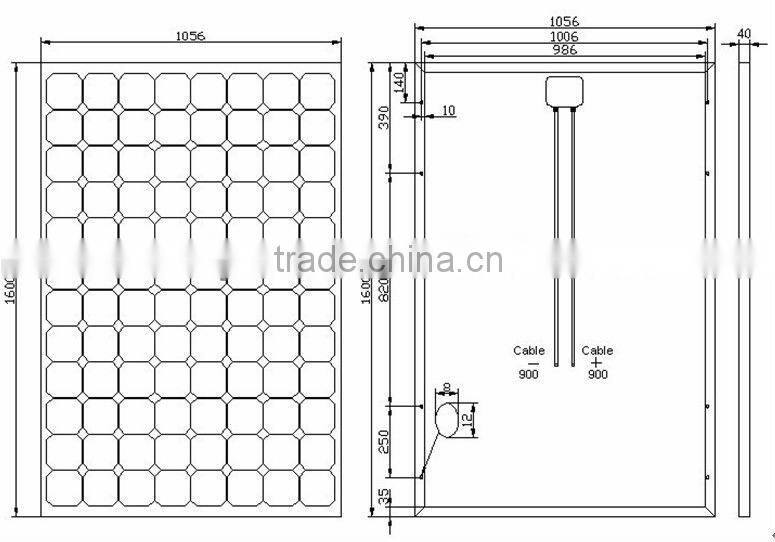

8 Size of Module 1590×1060×45mm

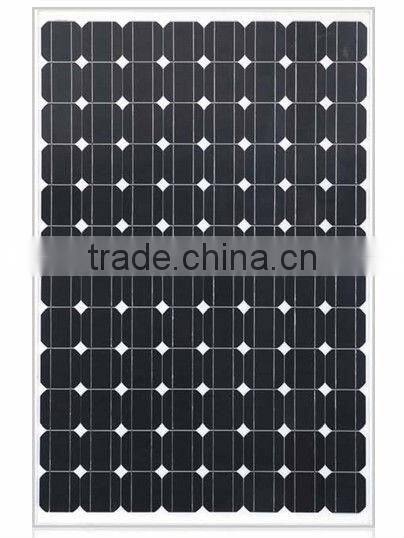

9 Cell Type Monocrystalline
10 Quantity and Dimession of   Cell 96pcs,125×125mm
11 Glass type and Thickness Low iron tempered 3.2mm
12 Maximum System Voltage 1000V DC
13 Maximum Series Fuse Rating 15A
14 Temperature Coefficients of Pmax -0.34%/°C
15 Temperature Coefficients of Voc -0.32%/°C
16 Temperature Coefficients of Isc -0.04%/°C
17 Nominal Operating Cell Temperature 45 ± 2/°C
18 Weight about 23kg





China Land 40W 80W 180W 240W 12V 24V Solar Panels With MCS UL TUV CE CertificateChina Land 40W 80W 180W 240W 12V 24V Solar Panels With MCS UL TUV CE Certificate

China Land 40W 80W 180W 240W 12V 24V Solar Panels With MCS UL TUV CE CertificateChina Land 40W 80W 180W 240W 12V 24V Solar Panels With MCS UL TUV CE Certificate

 China Land 40W 80W 180W 240W 12V 24V Solar Panels With MCS UL TUV CE CertificateChina Land 40W 80W 180W 240W 12V 24V Solar Panels With MCS UL TUV CE CertificateChina Land 40W 80W 180W 240W 12V 24V Solar Panels With MCS UL TUV CE CertificateChina Land 40W 80W 180W 240W 12V 24V Solar Panels With MCS UL TUV CE Certificate



FQA



Q: Are you manufacturer or trading company?

A: We are manufacturer and trader. Both of them.

Q: How many employees in your company?

A: We have about 50~100 employees, including office staff, R & D engineers, production line workers.

Q: Which certificates do you have?

A: We have CE, TUV, IEC, CEC, MCS, UL.

Q: Which countries or regions have you exported to?

A: Aisa like South Korea, Sri Lanka, Thailand, Vietnam, India, Pakistan, UAE, Russia; Europe like Germany, France, Beligum; North America like USA, Mexico; South America like Peru, Chile; Africa like South Africa, Mali, Tunisia and Australia etc.

Q: What is your advantage product?

A: Solar Panel. We have different quality grade solar panel for different markets and customers. OEM & customer customized is welcome.

Q: Does your company also provide other solar products except solar panel?

A: We also supply BIPV, LED, solar pumps and the related solar products.

Q: How can we get some samples to test?

A: Sample order is ok for us. Usually we use DHL, Fedex to you, which is quick but a bit expensive.

Q: How can we get the cheaper price?

A: As long as MOQ is more than 100pcs then we would like to try our best to give you the best price to avoid bargain again and again.

Q: We need C/O. Can you supply?

A: Yes, we have the related experiences to supply C/O, FORM A, FORM F and so on.



Why Choose us



Professional manufactures, strict quality control & full automatic production equipment

Professional salesmans, who have more than 10 years international business experiences

High vonversion efficiency, high transmisson rate, low iron tempered anti-reflecting/coating film 3.2mm glass

Anti-aging & high visosity EVA

High frame resistant & double-sided flourine TPT

Anodized aluminum alloy high thickness frame

3 or 6 bypass diodes, 90mm 4m2 cable, MC4 connectors & waterproof junction box

Long life, easy installation, high wind and hail impact resistance etc advantage

ISO 9001:2008/ISO14001:2004, CE/TUV/CEC/IEC 61215/IEC61730

10 years warranty on workmanship,10 years 90% & 25 years 80% Of The Power Output
