Help CenterScrap Tyre to Oil Pyrolysis Machine
Related Products
-
Newest Design 6tons Used Tyre to Oil Pyrolysis MachineUS$ 25,000 - 45,000MOQ: 1 Set -
the Most Popular Used Plastic to Diesel Machine in IndiaUS$ 25,000 - 45,000MOQ: 1 Set
-
High Oil Yield Waste Tyre Pyrolysis to Diesel PlantUS$ 25,000 - 45,000MOQ: 1 Set
-
New Year's Major Credit, New Design Rubber Raw Material MachineryUS$ 25,000 - 45,000MOQ: 1 Set
-
2016 Automatic New Gereation High Oil Output Waste Tire Recycling to Oil PlantUS$ 25,000 - 45,000MOQ: 1 Set
Specifications
for all types of raw materialshigh oil yield
energy saving
Q345R/Q245R bolier plate
ISO&CE&TUV
introduction of products
tyre pyrolysis machine oil output
Oil yield/day |
Used tyres,scrap tyres |
Big truck tyres |
45%--50% |
Car tyres |
40% |
||
Bicycles and motorcycles tyres |
30%--35% |
||
Waste plastics |
Fishing net,Safety net, farm-oriented film |
45%--50% |
|
Convenient bags , weave bags |
40% |
||
Off –cut of recycled paper mill |
20%--30% |
The function of the final products
Fuel oil: Widely used as fuel oil in industries such as steel and iron factories, ceramics or
chemical industries or hotels, restaurants etc. or used for generators to get electricity.
Carbon black: used for construction bricks with clay also can be used as fuel
Steel wires: Sold or reprocessing
Combustible gas: Can be recycled and used during process as fuel.
Steel wires: Sold or reprocessing

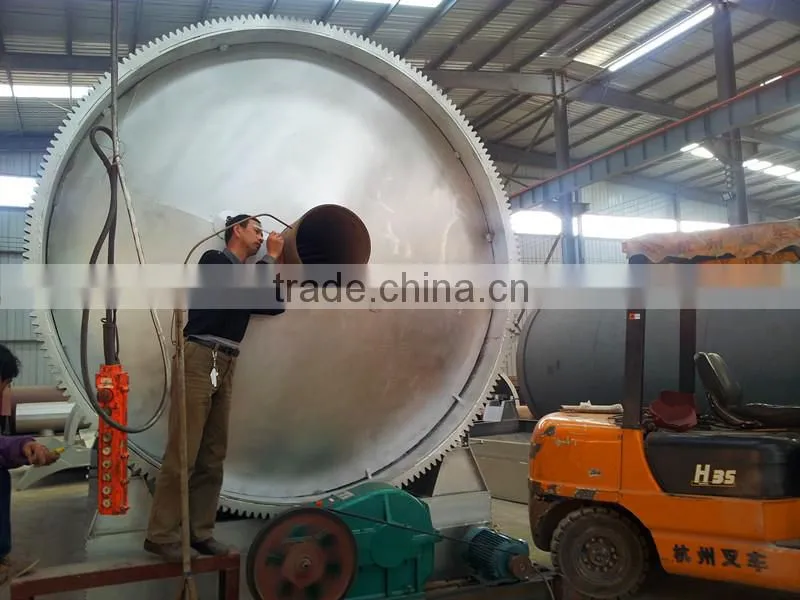

the main reactors
function of main parts
| Reactor |
1. Made by Q345R boiler plate.
|
||||||
| Auto-feeder | 1. 50 ton hydraulic pressure 2. Can feed all types of materials 3. Save labor and save time |
||||||
| Catalyst chamber | 1. improve oil yield and oil quality 2. Reduce the speed of oil gas so that it can be better cooled |
||||||
| Oil-water separator | 1. Separate oil and water 2. Collect heavy oil 3. Water sealing design keep safety |
||||||
| Condenser | 1. The oil gas is cooled separately by small pipes inside condenser 2. Light oil is collected here |
||||||
| Vacuum device | Keep machine running under normal pressure | ||||||
| Anti-back fire device | 1. Recycle residual gas to furnace as fuel 2. Water sealing design prevent tempering |
||||||
| Dust removal device | Dispose of flue gas caused by using coal, wood, oil or natural gas. | ||||||

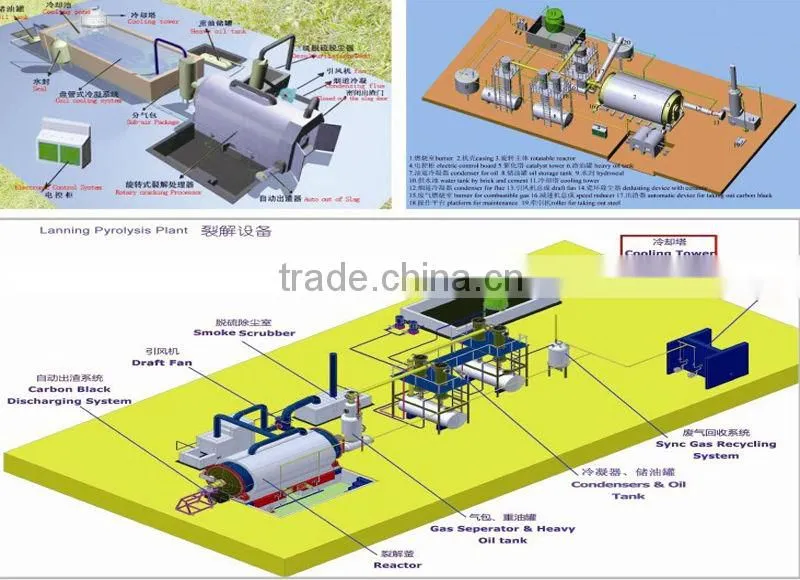

work flow
Working Process:
Firstly, make reactor rotate clockwise 0.4r/min, put raw material into reactor, close feeding door.
secondly, burned the fuel material(coal,or wood,or natural gas ,oil ) in the furnace. Reactor will be slowly heated, when the temperature reach around 180 oC, oil gas will come out .
then go to cooling system and liquid to oil.
Some incondensable gas which can't cooling down will be lead to furnace through a gas pipe. It will be used to heat reactor.
This can save your energy. Only the first 2 hours use energy for heating. After the first 2 hours mainly use gas, little energy is ok. After pyrolysis, all the oil gas come out from reactor, the temperature will fall down. Then make it rotate anticlockwise, carbon black discharging begin.
Lastly,when the temperature deduce to 50 oC, worker can opened the door of reactor take steel wire out
packaging and delievery
. we will send our engineers to your factory to install the machine freely, guide your worker to operate the machine untill the production smoothly.
2.one year guarantee for the whole machine and lifelong maintenance.
3.24 hours technical supporrt by email.
our team
manufcturing shop

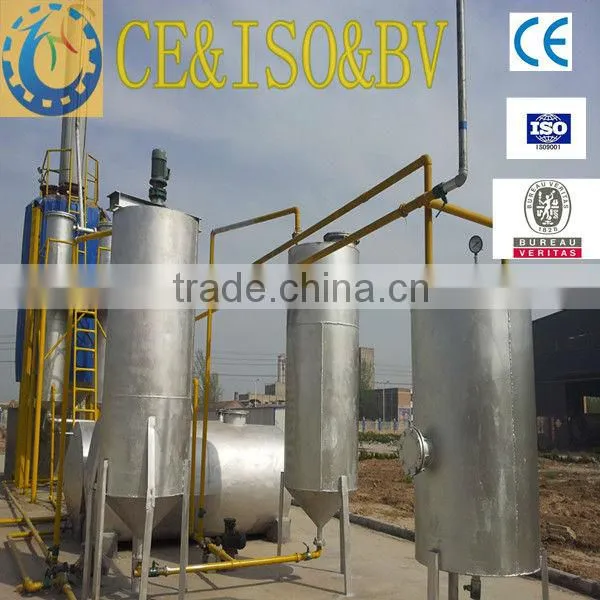

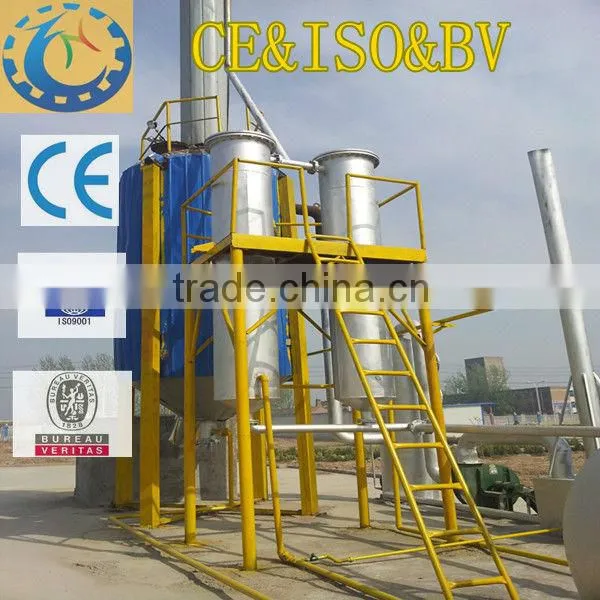

installed machine
company information
we specialize in producing waste rubber refining machine,waste plastic refining machineand waste tyre refining machine.
the technology which produce oil by recycling waste tyres,plastics and rubbers has obtained environmental protection certificate and some mational patents.
so far,our products have been sold Southeast Asia,South Asia,North America and so on.what's more,our products are proved by the clients.
