the Most Popular Used Plastic to Diesel Machine in India

FOB Price

US$ 25,000 - 45,000 / Set

1 Set(Min. Order)

Port lianyungang port
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Tire Machine
Tire Machine Type	Tire Recycling Machine	Place of Origin	Henan, China
Brand Name	lanning	Model Number	2200-6000
Voltage	380V	Power(W)	11kw
Dimension(LWH)	600022002200mm	Weight	25TONS
Certification	TUV/BV/CE/ISO9001	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

for all types of raw materials
high oil yield
energy saving
Q345R/Q245R bolier plate
ISO&CE&TUV

introduction of products

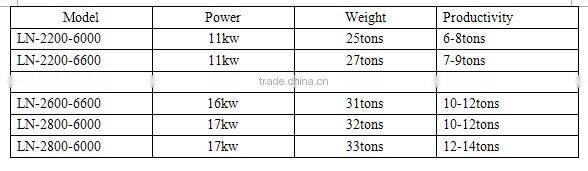

the models of the products

tyre pyrolysis machine oil output

Oil yield/day	Used tyres,scrap tyres	Big truck tyres	45%--50%
		Car tyres	40%
		Bicycles and motorcycles tyres	30%--35%
	Waste plastics	Fishing net,Safety net, farm-oriented film	45%--50%
		Convenient bags , weave bags	40%
		Off –cut of recycled paper mill	20%--30%

The function of the final products

Fuel oil: Widely used as fuel oil in industries such as steel and iron factories, ceramics or

chemical industries or hotels, restaurants etc. or used for generators to get electricity.

Carbon black: used for construction bricks with clay also can be used as fuel

Steel wires: Sold or reprocessing

Combustible gas: Can be recycled and used during process as fuel.

Steel wires: Sold or reprocessing

the main reactors

function of main parts

Reactor		1. Made by Q345R boiler plate. 2. Auto-welding both inside and outside 3. With rock wool insulation board


Auto-feeder		1. 50 ton hydraulic pressure 2. Can feed all types of materials 3. Save labor and save time


Catalyst chamber		1. improve oil yield and oil quality 2. Reduce the speed of oil gas so that it can be better cooled

Oil-water separator		1. Separate oil and water 2. Collect heavy oil 3. Water sealing design keep safety


Condenser		1. The oil gas is cooled separately by small pipes inside condenser 2. Light oil is collected here

Vacuum device		Keep machine running under normal pressure
Anti-back fire device		1. Recycle residual gas to furnace as fuel 2. Water sealing design prevent tempering

Dust removal device		Dispose of flue gas caused by using coal, wood, oil or natural gas.

work flow

Working Process:

Firstly, make reactor rotate clockwise 0.4r/min, put raw material into reactor, close feeding door.

secondly, burned the fuel material(coal,or wood,or natural gas ,oil ) in the furnace. Reactor will be slowly heated, when the temperature reach around 180 oC, oil gas will come out .

then go to cooling system and liquid to oil.

Some incondensable gas which can't cooling down will be lead to furnace through a gas pipe. It will be used to heat reactor.

This can save your energy. Only the first 2 hours use energy for heating. After the first 2 hours mainly use gas, little energy is ok. After pyrolysis, all the oil gas come out from reactor, the temperature will fall down. Then make it rotate anticlockwise, carbon black discharging begin.

Lastly,when the temperature deduce to 50 oC, worker can opened the door of reactor take steel wire out

packaging and delievery

. we will send our engineers to your factory to install the machine freely, guide your worker to operate the machine untill the production smoothly.

2.one year guarantee for the whole machine and lifelong maintenance.

3.24 hours technical supporrt by email.

our team

manufcturing shop

installed machine
