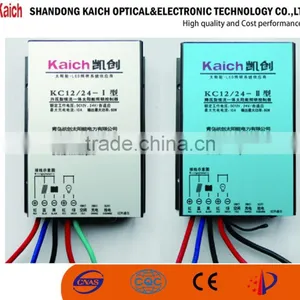

10A Automatic PMW Solar Charge Controller

Name: 10A Automatic PMW Solar Charge Controller
Brand: kaich
SKU: 126498581
Availability: InStock

US$ 20 - 33 MOQ: 100 Sets

Key Specifications

Brand Name:

kaich

Model Number:

kaich

Application:

Lighting Controller

Shandong Kaich Optical & Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Brand Name kaich

Model Number kaich

Application Lighting Controller

Rated Voltage Other, 12/24

Maximum Current 10a

10A Automatic PMW Solar Charge Controller

10A Solar Charge Controller fot solar street light :

10A/24V, over-charging/discharge protection,

Reverse-connection protection,

Switch on automatically with light sensor,

Automatic light control and time control system,

Switch off after 8/10/12 hours later.

Warranty: 2 year

Product Description

Specifications:

Type	1006	1010
Rated charging current	5A	10A
Rated load current	5A	10A
Work voltage	12V; 24V
Over load, short circuit protection	Over load protection action: 1.25times rated load current in 60-sec, 1.5 times rated load current in 5-sec; Short circuit protection action: >=3times rated load current
No load current	<=6mA
Charging circuit voltage drop	<=0.26V
Load circuit voltage drop	<=0.15V
Over voltage protection	17V, x2/24V
Work temperature	Industry stage: -35°C ~55°C
Boost charge voltage	14.6V; x2/24V(keep 30-min) (Only applied when overdischarge appears)
Direct charge voltage	14.4V; x2/24V(keep 30-min)
Float charge voltage	13.6V; x2/24V(keep working until drop to the point of charge return voltage action)
Charge return voltage	13.2V; x2/24V
Temperature compensation	-5mv/°C 2V(Boost charge, Direct charge, Float charge, charge return voltage)
Lower voltage indicate	12.0V; x2/24V
Over discharge voltage	11.1V no load-real-time modified voltag
