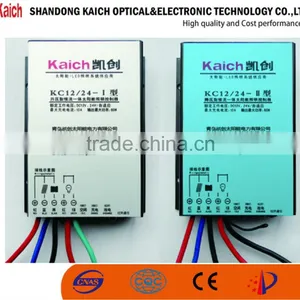

12V 170W / 24V 340W solar street light charge controller
1.Product Parameters
|
| ||||||
Rated charging/discharging current |
10A |
20A |
||||
Load circuit numbers |
Single |
Double |
Single |
Double |
||
The Max solar panel power |
12V 170Wp/24V 340Wp |
12V 340W/24V 680W |
||||
Protection grade |
IP67(Waterproof glue) |
|||||
System voltage |
12V/24V AUTO |
|||||
Free load current |
≤8mA |
|||||
Working environment temperature |
Industrial grade; -35℃ to +80℃ |
|||||
Average charged voltage of the storage battery |
14.4V |
These initial default values for 12V system can beseparately set by PC software; When the controller is in the operation, it will automatically check the voltage value of photovoltaic system. If it is judged as 24V system, these parameters will automatically increase by relevant multiples. |
||||
Over discharge protection voltage of storage battery |
11.0V |
|||||
Over discharge recovery voltage of storage battery |
12.3V |
|||||
The voltage of opening light |
5.0V |
|||||
Time control point setting |
6hours (Initial default values, setting by PC software) |
|||||

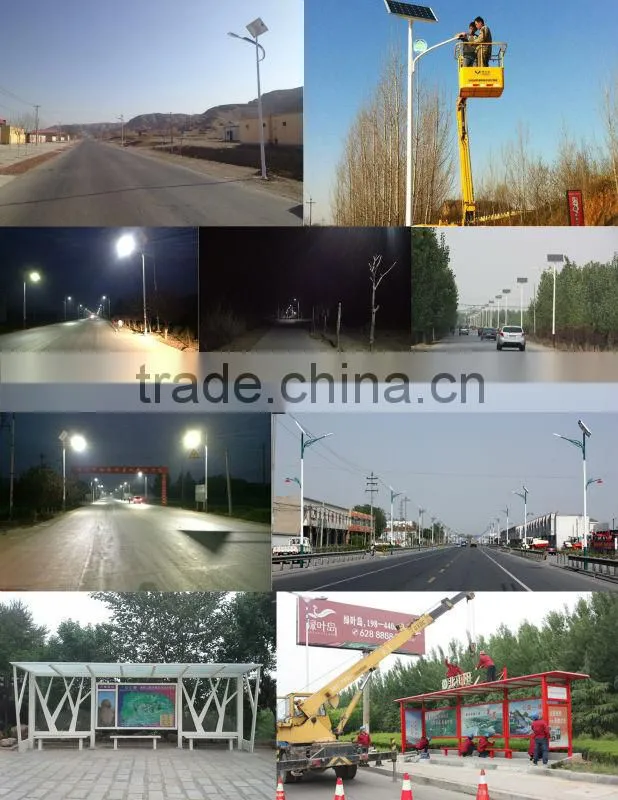

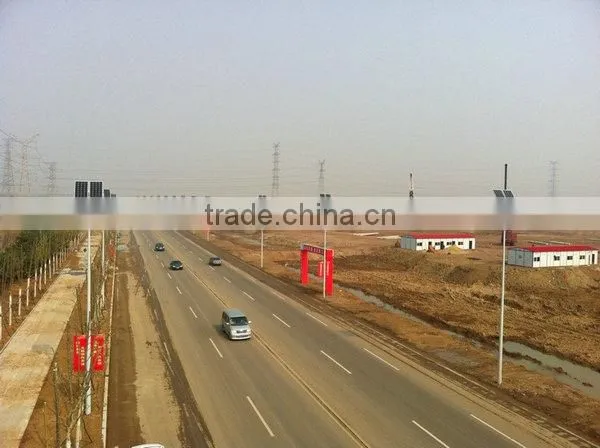

Product Application:
Electronic Protections:
·PV array short circuit
·Over discharging
·Over charging
·Load overload
·Load short circuit
·PV reverse polarity
·Battery reverse polarity
Setting instruction data
|
LED1 Display |
Mode |
LED 2 Display |
parameter |
1. |
Working with 100% power |
0 – 4. |
Working for 0-14 hours with 100% power |
2. |
Working with 75% power |
0 – 4. |
Working for 0-14 hours with 75% power |
3. |
Working with 50% power |
0 – 4. |
Working for 0-14 hours with 50% power |
4. |
Light open again in earlier morning |
0 – 4. |
Working for 0-14 hours with 50% power |
5. |
Power optional in earlier morning |
1~4 |
1 The working power is 100% 2 The working power is 75% 3 The working power is 50% 4 The working power is 25% |
6. |
Demo mode |
0 – 4 |
0 load is off 1 load works with 100% power 2 load works with 75% power 3 load works with 50% power 4 load works with 25% pow |
